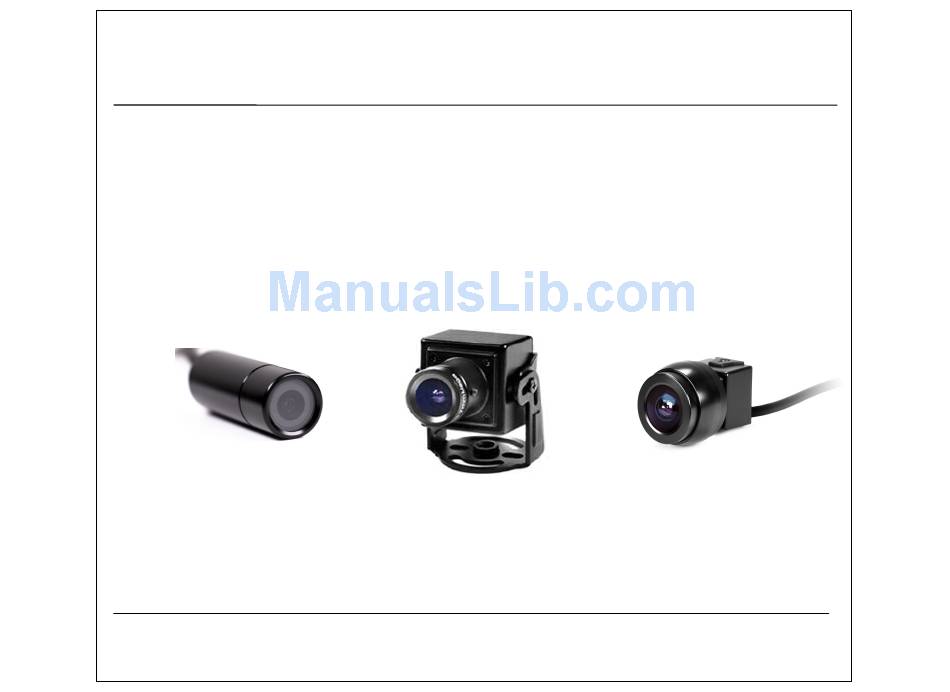

- Page 1 Marshall Electronics CV200-MB/M, CV150-MB/M, CV150-CSB/CS Operation Manual 2015.01.29 VER. Please keep this manual - 1 -...
- Page 2 CAUTION Please read complete manual before using this product. ▶ This manual is created to prevent damage to camera and protect user safety. ▶ The following symbols explain the damage or lose that can be experienced if proper operation parameters are not followed. Indicates that activity may result in WARNING injury or lose if the user violates...
- Page 3 If the camera is not working properly (for example, a strange noise, Sm ell or smoke), please stop using it and unplug power source immediatel y. Then contact Marshall Electronics for further instruction. 9. Cleaning Turn off the camera during cleaning and wipe with a dry cloth.
-
Page 4: Osd Operation
Contents 1. Features ------------------------------------------------------------- 5 2. OSD operation ----------------------------------------------------- 7 3. Precautions of Installment----------------------------------------- 11 Thank you for using this product. If you want to get a better product’s functions, please read the user m anual carefully when you use the product. Keep the User's Guide. If a problem occurs during the use, please contact our manufacturer. - Page 5 1. features ☞ This product contains a 1/3” CMOS 2.1 Megapixel Progressive Scan 3G/HD-SDI/CVBS High sensitivity color camera for Broadcasting a variety of frame-rates and resolutions. ☞ Full HD SDI: 1920 X 1080p – 25, 29.97, 30, 50, 59.94, 60fps, 1920 x 1080i – 50, 59.94, 60fps, and 1280 X 720p –...
- Page 6 2. OSD explanation 2.2 Activate “OSD MENU” a. Press “set button” to Move to the Menu setting display < MENU > b. Press “Up button” to move upper menu or “Down button” to FOCUS ADJUST move bottom menu. Selected menu is changed in yellow color. EXPOSUER BACKLIGHT c.
- Page 7 2.3 How to start “OSD SUB MENU” 1. FOCUS ADJUST : Focus Lens be controlled focus by Automatic < ON/OFF > SETUP FOCUS ADJUST ON/OFF 2. EXPOSUER MENU 1) BRIGHTNESS : Set the basic brightness of display < 0 ~ 20 Steps, >...
- Page 8 2] ZONE DISP : Set the position and size that User want to value 11] CB LEVEL : The value of the box is between yellow and blue < OFF/ON > (“0” is yellow and “20” is blue) ◀ 3] H-POS : The Select box move to the right and left <...
- Page 9 5. COLOR : < AWB/COLOR GAIN > 1) AWB 1]AUTO : auto accumulation mode OFF/ON ◀ SETUP Automatically adjust the color in environmental change of DIS ◀ RANGE MENU 2,300 K ~ 2,800 K FILTER 2] AUTOext : Outdoor and special lighting tracking mode, AUTO C White detection for special lighting such as mercury Operating RETURN◀...
- Page 10 ④ QUICK ZOOM: it cab be checking for motion detection at the same time it can be doing at Zoom In/Out. < OFF/ON > ◀ 1) ZOOM SPEED: Zoom Speed Function. < LOW/MIDDLE/HIGH > 2) TRACKING : Tracking function is trace feature. When “tracking function is On”, it is tracing something to the motion detection with Zoom in state. <...
- Page 11 3. Precaution of Installment 1. Shows Blue or Black through HD-SDI & HDMI outputs. If the SDI OUT & HDMI connection is bad or wrong. If the resolution setting is not suited for device. Or it cable is not rated high enough for HD signal and may limit transmission distance. ♦...
