Summary of Contents for Marshall Electronics CV610-U2
-

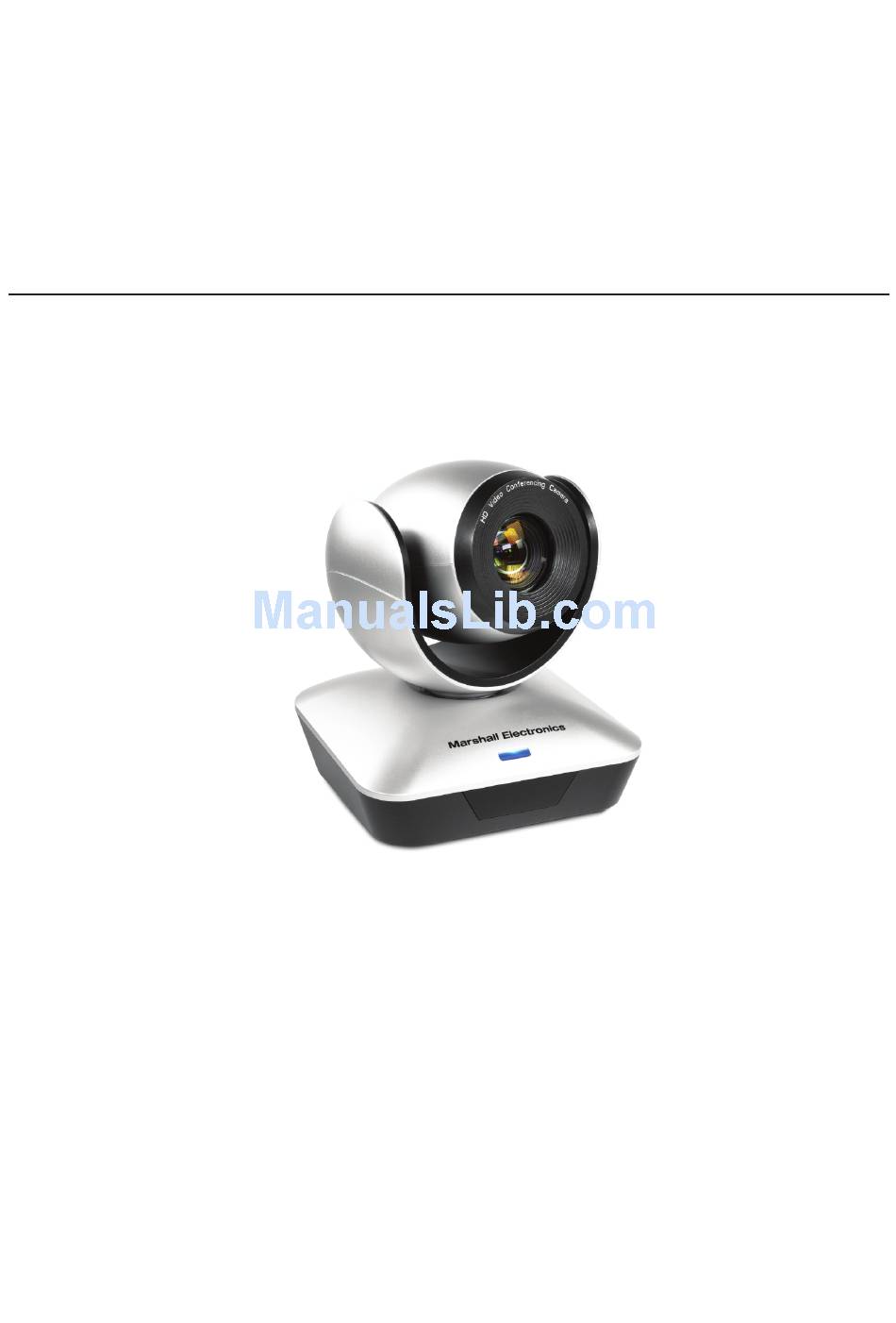

Page 1: Operating Instructions

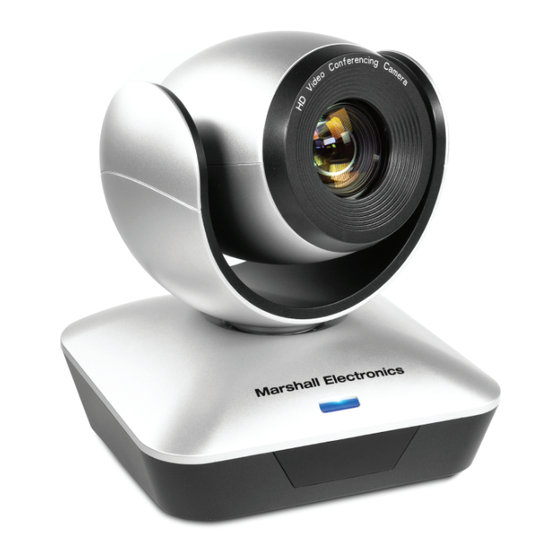

Marshall Electronics Model No. CV610-U2 Full HD Teleconference PTZ USB2.0 Camera Operating Instructions Version V1.0... -
Page 2: Table Of Contents
CV610-U2 Operation Manual Table of Contents SAFETY GUIDELINES ..................3 ACCESSORIES ....................3 QUICK START ....................4 PRODUCT HIGHLIGHTS ................5 CAMERA SPECS .................... 5 CAMERA INTERFACE ..................6 CAMERA DIMENSION..................6 IR REMOTE CONTROLLER................7 VISCA IN (RS232) PORT ................8 VISCA PROTOCOL .................. -
Page 3: Safety Guidelines
Accessories IMPORTANT SAFETY INSTRUCTIONS: • Remove lens cover before plugging camera into power source. • Before starting operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera for reference. • The camera power input range is 100-240VAC (50-60Hz), ensure the power supply input within this range before powering on. -
Page 4: Quick Start
CV610-U2 Operation Manual QUICK START 1. REMOVE Lens Cover and check all cable connections to be sure they are all firmly connected before powering on 2. Dial Switch Setting (at the bottom of the camera): Dial Switch (ARM) SW-1 SW-2... -
Page 5: Product Highlights
Camera Specifications PRODUCT HIGHLIGHTS • Compact, ergonomically designed housing perfect for small huddle rooms or locations. • Supports advanced Ambarella DSP, 1/2.8 inch 5MP image sensor, and high quality 10X 62.5 degree FOV optical lens, provides crystal clear image quality • Fast switching between different video formats: less than 1 second • 10X Optical Zoom + 12X Digital Zoom • Fast and accurate focus performance • Easy firmware upgrade - (field-upgradable) • USB2.0 high speed output • Effective RS232/485 serial control • Up to 128 presets • Compatible with the majority of videoconferencing software (UVC1.5 protocol standard) • Camera comes with accurate IR Remote Control unit • IR transfer/IR pass function: excepts signals from other codec’s and IR remote control signals CAMERA SPECIFICATIONS YUY2 1080P8, 720P15, 640*480P30 Video Format MJPG 1080P30, 720P30, 640*480P30 Video Port USB2.0 Sensor... -
Page 6: Camera Interface
CV610-U2 Operation Manual CAMERA INTERFACE 1. Camera Lens 2. Camera Base 3. IR Receiver Panel 4. Indicator Light 5. Dial Switch 6. Tripod Screw Hole 7. Installation Hole 8. RS232 (VISCA IN) Port 9. USB2.0 Port 10. DC12V Power Input 11. -
Page 7: Ir Remote Controller
IR Remote Controller IR REMOTE CONTROLLER LED Function Instruction LED Light on REMOTE (top right of controller) - explained: When LED light turns RED while pushing button - means remote is controlling CAMERA When LED light turns GREEN while pushing button - means remote controlling CODEC When LED light turns BLUE while pushing button - means remote controlling TV;... -
Page 8: Visca In (Rs232) Port
CV610-U2 Operation Manual 4. All Button Sending Mode: long press (3seconds) the Menu+ number “3” button simultaneously, the remote will enter all button sending mode. 5. Similar operation for the TV control mode learning. VISCA IN (RS232) PORT Function IR OUT VISCA IN &RS485 Connection... -
Page 9: Error Messages
VISCA Protocol Error Messages Command Packet Note Returned when the command format is different or when a Syntax Error z0 60 02 FF command with illegal command parameters is accepted Returned when a command cannot be executed due Command Not to current conditions. - Page 10 CV610-U2 Operation Manual Part 2 - Camera Control Command Command Funnation Command Packet Note Reset 8x 01 04 04 00 FF Manual Control of B Gain 8x 01 04 04 02 FF CAM_Bgain Down 8x 01 04 04 03 FF...
- Page 11 VISCA Protocol Command Funnation Command Packet Note CAM_3D Direct 8x 01 04 54 0p FF 0:OFF 1: AUTO 2~5: LEVEL Noise Reduction 50HZ 81 01 04 23 01 FF FLICK 60HZ 81 01 04 23 02 FF Freeze On 81 01 04 62 02 FF Freeze On Immediately Freeze Off 81 01 04 62 03 FF...
- Page 12 CV610-U2 Operation Manual y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode CAM_WBModeIng 8x 09 04 35 FF y0 50 03 FF OnePush mode y0 50 04 FF y0 50 05 FF...
- Page 13 VISCA Protocol VISCA PAN / TILT ABSOLUTE POSITION VALUE Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN / TILT ABSOLUTE POSITION VALUE Pan(degree/second) Tilt(degree/second) www.lcdracks.com...
- Page 14 CV610-U2 Operation Manual 60/30mode 50/25mode 1/10000 1/10000 close 1/6000 1/6000 1/4000 1/3500 1/3000 1/2500 F9.6 1/2000 1/1750 1/1500 1/1250 F6.8 1/1000 1/1000 F5.6 1/725 1/600 F4.8 1/500 1/425 1/350 1/300 F3.4 Shutter 1/250 1/215 Iris F2.8 speed 1/180 1/150 F2.4...
-
Page 15: Ir Transfer (Ir Pass)
IR Transfer (IR PASS) IR TRANSFER (IR PASS) 1. Currently the camera support NEC code format. For customization with other codes, please contact us. 2. Once the camera finish power configuration, enable the IR transfer function via sending COM command. 3. - Page 16 Marshall Electronics, Inc. Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDracks.com support@marshall-usa.com CV610-U2 Operation Manual / Version 1...
