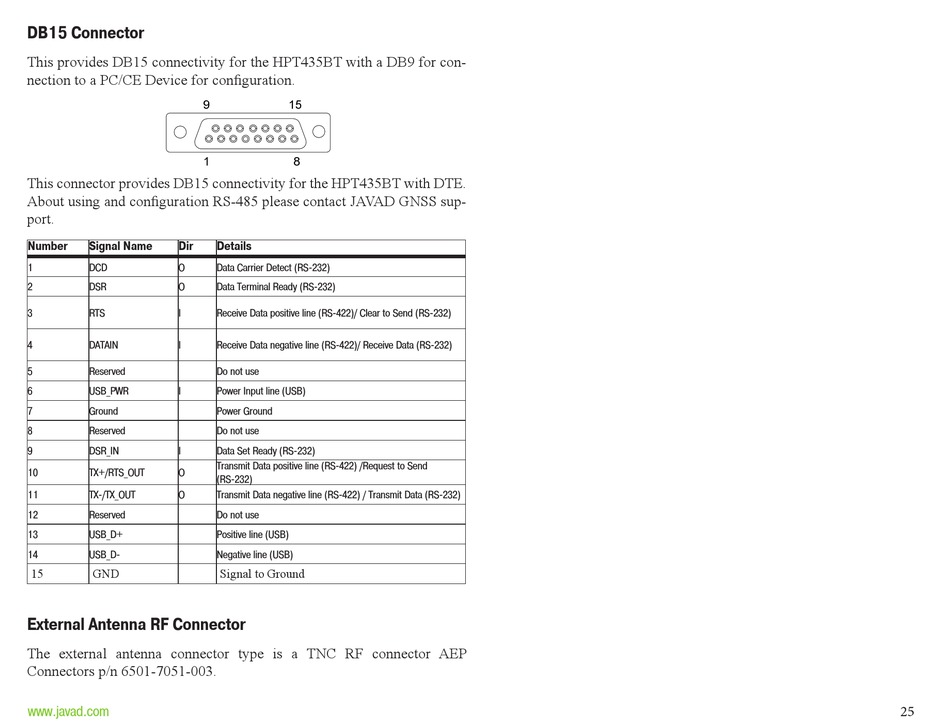

DB15 Connector

This provides DB15 connectivity for the HPT435BT with a DB9 for con-
DB15 (Fem)
nection to a PC/CE Device for configuration.
This connector provides DB15 connectivity for the HPT435BT with DTE.
About using and configuration RS-485 please contact JAVAD GNSS sup-
port.
Number Signal Name Dir
1 DCD O
2 DSR O
3 RTS I
4 DATAIN I
5 Reserved
6 USB_PWR I
7 Ground
8 Reserved
9 DSR_IN I
10 TX+/RTS_OUT O
11 TX-/TX_OUT O
12 Reserved
13 USB_D+
14 USB_D-
15 GND
External Antenna RF Connector
The external antenna connector type is a TNC RF connector AEP
Connectors p/n 6501-7051-003.
www.javad.com
Details
Data Carrier Detect (RS-232)
Data Terminal Ready (RS-232)
Receive Data positive line (RS-422)/ Clear to Send (RS-232)
Receive Data negative line (RS-422)/ Receive Data (RS-232)
Do not use
Power Input line (USB)
Power Ground
Do not use
Data Set Ready (RS-232)
Transmit Data positive line (RS-422) /Request to Send
(RS-232)
Transmit Data negative line (RS-422) / Transmit Data (RS-232)
Do not use
Positive line (USB)
Negative line (USB)
Signal to Ground
