Receiver Specifications

Parameter
Noise Figure
Receiver Sensitivity DBPSK (BER 1x10-4, 25 kHz
CS DQPSK
D8PSK D16QAM GMSK
Dynamic Range
Max. Input Signal Level
Co-channel Rejection
Adjacent Channel Selectivity

Compliance

Parameter
FCC
Industry Canada
R&TTE
24
Specification
3 dB
-116 dBm 25kHz / -117 dBm 12.5kHz
-115 dBm 25kHz / -116 dBm 12.5kHz
-110 dBm 25kHz / -111 dBm 12.5kHz
-106 dBm 25kHz / -107 dBm 12.5kHz
-113 dBm 25kHz / -114 dBm 12.5kHz
-115 to –15 dBm
-10 dBm
-8 dB for 25 kHz Channel Spacing
-12 dB for 12.5 kHz Channel Spacing
-16 dB for 6.25 kHz Channel Spacing
70 dB for 25 kHz Channel Bandwidth
60 dB for 12.5 kHz Channel Bandwidth
50 dB for 6.25 kHz Channel Bandwidth
Specification
Part 90
RSS-119
ETSI EN 300 113-2; ETSI EN 301 489-5; EN 60950-1:2006

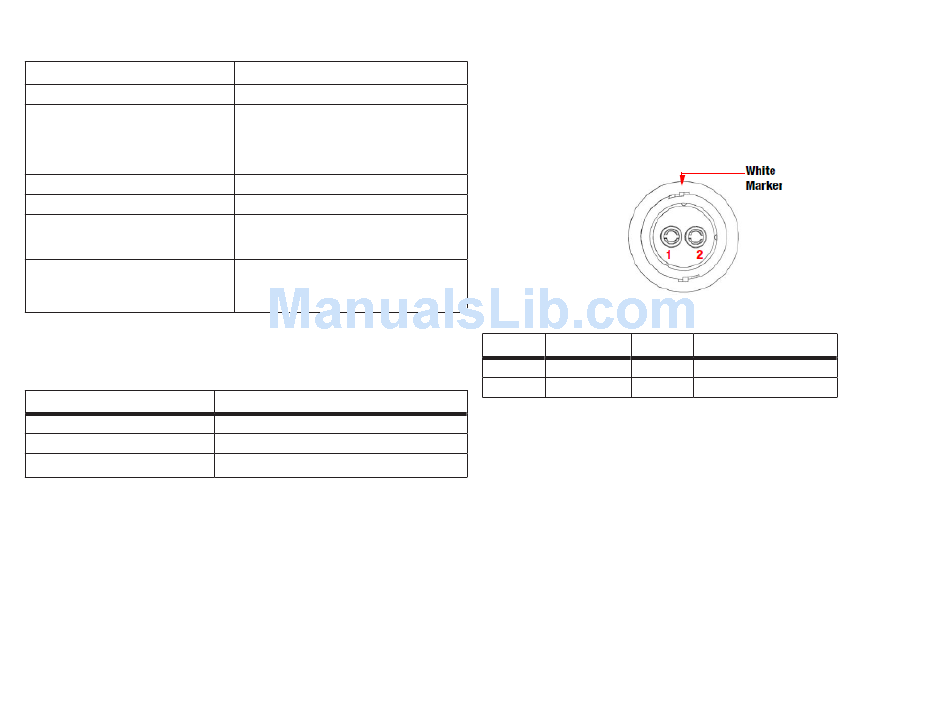

Connector Specifications

Power Connector

The table below gives specifications to power connector type 23-500153-
01 CONN, HIGH CURRENT PL-700 RECEPT ALDEN 300906.
Number Signal Name Dir
1 Power_INP P
2 Power_GND -
Details
12 volts DC input
Ground, power return
