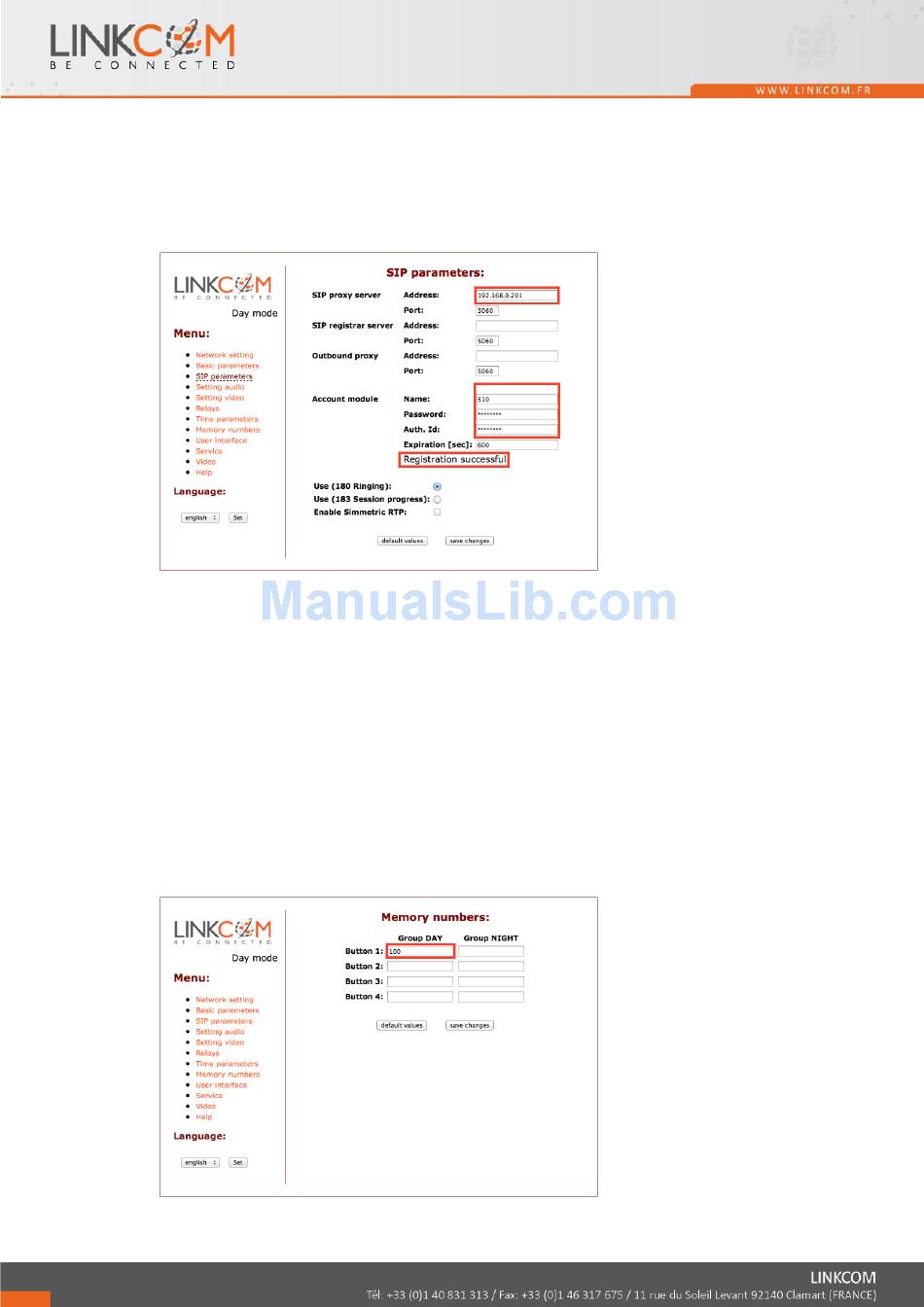

4.4. SIP setting

The Link IP iDP Cam can be set to peer to peer (P2P) mode or SIP server mode by setting the DIP
switch (page 8). In P2P mode Link IP iDP Cam calls IP address in « memory number» (page 15).
If you set the Link IP iDP Cam to SIP server mode by DIP switch, so add in menu item SIP parameters.
SIP server mode setting:
Enter the SIP parameters:
Name or IP address of IP-PBX in "SIP proxy server"
Account module :
Name : user name (or number) of SIP account
Password : password of SIP account
Auth. Id : Authentification id (or number) of SIP account
Expiration time : Interval of sending requests for re-registration in SIP server
Use 180 Ringing or 183 Session progress : preanswer signaling. Usually works and not need to
change it.
Enable Symmetric RTP: enable in case of voice flow only in one direction. Usually needed by Cisco
devices.

4.5. Call button

To configure the numbers that will be called when pressing the buttons, go to the "Memory numbers"
menu:
p.8 | 23
