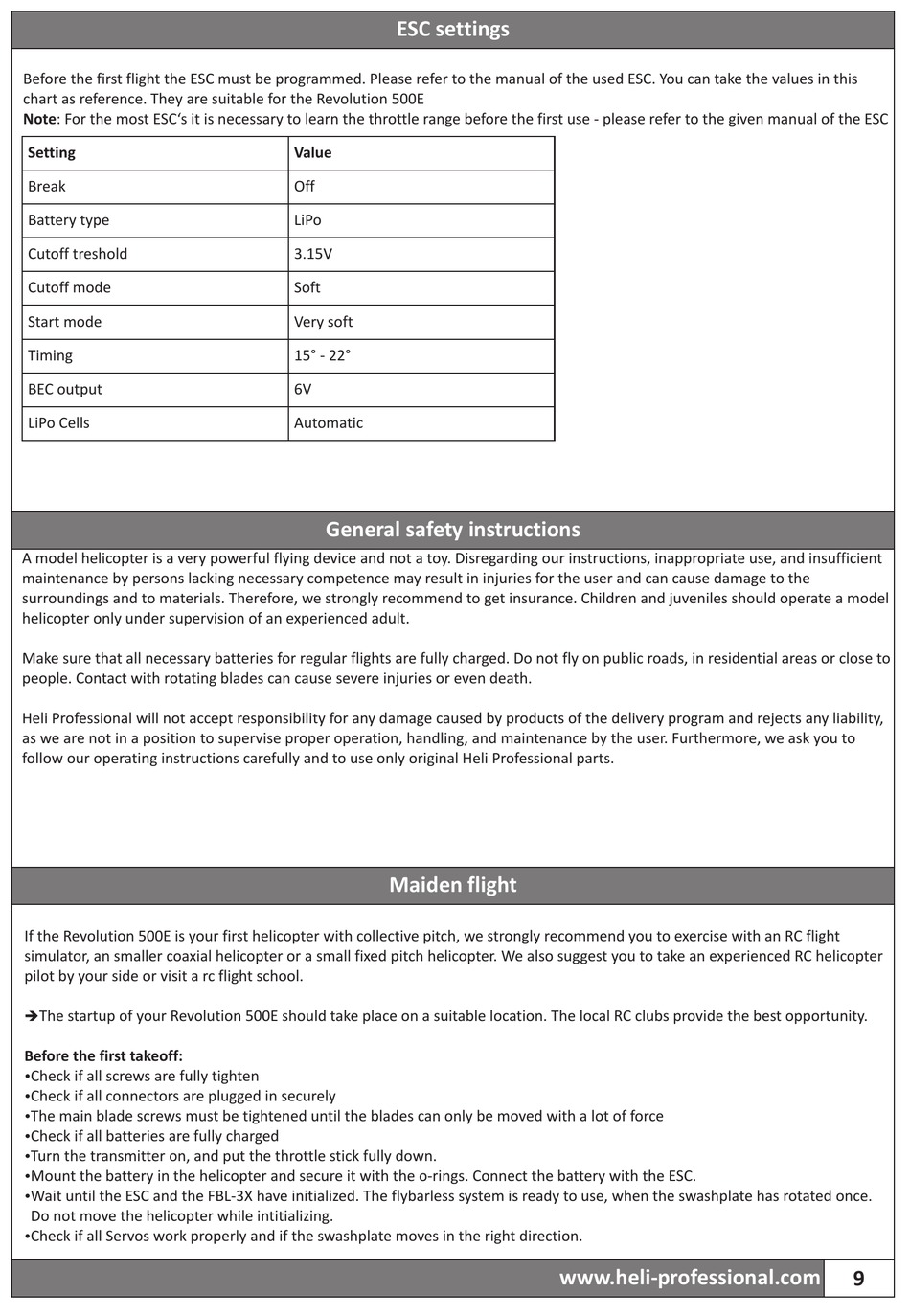

Esc Settings; General Safety Instructions - Heli-Professional Revolution 500E Additional Technical Manual

Before the first flight the ESC must be programmed. Please refer to the manual of the used ESC. You can take the values in this
chart as reference. They are suitable for the Revolution 500E
Note: For the most ESC's it is necessary to learn the throttle range before the first use - please refer to the given manual of the ESC
Setting
Break
Battery type
Cutoff treshold
Cutoff mode
Start mode
Timing
BEC output
LiPo Cells
A model helicopter is a very powerful flying device and not a toy. Disregarding our instructions, inappropriate use, and insufficient
maintenance by persons lacking necessary competence may result in injuries for the user and can cause damage to the
surroundings and to materials. Therefore, we strongly recommend to get insurance. Children and juveniles should operate a model
helicopter only under supervision of an experienced adult.
Make sure that all necessary batteries for regular flights are fully charged. Do not fly on public roads, in residential areas or close to
people. Contact with rotating blades can cause severe injuries or even death.
Heli Professional will not accept responsibility for any damage caused by products of the delivery program and rejects any liability,
as we are not in a position to supervise proper operation, handling, and maintenance by the user. Furthermore, we ask you to
follow our operating instructions carefully and to use only original Heli Professional parts.
If the Revolution 500E is your first helicopter with collective pitch, we strongly recommend you to exercise with an RC flight
simulator, an smaller coaxial helicopter or a small fixed pitch helicopter. We also suggest you to take an experienced RC helicopter
pilot by your side or visit a rc flight school.
The startup of your Revolution 500E should take place on a suitable location. The local RC clubs provide the best opportunity.
è
Before the first takeoff:
Check if all screws are fully tighten
Ÿ
Check if all connectors are plugged in securely
Ÿ
The main blade screws must be tightened until the blades can only be moved with a lot of force
Ÿ
Check if all batteries are fully charged
Ÿ
Turn the transmitter on, and put the throttle stick fully down.
Ÿ
Mount the battery in the helicopter and secure it with the o-rings. Connect the battery with the ESC.
Ÿ
Wait until the ESC and the FBL-3X have initialized. The flybarless system is ready to use, when the swashplate has rotated once.
Ÿ
Do not move the helicopter while intitializing.
Check if all Servos work properly and if the swashplate moves in the right direction.
Ÿ

ESC settings

Value
Off
LiPo
3.15V
Soft
Very soft
15° - 22°
6V
Automatic
Regler Einstellungen

General safety instructions

Maiden flight
