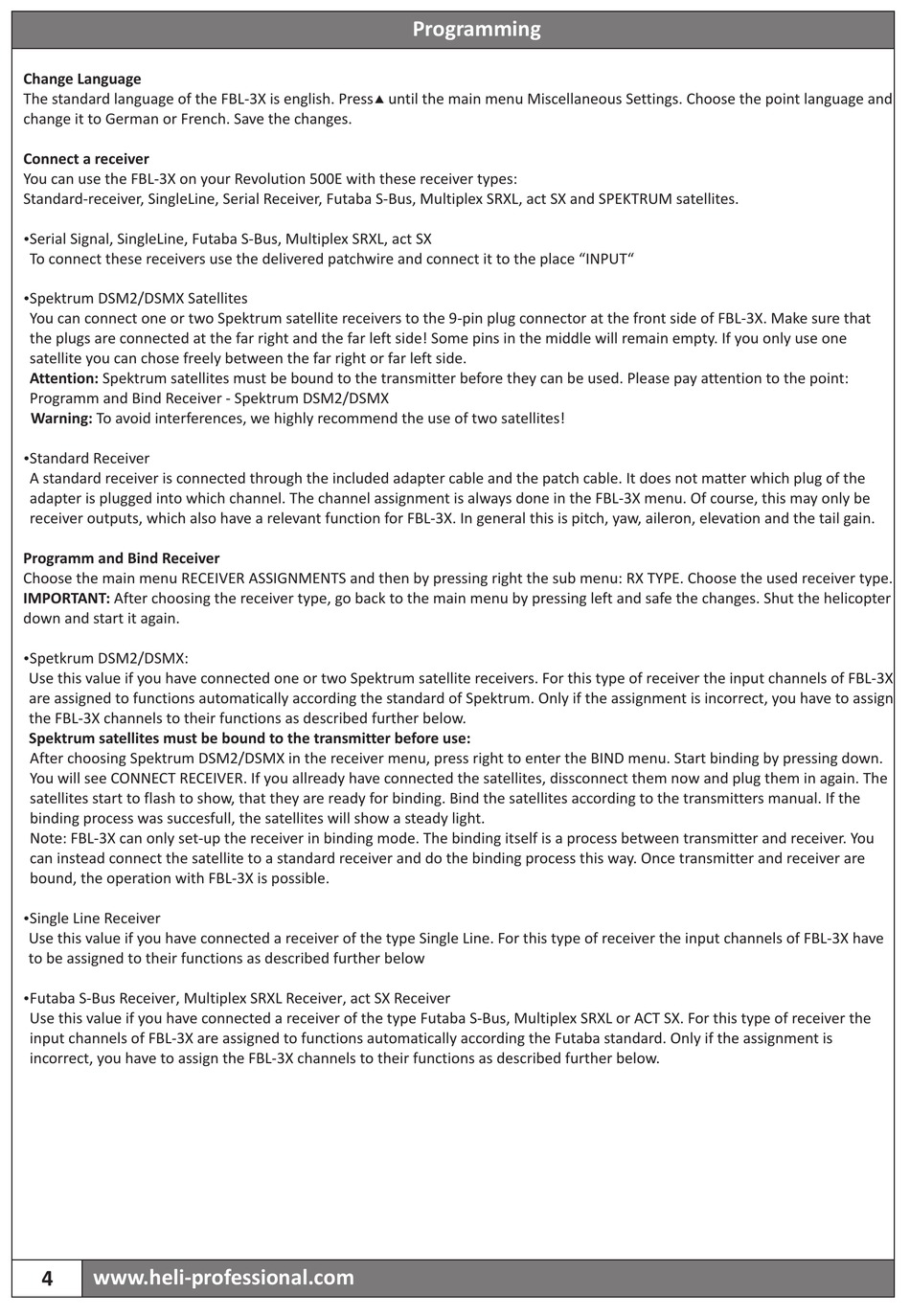

Programming - Heli-Professional Revolution 500E Additional Technical Manual

Change Language
The standard language of the FBL-3X is english. Press until the main menu Miscellaneous Settings. Choose the point language and
change it to German or French. Save the changes.
Connect a receiver
You can use the FBL-3X on your Revolution 500E with these receiver types:
Standard-receiver, SingleLine, Serial Receiver, Futaba S-Bus, Multiplex SRXL, act SX and SPEKTRUM satellites.
Serial Signal, SingleLine, Futaba S-Bus, Multiplex SRXL, act SX
Ÿ
To connect these receivers use the delivered patchwire and connect it to the place "INPUT"
Spektrum DSM2/DSMX Satellites
Ÿ
You can connect one or two Spektrum satellite receivers to the 9-pin plug connector at the front side of FBL-3X. Make sure that
the plugs are connected at the far right and the far left side! Some pins in the middle will remain empty. If you only use one
satellite you can chose freely between the far right or far left side.
Attention: Spektrum satellites must be bound to the transmitter before they can be used. Please pay attention to the point:
Programm and Bind Receiver - Spektrum DSM2/DSMX
Warning: To avoid interferences, we highly recommend the use of two satellites!
Standard Receiver
Ÿ
A standard receiver is connected through the included adapter cable and the patch cable. It does not matter which plug of the
adapter is plugged into which channel. The channel assignment is always done in the FBL-3X menu. Of course, this may only be
receiver outputs, which also have a relevant function for FBL-3X. In general this is pitch, yaw, aileron, elevation and the tail gain.
Programm and Bind Receiver
Choose the main menu RECEIVER ASSIGNMENTS and then by pressing right the sub menu: RX TYPE. Choose the used receiver type.
IMPORTANT: After choosing the receiver type, go back to the main menu by pressing left and safe the changes. Shut the helicopter
down and start it again.
Spetkrum DSM2/DSMX:
Ÿ
Use this value if you have connected one or two Spektrum satellite receivers. For this type of receiver the input channels of FBL-3X
are assigned to functions automatically according the standard of Spektrum. Only if the assignment is incorrect, you have to assign
the FBL-3X channels to their functions as described further below.
Spektrum satellites must be bound to the transmitter before use:
After choosing Spektrum DSM2/DSMX in the receiver menu, press right to enter the BIND menu. Start binding by pressing down.
You will see CONNECT RECEIVER. If you allready have connected the satellites, dissconnect them now and plug them in again. The
satellites start to flash to show, that they are ready for binding. Bind the satellites according to the transmitters manual. If the
binding process was succesfull, the satellites will show a steady light.
Note: FBL-3X can only set-up the receiver in binding mode. The binding itself is a process between transmitter and receiver. You
can instead connect the satellite to a standard receiver and do the binding process this way. Once transmitter and receiver are
bound, the operation with FBL-3X is possible.
Single Line Receiver
Ÿ
Use this value if you have connected a receiver of the type Single Line. For this type of receiver the input channels of FBL-3X have
to be assigned to their functions as described further below
Futaba S-Bus Receiver, Multiplex SRXL Receiver, act SX Receiver
Ÿ
Use this value if you have connected a receiver of the type Futaba S-Bus, Multiplex SRXL or ACT SX. For this type of receiver the
input channels of FBL-3X are assigned to functions automatically according the Futaba standard. Only if the assignment is
incorrect, you have to assign the FBL-3X channels to their functions as described further below.
www.heli-professional.com
4

Programming
