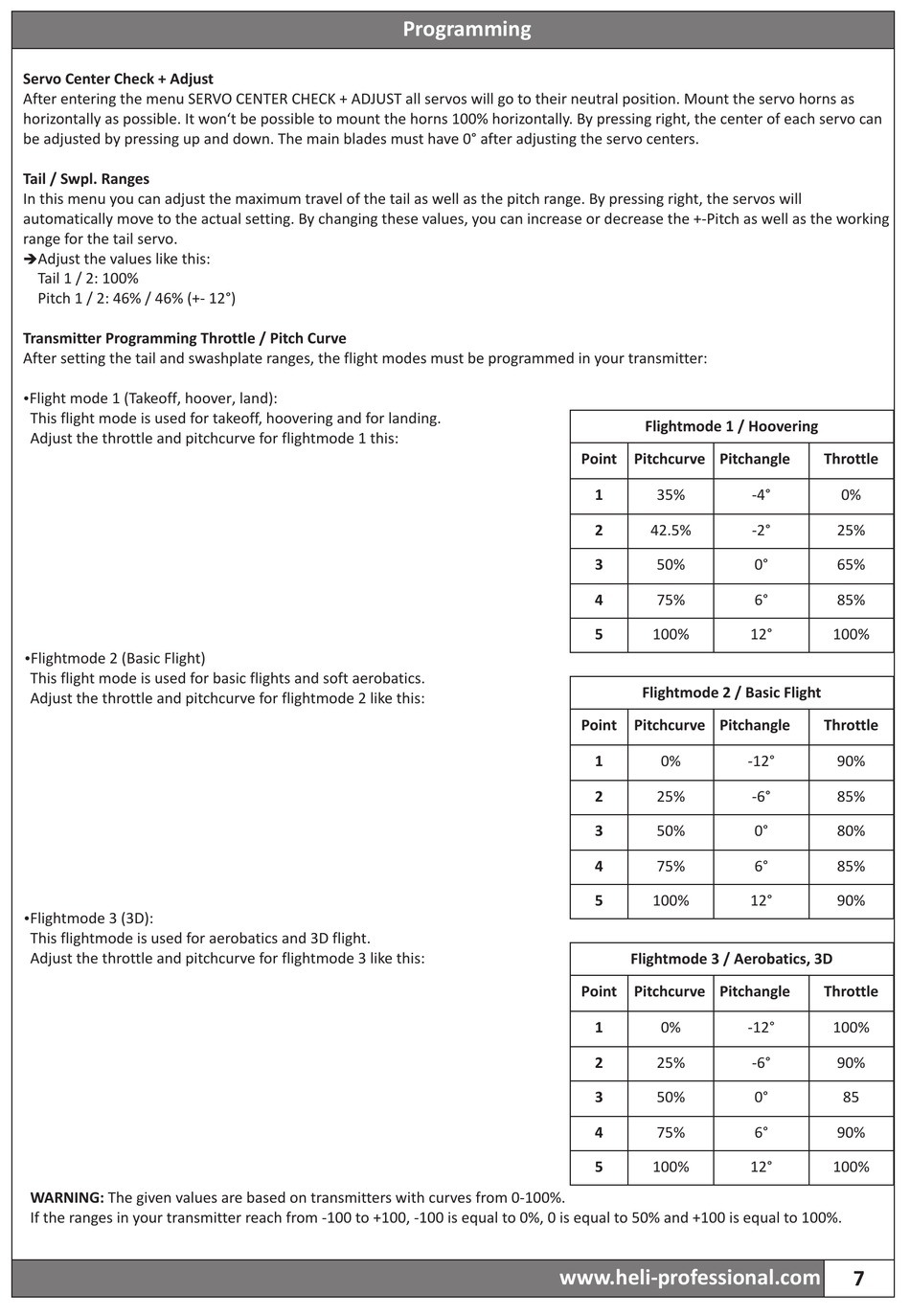

Heli-Professional Revolution 500E Additional Technical Manual page 7

Servo Center Check + Adjust
After entering the menu SERVO CENTER CHECK + ADJUST all servos will go to their neutral position. Mount the servo horns as
horizontally as possible. It won't be possible to mount the horns 100% horizontally. By pressing right, the center of each servo can
be adjusted by pressing up and down. The main blades must have 0° after adjusting the servo centers.
Tail / Swpl. Ranges
In this menu you can adjust the maximum travel of the tail as well as the pitch range. By pressing right, the servos will
automatically move to the actual setting. By changing these values, you can increase or decrease the +-Pitch as well as the working
range for the tail servo.
Adjust the values like this:
è
Tail 1 / 2: 100%
Pitch 1 / 2: 46% / 46% (+- 12°)
Transmitter Programming Throttle / Pitch Curve
After setting the tail and swashplate ranges, the flight modes must be programmed in your transmitter:
Flight mode 1 (Takeoff, hoover, land):
Ÿ
This flight mode is used for takeoff, hoovering and for landing.
Adjust the throttle and pitchcurve for flightmode 1 this:
Flightmode 2 (Basic Flight)
Ÿ
This flight mode is used for basic flights and soft aerobatics.
Adjust the throttle and pitchcurve for flightmode 2 like this:
Flightmode 3 (3D):
Ÿ
This flightmode is used for aerobatics and 3D flight.
Adjust the throttle and pitchcurve for flightmode 3 like this:
WARNING: The given values are based on transmitters with curves from 0-100%.
If the ranges in your transmitter reach from -100 to +100, -100 is equal to 0%, 0 is equal to 50% and +100 is equal to 100%.
Programming
www.heli-professional.com
Flightmode 1 / Hoovering
Point Pitchcurve Pitchangle
1 35% -4°
2 42.5% -2°
3 50%
4 75%
5 100% 12°
Flightmode 2 / Basic Flight
Point Pitchcurve Pitchangle
1 0% -12°
2 25% -6°
3 50%
4 75%
5 100% 12°
Flightmode 3 / Aerobatics, 3D
Point Pitchcurve Pitchangle
1 0% -12°
2 25% -6°
3 50%
4 75%
5 100% 12°
Throttle
0%
25%
0° 65%
6° 85%
100%
Throttle
90%
85%
0° 80%
6° 85%
90%
Throttle
100%
90%
0° 85
6° 90%
100%
