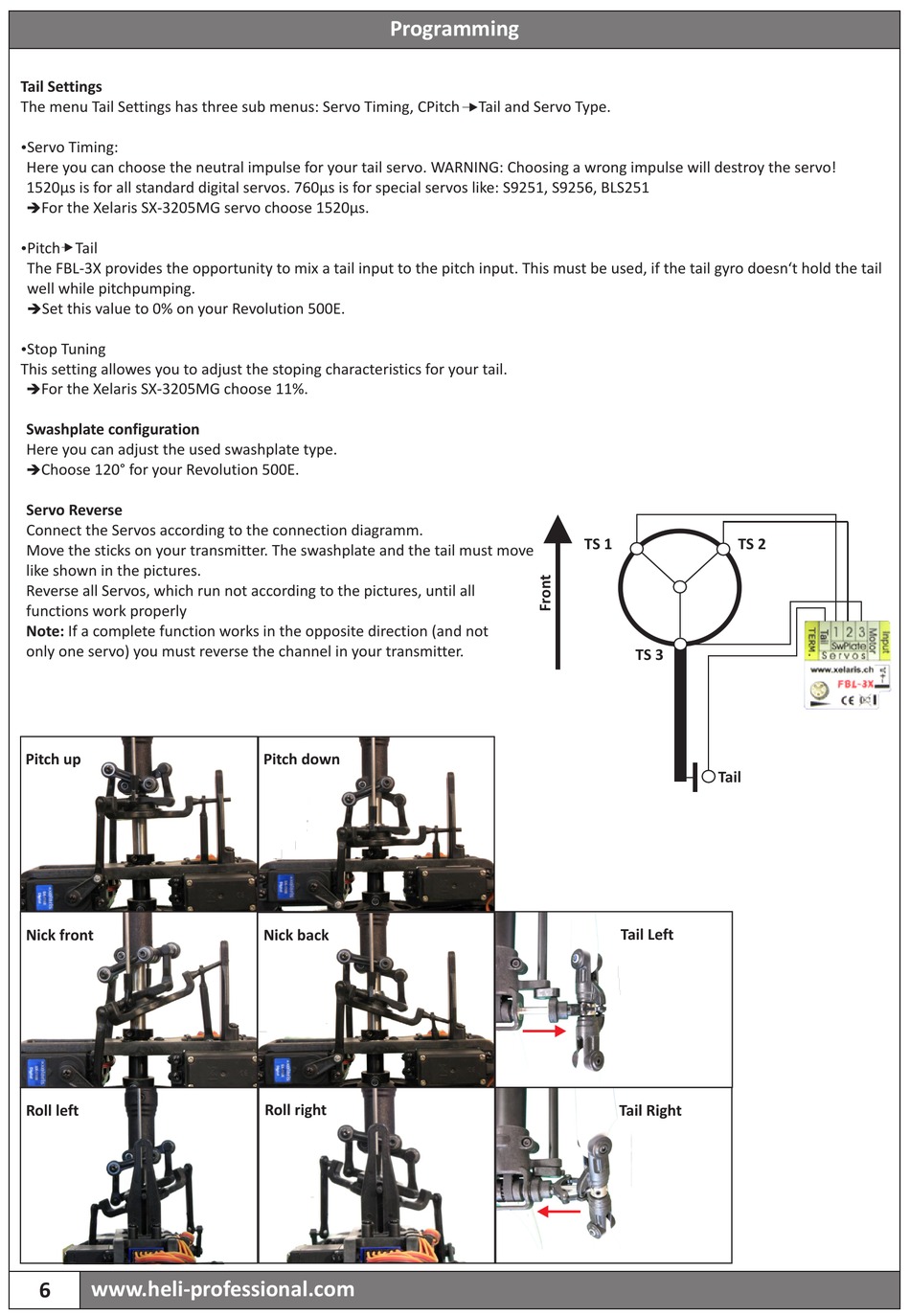

Heli-Professional Revolution 500E Additional Technical Manual page 6

Tail Settings
The menu Tail Settings has three sub menus: Servo Timing, CPitch
Servo Timing:
Ÿ
Here you can choose the neutral impulse for your tail servo. WARNING: Choosing a wrong impulse will destroy the servo!
1520µs is for all standard digital servos. 760µs is for special servos like: S9251, S9256, BLS251
For the Xelaris SX-3205MG servo choose 1520µs.
è
Pitch Tail
Ÿ
The FBL-3X provides the opportunity to mix a tail input to the pitch input. This must be used, if the tail gyro doesn't hold the tail
well while pitchpumping.
Set this value to 0% on your Revolution 500E.
è
Stop Tuning
Ÿ
This setting allowes you to adjust the stoping characteristics for your tail.
For the Xelaris SX-3205MG choose 11%.
è
Swashplate configuration
Here you can adjust the used swashplate type.
Choose 120° for your Revolution 500E.
è
Servo Reverse
Connect the Servos according to the connection diagramm.
Move the sticks on your transmitter. The swashplate and the tail must move
like shown in the pictures.
Reverse all Servos, which run not according to the pictures, until all
functions work properly
Note: If a complete function works in the opposite direction (and not
only one servo) you must reverse the channel in your transmitter.
Pitch up
Nick front
Roll left
www.heli-professional.com
6
Programming
Pitch down
Nick back
Roll right
Tail and Servo Type.
TS 1
TS 3
Tail Left
Tail Right
TS 2
Tail
