Danfoss Series 90 Technical Information page 73

Technical Information

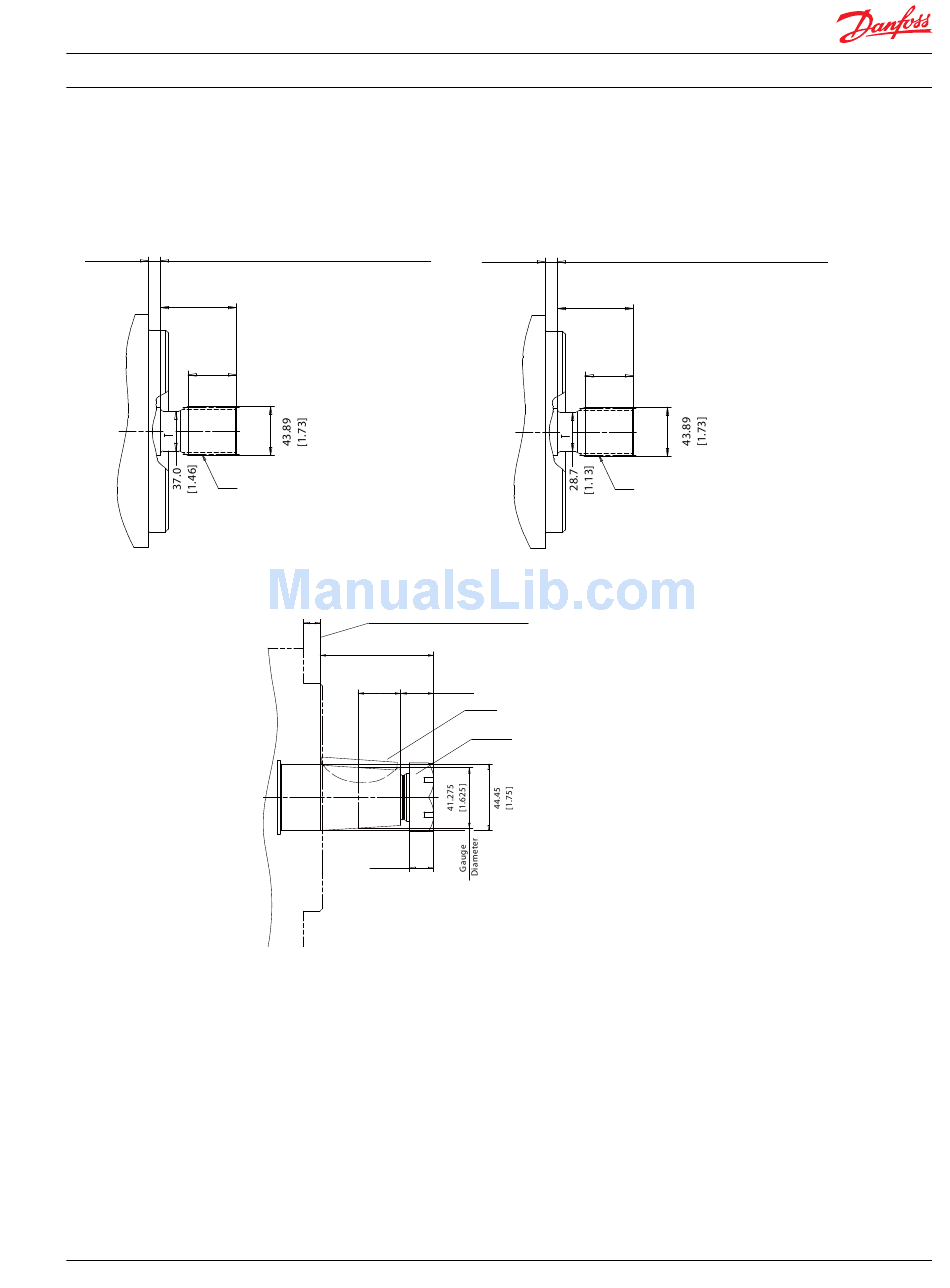

Installation Drawings
Shaft dimensions
7.9
Coupling must not protude beyond this surface
[0.311]
66.7
[2.625]
*
43.89
[1.73]
42.865
[1.6875]
Series 90 Axial Piston Pumps
Option C8 ISO 3019-1
(27 tooth)
Shaft spline data:
Pitch diameter = 42.862 [1.687]
Pressure angle = 30°
Number of teeth = 27
Pitch = 16/32
ANSI B92.1
Fillet root side fit
* Minimum active spline length
for the specified torque ratings
Option T4
11.05
Cone flange must not protude beyond this surface
[0.44]
75.95
[2.99]
28.45
[1.12]
15.88
[0.63]
520L0603 • Rev 0804 • March 2016
7.9
Coupling must not protude beyond this surface
[0.311]
66.7
[2.625]
*
31.2
[1.23]
41.275
[1.625]
22.1
11.06 x 63.5
[0.87]
[0.4355 x 2.75]
Woodruff key
Wrench size 46 mm
Refer to (torque - tapered shafts) table
page 42 for torque information
P108 510E
Option F1 ISO 3019-1
(13 tooth)
Shaft spline data:
Pitch diameter = 41.275 [1.625]
Pressure angle = 30°
Number of teeth = 13
Pitch = 8/16
ANSI B92.1
Fillet root side fit
P108 506E
73
