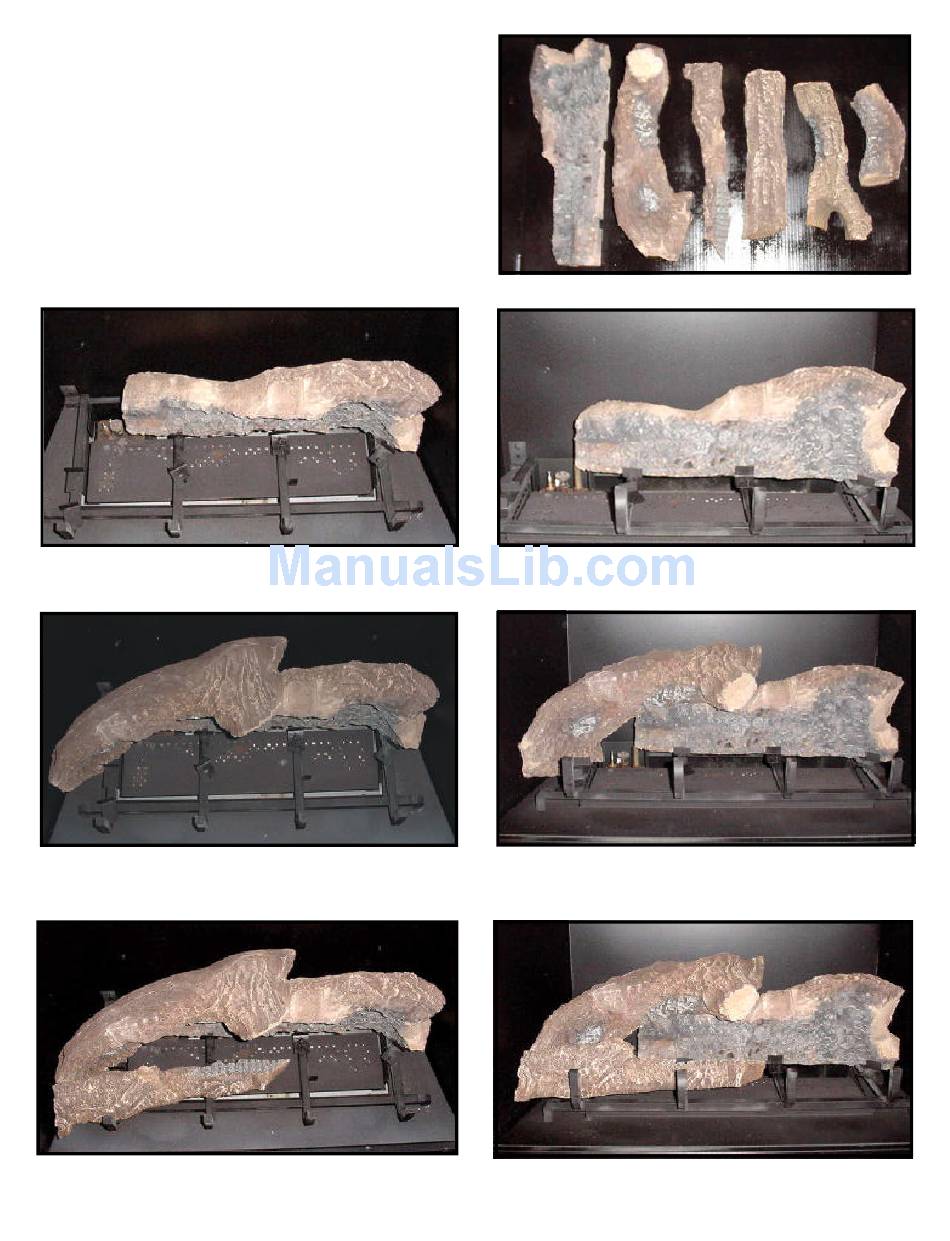

1.7 LOG PLACEMENT INSTRUCTIONS
Log Assembly: 347-700A
CAUTION: Logs are fragile! Carefully remove the logs
from the packaging.
LOG #1 (SRV550-715):
fit on the right three grate bars. Push log #1 towards the rear locating tabs.
2
LOG #2 (SRV550-714):
the left edge of log #2 sits on the left grate bar behind its locating tab.
3
LOG #3 (SRV506-717):
bottom slot over the left tab. Push the right side of log #3 back against the center tab.
1
Place log #1 onto the log grate so that the notches in the bottom of the log
Place log #2 so that its right edge sits on log #1 as shown. The notch on
Position log #3 between log #2 and the front of the grate by locating its
1 2
2
3
