Vega VEGASWING 61 Operating Instructions Manual

Level sensor
Hide thumbs Also See for VEGASWING 61:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

Operating Instructions

VEGASWING 61
- transistor (NPN/PNP)
Vibration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGASWING 61 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGASWING 61

Summary of Contents for Vega VEGASWING 61

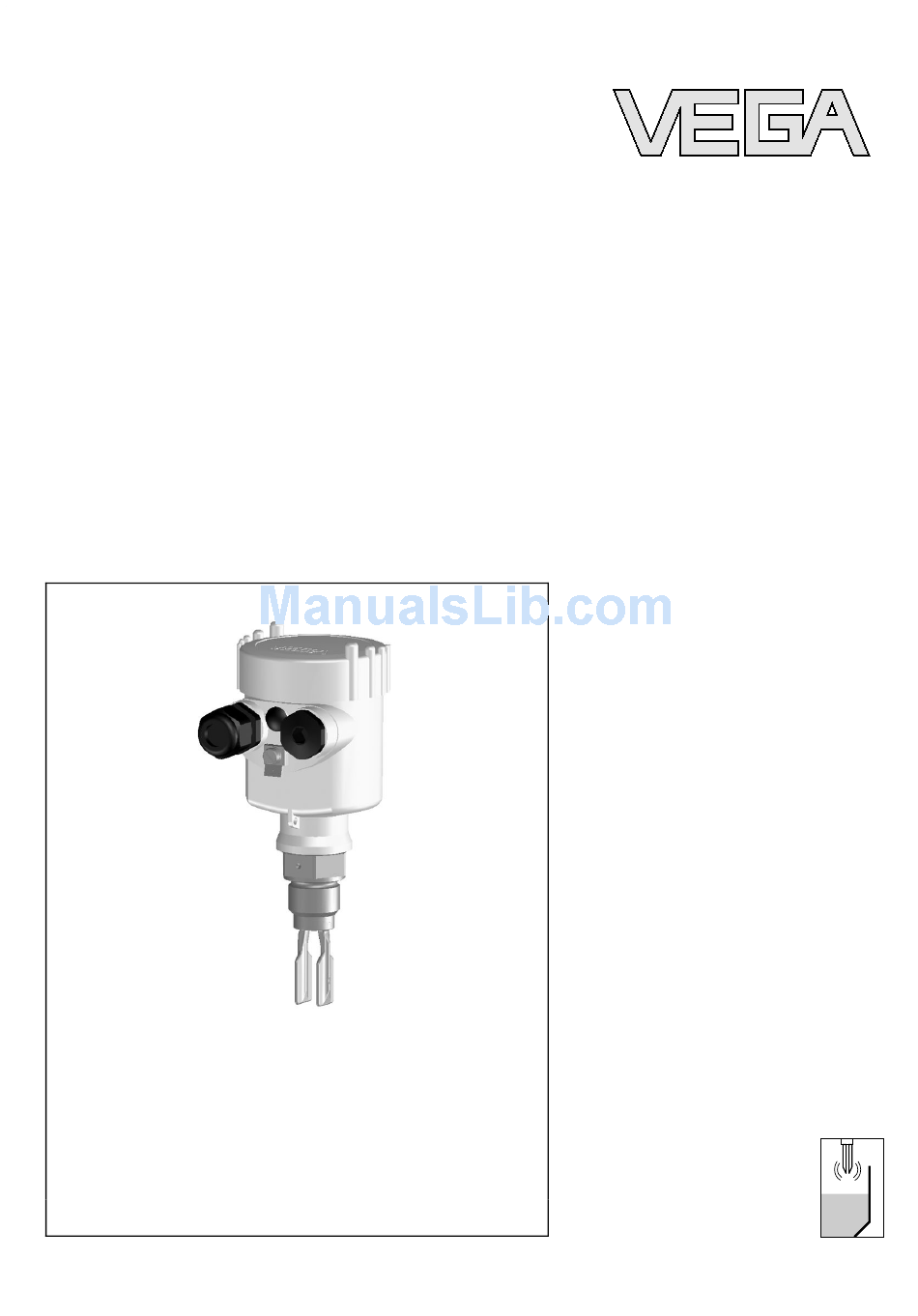

  • Page 1: Operating Instructions

    Operating Instructions VEGASWING 61 - transistor (NPN/PNP) Vibration...

  • Page 2: Table Of Contents

    Fault rectification ..... . . Instrument repair ..... . . VEGASWING 61 - - transistor (NPN/PNP)
  • Page 3 Tip: To ensure reliable setup and operation of your VEGASWING 61, we offer accessories and replacement parts. The associated documents are: Operating instructions manual "Remote housing - VEGA- SWING" Operating instructions manual "Oscillator VEGASWING series 60" VEGASWING 61 - - transistor (NPN/PNP)

  • Page 4: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGASWING 61 - - transistor (NPN/PNP)

  • Page 5: For Your Safety

    2.5 CE conformity VEGASWING 61 is in CE conformity with EMC (89/336/EWG), fulfils NAMUR recommendation NE 21 and is in CE conformity with LVD (73/23/EWG). Conformity has been judged according to the following...

  • Page 6: Sil Conformity

    2.8 Manufacturer declaration In conformity with DIN EN 60079-14/2004, para. 5.2.3, point c1, VEGASWING 61 is suitable for use in zone 2. The operator must use the instrument as it was intended to be used and follow the specifications of the following documents:...

  • Page 7: Environmental Instructions

    The environment man- agement system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Packaging, transport and storage" Chapter "Disposal" VEGASWING 61 - - transistor (NPN/PNP)

  • Page 8: Product Description

    Housing cover Housing with electronics Process fitting 3.2 Principle of operation VEGASWING 61 is a level sensor with tuning fork for level Area of application detection. It is designed for industrial use in all areas of process technology and can be used in liquids.

  • Page 9: Operation

    Product description Typical applications are overfill and dry run protection. With a tuning fork of only 40 mm length, VEGASWING 61 can be also mounted, e.g. in pipelines from DN 25. The small tuning fork allows use in vessels, tanks and pipes. Thanks to its simple and robust measuring system, VEGASWING 61 is virtually unaffected by the chemical and physical properties of the...

  • Page 10: Storage And Transport

    PE foam or PE foil is also used. Dispose of the packaging material via specialised recycling companies. Storage and transport temperature see "Supplement - Storage and transport tem- perature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGASWING 61 - - transistor (NPN/PNP)

  • Page 11: Mounting

    Mounting 4 Mounting 4.1 General instructions In general, VEGASWING 61 can be mounted in any position. Switching point The instrument must be mounted in such a way that the tuning fork is at the height of the requested switching point.
  • Page 12 Use the recommended cables (see chapter "Connecting to Moisture power supply") and tighten the cable gland. You can give your VEGASWING 61 additional protection against moisture penetration by leading the connection cable downward in front of the cable entry. Rain and condensation...
  • Page 13 (e.g. by cleaning processes) or on cooled or heated vessels. Fig. 6: Measures against moisture penetration Do not hold VEGASWING 61 on the tuning fork. Particularly Transport with flange or tube versions, the tuning fork can be damaged just by the weight of the instrument.

  • Page 14: Mounting Instructions

    VEGASWING 61 has a defined thread starting point. This Welded socket means that every VEGASWING 61 is in the same fork position after being screwed in. Remove therefore the supplied seal from the thread of VEGASWING 61. This seal is not required when using a welded socket with O-ring in front.
  • Page 15 filling openings, agitators, etc. can occur. To minimise flow resistance caused by the tuning fork, Flows VEGASWING 61 should be mounted in such a way that the surfaces of the blades are parallel to the product movement. VEGASWING 61 - - transistor (NPN/PNP)

  • Page 16: Connecting To Power Supply

    Select power supply Take note of the general installation regulations. As a rule, connect VEGASWING 61 to vessel ground (PA), or in case of plastic vessels, to the next ground potential. On the side of the instrument housing there is a ground terminal between the cable entries.

  • Page 17: Wiring Plan, Single Chamber Housing

    Fig. 8: Material versions, single chamber housing Plastic (not with EEx d) Aluminium Stainless steel (not with EEx d) Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar (not with EEx d) VEGASWING 61 - - transistor (NPN/PNP)
  • Page 18 DIL switch for mode adjustment DIL switch for switching point adaptation Ground terminal Screwed terminals We recommend connecting VEGASWING 61 in such a way Wiring plan that the switching circuit is open when there is a level signal, line break or failure (safe condition).

  • Page 19: Wiring Plan - Version Ip 66/Ip 68, 1 Bar

    5.4 Wiring plan - version IP 66/IP 68, 1 bar Wire assignment, connection cable Fig. 12: Wire assignment connection cable. The numbers of the wires correspond to the terminals of the instrument. brown (+) voltage supply White Yellow blue (-) voltage supply Screen VEGASWING 61 - - transistor (NPN/PNP)

  • Page 20: Set Up

    DIL switch for sensitivity adjustment (3) Note: For test purposes, immerse the tuning fork of VEGASWING 61 always in liquids. Do not test the function of VEGASWING 61 with the hand. This can damage the sensor. 6.2 Adjustment elements Fig. 13: Oscillator SWE60T - Transistor output...

  • Page 21: Function Chart

    Level Switching status Control lamp Mode A transistor conducts Overflow protection Green Mode A transistor blocks Overflow protection Mode B transistor conducts Dry run protection Green VEGASWING 61 - - transistor (NPN/PNP)
  • Page 22 Set up Level Switching status Control lamp Mode B transistor blocks Dry run protection Failure of the sup- transistor blocks ply voltage (mode A/B) Failure transistor blocks flashes red VEGASWING 61 - - transistor (NPN/PNP)

  • Page 23: Maintenance And Fault Rectification

    Maintenance and fault rectification 7 Maintenance and fault rectification 7.1 Maintenance When used as directed in normal operation, VEGASWING 61 is completely maintenance free. 7.2 Fault rectification VEGASWING 61 offers maximum reliability. Nevertheless Causes of malfunction faults can occur during operation. These may be caused by the following, e.g.:...

  • Page 24: Instrument Repair

    If a repair is necessary, please proceed as follows: You can download a return form (23 KB) from our homepage in the Internet www.vega.com under: "Downloads - Forms and Certificates - Repair form". By doing this you help us carry out the repair quickly and without having to call back for needed information.

  • Page 25: Dismounting

    Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you cannot dispose of the instrument properly, please contact us about disposal methods or return. VEGASWING 61 - - transistor (NPN/PNP)

  • Page 26: Supplement

    - Plastic housing 1170 g (41 oz) - Aluminium housing 1530 g (54 oz) - Stainless steel housing Layer thickness approx. 0.5 mm (0.02 in) - ECTFE approx. 0.5 mm (0.02 in) - PFA VEGASWING 61 - - transistor (NPN/PNP)
  • Page 27 860 … 1060 mbar/86 … 106 kPa - Air pressure (12.5 … 15.4 psi) - Product temperature +18 … +30 °C (+64 … +86 °F) 1 g/cm³ (0.036 lbs/in³) (water) - Product density 1 mPa s - Product viscosity VEGASWING 61 - - transistor (NPN/PNP)
  • Page 28 Fig. 22: Influence of the process temperature on the switching point Shifting of the switching point in mm (in) Process temperature in °C (°F) Switching point at reference conditions (notch) Tuning fork Influence of the product density on the switching point VEGASWING 61 - - transistor (NPN/PNP)
  • Page 29 Product density in g/cm³ (lb/in³) Switch position 0.5 g/cm³ (corresponds to 0.018 lb/in³) Switch position 0.7 g/cm³ (corresponds to 0.025 lb/in³) Switching point at reference conditions (notch) Tuning fork Influence of the process pressure to the switching point VEGASWING 61 - - transistor (NPN/PNP)
  • Page 30 -1 … 64 bar (-14.5 … 938 psi) depending on Process pressure the process fitting, e.g. flange (see following diagrams) VEGASWING 61 of 316L/Hastelloy C4 -50 … +150 °C (-58 … +302 °F) (2.4610) VEGASWING 61 - - transistor (NPN/PNP)
  • Page 31 (option) - VEGASWING 61 of 316L/Hastelloy -50 … +250 °C (-58 … +482 °F) - VEGASWING 61 with ECTFE coat- -50 … +150 °C (-58 … +302 °F) - VEGASWING 61 with PFA coating -50 … +150 °C (-58 … +302 °F) 70 °C...
  • Page 32 1x plug (depending on the version), 1x blind plug M20x1.5 for wire cross-section up to 1.5 mm² Screw terminals (0.0023 in²) Depending on the version M12x1, according to DIN 43650, Harting, Am- phenol-Tuchel, 7/8" FF. VEGASWING 61 - - transistor (NPN/PNP)
  • Page 33 - 0.5 0.5 … 2.5 g/cm³ (0.018 … 0.9 oz/in³) - 0.7 0.7 … 2.5 g/cm³ (0.025 … 0.9 oz/in³) Voltage supply 10 … 55 V DC Supply voltage max. 0.5 W Power consumption VEGASWING 61 - - transistor (NPN/PNP)
  • Page 34 FM (XP) CL I, DIV 1, GP ABCD (DIP) CL II, III, DIV 1, GP EFG Ship approvals Prerequisite for maintaining the protection is a suitable cable. Deviating data in Ex applications: see separate safety instructions. Only with Aluminium housing. Only with Aluminium housing. VEGASWING 61 - - transistor (NPN/PNP)

  • Page 35: Dimensions

    Housing in protection IP 66/IP 68, 1 bar ~ 103mm ") ~ 150mm (5 ") ø 77mm ø 84mm (3 ") ") M20x1,5 M20x1,5 M20x1,5 Fig. 29: Housing versions in protection IP 66/IP 68, 1 bar Stainless steel housing Aluminium housing VEGASWING 61 - - transistor (NPN/PNP)
  • Page 36 Supplement VEGASWING 61 32 (G "NPT) 41 (G1A, 1"NPT) "NPT G1A, 1"NPT ø 33,7 mm ") Fig. 30: VEGASWING 61 Thread Tri-Clamp Cone DN 25 Bolting DN 40 Flange Gas-tight leadthrough Temperature adapter VEGASWING 61 - - transistor (NPN/PNP)

  • Page 37: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.

  • Page 38: Swing

    Supplement VEGASWING 61 - - transistor (NPN/PNP)

  • Page 39: Swing

    Supplement VEGASWING 61 - - transistor (NPN/PNP)

  • Page 40: Information

    All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2007 29225-EN-070614 Subject to change without prior notice...
