Summary of Contents for Ovation CYC RGBW

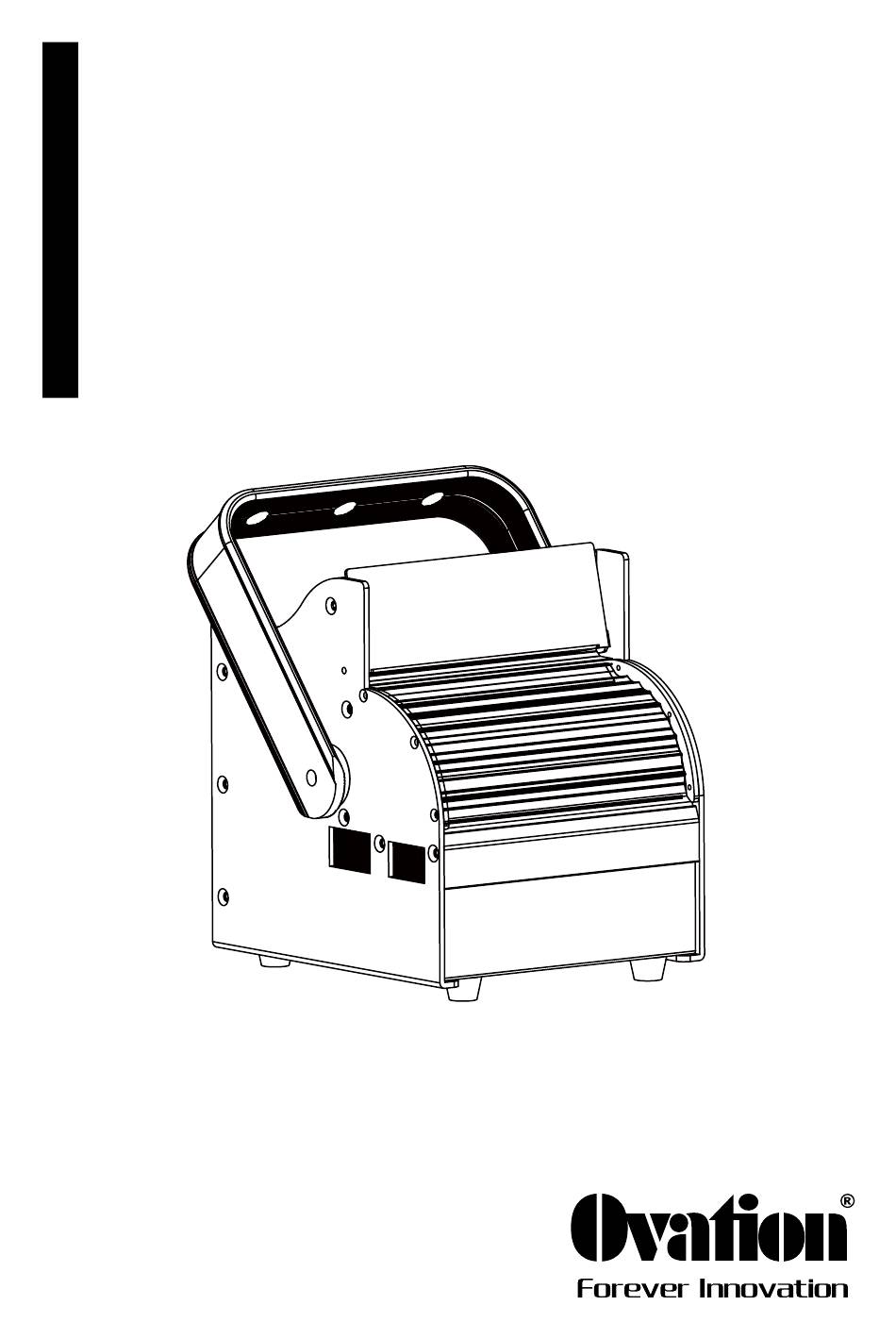

- Page 1 CYC RGBW USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture.................4 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................4 Securing with a safety cable .........................5 DMX-512 connection/connection between fixtures ..................5 Power connection ............................6 Operation ���������������������������������������������������������������������������������������������������������������������������������������������... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen CYC RGBW. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Installation
Cyclorama parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. -
Page 5: Securing With A Safety Cable
Cyclorama Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. -
Page 6: Power Connection
Cyclorama Power connection Power Requirements The CYC RGBW luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire con- tains an auto-ranging power supply. Power linking between fixtures: The fixture with powercon in and out socket. Connect the power out to the power in socket in the next fixture till all are connected. -
Page 7: Addressing
Cyclorama MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION INSTRUCTION White Magenta Seagreen Orange Skyblue Plum Gold Gamma 0.3-3.0 Dimmer curves set Standard Dimmer curve, Standard Stage Dimmer curve, Stage Mode Dimmer curve, TV Dimmer curves Arch Dimmer curve, Architecture Theatre Dimmer curve, Theatre Studio... -
Page 8: Universal Dmx Control
In the case of the CYC RGBW zoom, which is 2/4/6/10 channels fixture. If you set, for example, the ad- dress in the 2 channel mode to channel 3, the device will use the channel 3-4 for control. -
Page 9: Dmx Protocol
Cyclorama DMX Protocol 2-CH Mode Function Function Control Dimmer 000-255: Dimmer 000-127: 3200K Color temperature 128-255: 5600K 4-CH Mode Function Function Control 000-255: Red dimmer Green 000-255: Green dimmer Blue 000-255: Blue dimmer White 000-255: White dimmer 6-CH Mode Function Function Control Dimmer 000-255: Dimmer... - Page 10 Cyclorama 10-CH Mode Function Function Control Dimmer 000-255: Dimmer 000-010: No function 011-031: Level 1 032-059: Level 2 060-087: Level 3 088-115: Level 4 Strobe 116-143: Level 5 144-171: Level 6 172-199: Level 7 200-227: Level 8 228-255: Level 9 000-255: Red dimmer Green 000-255: Green dimmer...
-
Page 11: Fixture Cleaning
Cyclorama 10-CH Mode Function Function Control 166-175: Honeydew 176-185: Steel Blue 186-195: Cyan 196-205: Sea Green 206-215: Khaki 216-225: Brown 226-235: Pink 236-245: Violet Red 246-255: Medium Purple 000-015: No function 016-075: Rainbow fading Color switching 076-135: Rainbow jumping 136-195: Warmwhite fading 196-255: Coldwhite fading 000-010: No function 011-031: Level 1... -
Page 12: Troubleshooting
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model CYC RGBW Power supply: AC100 - 240V, 50/60Hz Light source: 200Watt COB LED...
