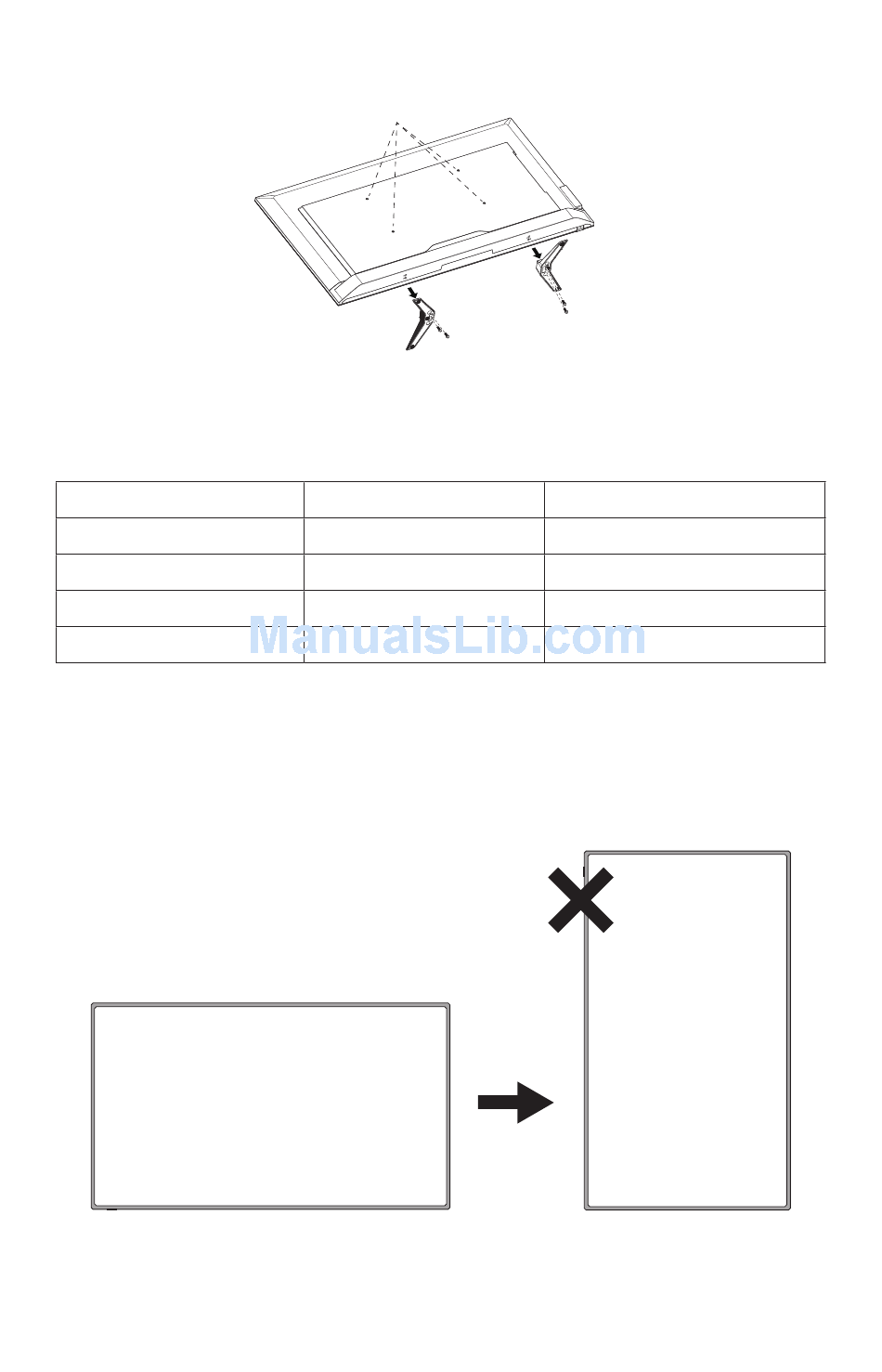

Loosen the screws on the button of the base, and remove the base.
2. Secure the wall mount bracket to the back of your TV using four M4
screws (for 32" only) or M6 screws (for 43"/50"/55").
screen size (inches)
55
50
43
32
NOTE:
Wall mounting solution is not included with the unit and is sold separately.
Contact your NEC representative for details. It is necessary to provide screw
of appropriate length (Wall mount bracket thickness + VESA Hole depth).

Prohibit Portrait Condition Use

CAUTION:
Do not rotate the display from landscape to portrait.
VESA Hole
Stand Screw
required pitch (mm)
400
200
×
400
200
×
200
200
×
100
100
×
English-16
VESA Hole depth
4
M6 (17.5mm)
×
4
M6 (15mm)
×
4
M6 (16mm)
×
4
M4 (12.5mm)
×
