Summary of Contents for Elvox 40510

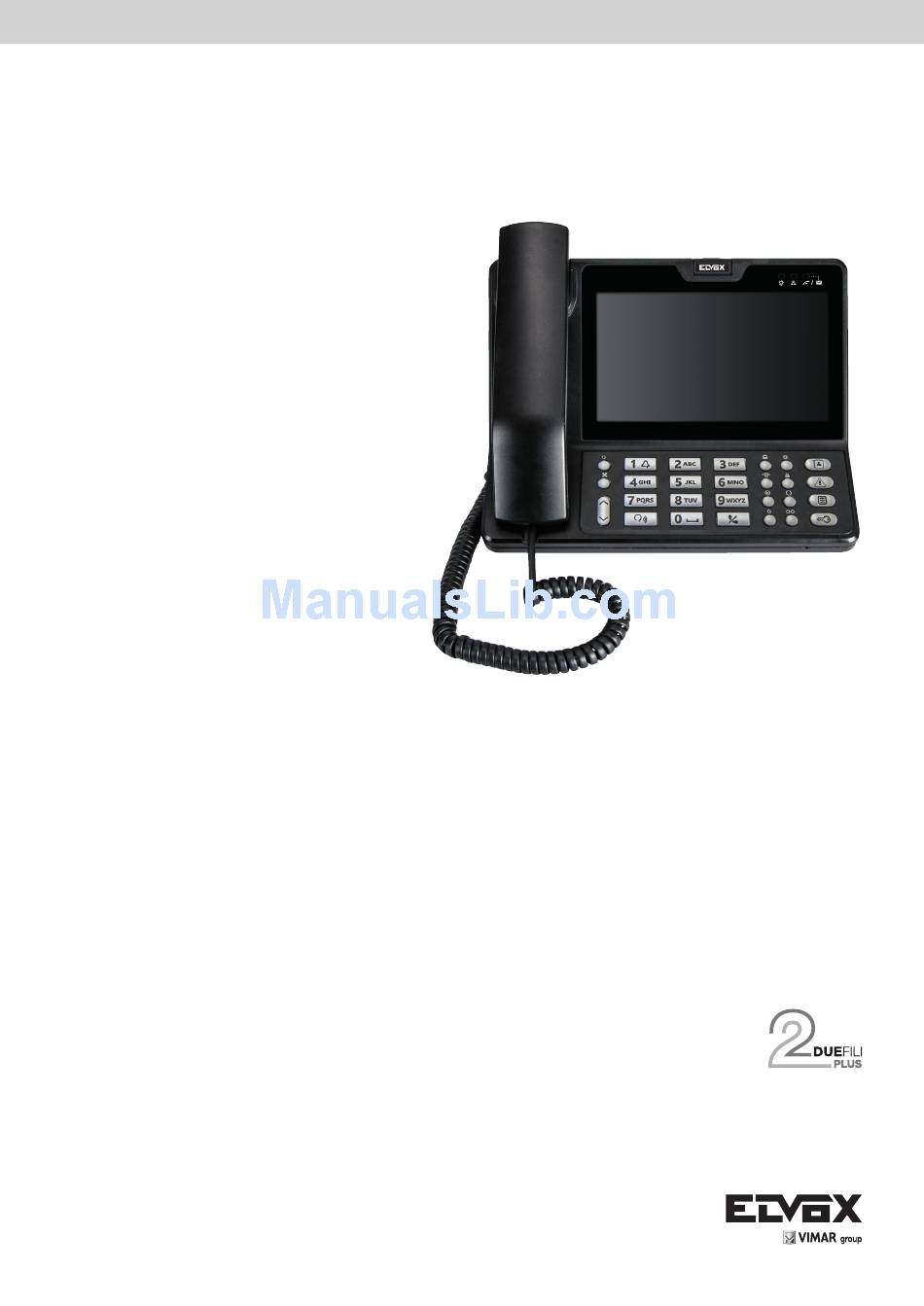

- Page 1 Instruction manual 40510 7” Due Fili Plus porter switchboard...
-
Page 2: General Information
7” Due Fili Plus porter switchboard GENERAL INFORMATION Device 40510 is a switchboard for the DueFili Plus video door entry system, equipped with a 7-inch colour screen. It can be used in hands-free mode or with a handset. The instruction manual can be downloaded from www.vimar.com... -
Page 3: Main Functions
7” Due Fili Plus porter switchboard Main functions The switchboard offers the following functions: 1. making and receiving audio calls with the indoor units; 2. receiving audio/video calls from the speech units; 3. implementing automatic self-starts from the speech units; 4. - Page 4 7” Due Fili Plus porter switchboard Front view Screen Handset Keyboard Rear and side view RJ45 socket for connection Mini USB connector for connection to to the Due Fili Plus system Dip switch for video a PC via stud termination...
- Page 5 7” Due Fili Plus porter switchboard Keyboard Description Menu / Select Exit / Cancel Down Alphanumeric keys Hands-free End Conversation Internal / External Day / Night Self-start Keyboard lock Hold Input / Transfer F1 (programmable) F2 (programmable) Contacts List List of alert notifications Events list Lock VIMAR group...
- Page 6 7” Due Fili Plus porter switchboard Indicators Status Description Steady light Power - Switchboard on Steady light Switchboard connected to a PC via USB Flashing light Unanswered call indication and/or alert notification...
-
Page 7: External Connections
7” Due Fili Plus porter switchboard External connections Switchboard 40510 is connected via the “Interconnecting stud” and the corresponding RJ45 Cat. 5E connection cable supplied. Important: The maximum connection dis- tance between power supply unit 6923 and the interconnecting stud is 10 m. - Page 8 A) if the BUS cable enters terminals BU (1), OG (2) of the switchboard interconnecting stud and continues to another indoor unit. B) when a BUS cable with typical impedance of 100 Ohm (Elvox cable 732I or 732H) enters terminals BU (1), OG (2) of the interconnecting stud and the riser stops in the switchboard.
-
Page 9: Graphical Interface
7” Due Fili Plus porter switchboard GRAPHICAL INTERFACE First line The following icons may appear on the first line of the screen, starting from the left: The ringtone is disabled. The switchboard nevertheless accepts calls and it is possible to answer. A notification that a door is open has been received. - Page 10 7” Due Fili Plus porter switchboard Standby Stand-by screen The switchboard enters standby mode after a specified time. In this mode, screen brightness is reduced and electricity consumption limited. If a function button is pressed when the switchboard is in standby, that function is implemented immediately once the switchboard has awoken.
-
Page 11: Keyboard Lock
7” Due Fili Plus porter switchboard Keyboard lock The key locks the keyboard. To unlock it, press the key again, enter the unlock PIN (default 0000) and press the key . When locked, calls can still be answered by pressing the key or lifting the handset. -
Page 12: Basic Settings
7” Due Fili Plus porter switchboard Basic settings In standby, the key calls up the settings menu, which can be navigated in circular manner using the keys. To configure a setting, navigate the list using the keys until you have selected the desired option (highlighted in orange), then press . - Page 13 7” Due Fili Plus porter switchboard Speech unit call ringtone Ringtone selection • Select landing call melody Use keys to select one of the 10 available melodies (identified by letters A to J) to use as a ringtone for calls from the landing. The switchboard plays back the selected ringtone. Press to confirm or press to cancel without saving.
- Page 14 7” Due Fili Plus porter switchboard • Ringtone volume control Use keys to increase/decrease the ringtone volume, which is indicated by the horizontal bar. Press to confirm or press to cancel without saving. NOTE: the set level is used for all ringtone types (calls from the speech unit, landing, indoor unit or switchboard). Default: level 5.
- Page 15 7” Due Fili Plus porter switchboard Master Clock activation • Key tone Use the keys to enable/disable the tone produced whenever a key is pressed (keystroke feedback). Press to confirm or press to cancel without saving. Default: enabled. Key tone • Installer menu After selecting the option and pressing , the installer PIN will be requested.
-
Page 16: Advanced Settings
7” Due Fili Plus porter switchboard Advanced settings The settings menu can be navigated in circular manner using the keys. To configure a setting, navigate the list using the keys until you have selected the desired option (highlighted in orange), then press . - Page 17 7” Due Fili Plus porter switchboard ID verification Confirm ID • Language Use the keys to select the desired language. Press to confirm or press to cancel without saving. Default: Italian. Language Language selection • Date format Use the keys to select the desired date display format.
-
Page 18: Numbering Plan
7” Due Fili Plus porter switchboard • Time format Use the keys to select the desired time display format. Press to confirm or press cancel without saving. Time format • Standby cut-in time Use the keys to select the period of inactivity after which the switchboard will switch to stand-by mode. - Page 19 7” Due Fili Plus porter switchboard Numbering plan Natural 4-digit 8-digit • Horizontal or vertical installation Use the keys to select vertical or horizontal installation type. Press to confirm or press to cancel without saving. Default: vertical. Whenever this parameter setting is changed, the switchboard ID will no longer be valid (status indicated by ID 0), and will have to be reconfigured.
- Page 20 7” Due Fili Plus porter switchboard Vertical Horizontal • Reset of all parameters to default factory settings Press to start the procedure to reset the switchboard configuration. The reset confirmation screen is displayed (see below): press to proceed or to cancel and maintain the current configuration. The reset does not affect contacts lists and event lists, which will be retained in the device memory.
-
Page 21: System Information
7” Due Fili Plus porter switchboard • Keyboard unlock PIN Press the procedure to change the keyboard unlock PIN. In the next screen, enter four digits. Press confirm or press to cancel without saving. Default: 0000. Keyboard unlock PIN PIN setting •... -
Page 22: Using The Device
7” Due Fili Plus porter switchboard USING THE DEVICE Call to indoor unit or switchboard To call, carry out one of the following actions: • Enter the number on the keyboard, then lift the handset or press • Select the entry in the contacts list (see sub-section “Search contacts list” below), then lift the handset or press Dialling Conversation in progress The call can be ended using the key... -
Page 23: Answering A Call
7” Due Fili Plus porter switchboard the switchboard, it's ID will be displayed preceded by the symbol ‘-‘. Incoming call (from speech unit, indoor unit or switchboard) In the event of an incoming call, before answering you can: • Mute the chime (for the current call only) by pressing the key for 0.5 seconds. - Page 24 7” Due Fili Plus porter switchboard Conversation with indoor unit in progress Conversation with speech in unit progress Adjustments during a conversation During the conversation, it is possible to adjust: • Loudspeaker level (differentiated for conversation with indoor unit and speech unit and for hands-free and handset conversation).
- Page 25 7” Due Fili Plus porter switchboard number. When the switchboard is in Internal mode and receives a call from a speech unit intended for an indoor unit, after entering into a conversation with the speech unit, that call can be put on hold and a second call made to the requested indoor unit by pressing key , followed by In the event of a call to a second indoor unit, after receiving an answer, the switchboard can place the two indoor units in...
- Page 26 7” Due Fili Plus porter switchboard (Call from switchboard to requested indoor unit): 4A. Indoor unit called by switchboard The switchboard operator makes the call to the re- quested user (Mario Rossi) by pressing then 5A. Conversation between indoor unit and switchboard The user Mario Rossi answers the call and enters into conversation with the switchboard operator.
- Page 27 7” Due Fili Plus porter switchboard 6.A Transfer of conversation between indoor unit and speech unit After conversing with the user Andolfo Zanardo (in the same way as in point 5 A), the switchboard operator transfers the call to the speech unit by pressing .
-
Page 28: Call Filter
7” Due Fili Plus porter switchboard Competence Areas (CA) A Related Zone, hereinafter CA, is an extension of the Indoor / Outdoor mode of the switchboard and automatic Indoor / Outdoor mode. CAs are configured exclusively using Project Mode of the SaveProg software. When they are configured, the will have no effect. - Page 29 7” Due Fili Plus porter switchboard ID) is shown in the left-hand column, and the user name in the right-hand column. The list is organised alphabetically and can be scrolled using the keys Press to toggle between List display and Detail display. List display Detail display Detail display with remapping active...
- Page 30 7” Due Fili Plus porter switchboard If none of the elements in the contacts list match the entered filter, the message CONTACTS LIST EMPTY appears on the screen. Once the filter has been applied, you can still scroll through the filtered list using the keys Pressing the key deletes the last character in the filter.
- Page 31 7” Due Fili Plus porter switchboard Activations menu key also works in the same way during conversation with the speech unit. This function can only be programmed using SaveProg. Self-start Briefly press the key to send the self-start request to a speech unit, in accordance with the sequence programmed on the master speech unit in the system.
-
Page 32: Events List
7” Due Fili Plus porter switchboard Events list When there is at least one event that is not served, the icon will flash at the top right of the screen. Events notification The switchboard saves the following events in memory (the type under which they are classified is shown in brackets): 1. - Page 33 7” Due Fili Plus porter switchboard Call to switchboard from indoor unit, not Call to switchboard from indoor unit, rejected answered Call to switchboard from speech unit, not Call to switchboard from speech unit, rejected answered Call from speech unit to indoor unit 1, with Call from speech unit to indoor unit 1, with switchboard in "Indoor"...
- Page 34 7” Due Fili Plus porter switchboard Call to switchboard from indoor unit, previously Call to switchboard from indoor unit, previously not answered and then served rejected and then served Lock opening Relay activation Door opened Door closed Alert Alerts are notifications that indoor units can send to the switchboards. These notifications can also be sent even if the Bus is occupied with a call in progress.
- Page 35 7” Due Fili Plus porter switchboard Alert notification "Not served" alert "Served" alert The number to the right of the symbol # is the sub-address associated with the indoor unit (it could, for example, indicate the bathroom instead of the bedroom), whereas the number after CNT indicates the number of times the indoor unit has sent the request.
- Page 36 7” Due Fili Plus porter switchboard • for filter active (see below for details on what is displayed and what is not). • for filter active and limited to events not served (see below for details on what is displayed and what is not). In the second and third case, additional information may be added to further restrict the criteria for the type of events dis- played.
-
Page 37: Installation Diagrams
The default “TOUT” connector is in the “100” position the device to which it is to be connected. - Move to position “B” (if Elvox cable) or to position “C” (Elvox cable), position it at “50” only if using a CAT5 (if CAT5 twisted pair cable) if the BUS line terminates in twisted pair cable. - Page 38 732H 732H 732I 732I 732I 732I 40510 D - Pixel series button video door entry panel D0 - Pixel series alphanumeric video door entry panel K - Door call button 12 V Electric lock P - Door release control SC_02_DF_015...
- Page 39 6923 Cable Cable Cable Cavo Cavo Cavo 732H 732H 732H 732H 732H 732H 732I 732I 732I 732I 732I 732I 40510 40510 Mains Mains Rete Rete Power Power Alimentatore Alimentatore Alimentatore supply supply +U +I +U +I 6923 6923 40510 40510...
- Page 40 Viale Vicenza 14 36063 Marostica VI - Italy www.vimar.com 49400857A0_MI 00 16 07...
