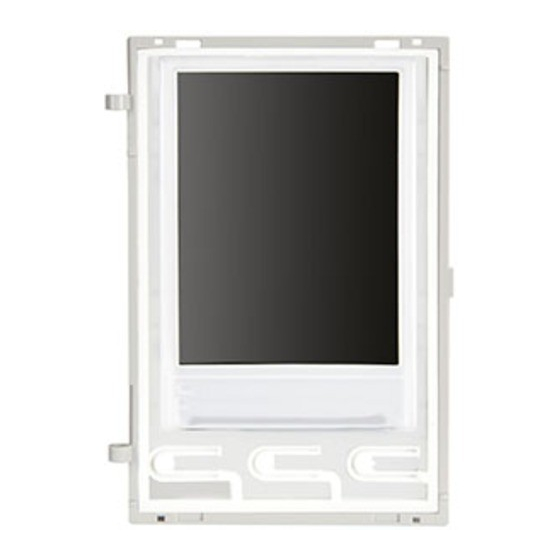

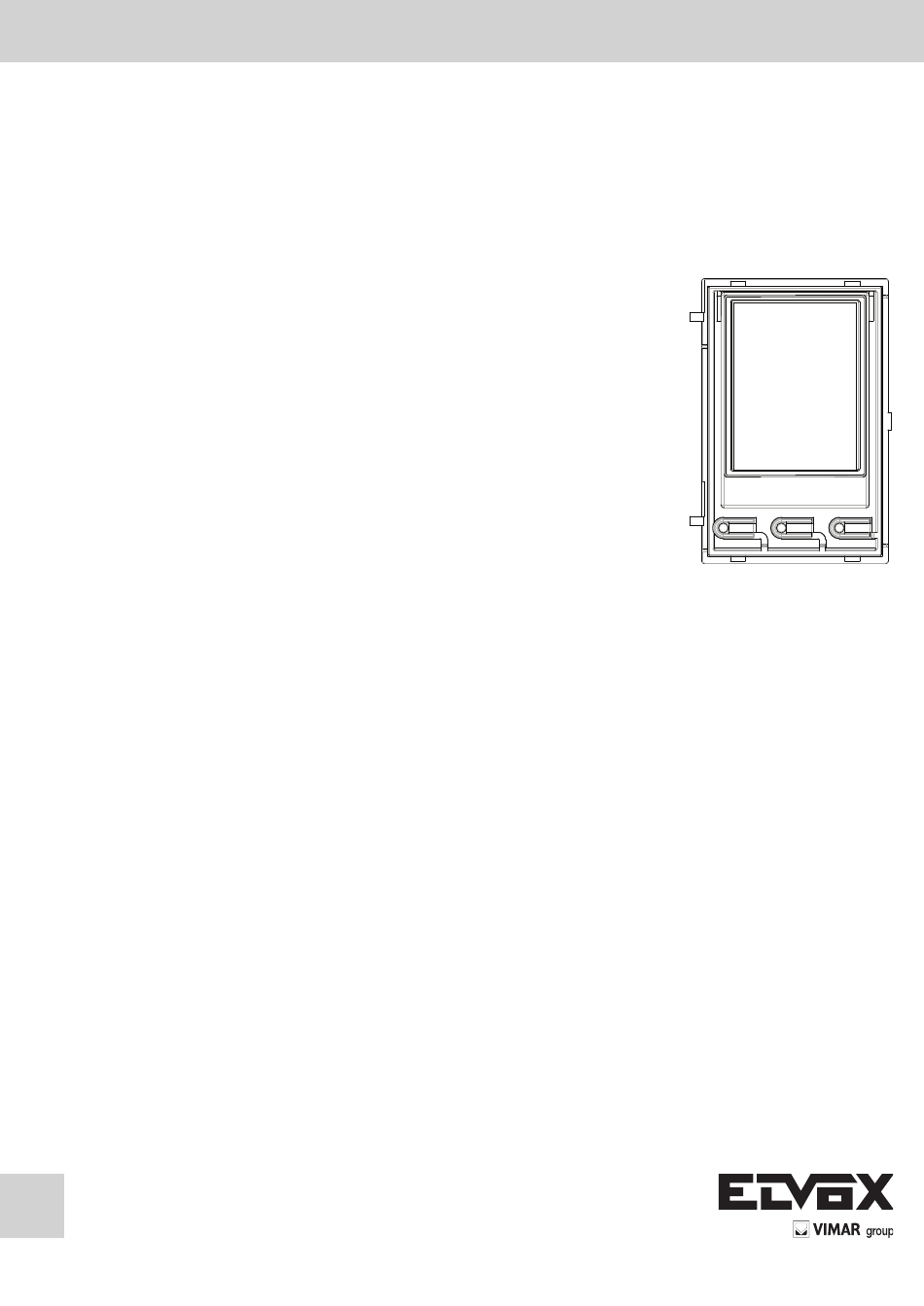

- Page 1 Manuale installatore - Installer guide 41018 Display 3,5 in 3.5 in Display...
-
Page 2: Table Of Contents
LEDs, 1 input configurable as external but- ton for CA door opener or PA door open, to be completed with front cover Contents BRIEF DESCRIPTION OF DEVICE ART. 41018 .......................15 FEATURES ..................................16 CONFIGURATION VIA PC ..............................17 CONFIGURATION VIA MENU ............................20... -
Page 3: Features
FEATURES 2.1. Features • The 3.5" display has the following features: 320 x 480 pixels, 65K colours, 500 lux. • The device must always be accompanied by an audio/video or audio module. • Power supply: 5V DC from audio video or audio module via harness. Maximum current draw: 220 mA. When connect- ing the modules, observe the limit of the maximum current that can be supplied by the specific Audio/Video module being used;... -
Page 4: Configuration Via Pc
CONFIGURATION VIA PC 3.1. Programming the Contacts List and entry control codes The contacts list (up to 8192 entries) and the entry control codes (up to 2000 codes) can be programmed via the PC programming SW (SaveProg), connecting to the audio/video module. Follow the instructions given on SaveProg. - Page 5 3.2.2. Building filter This filter lets you access the subset of users paired with a specific building. Users Porter Buildings Contacts Extension The Building filter can be combined with the names pre-filter. Users Users Porter Buildings Contacts Extension 3.2.3. Stair filter The Stair filter lets you access the subset of users paired with a specific stair or all users.
- Page 6 3.3. Additional information Additional information comprises additional descriptions that appear on a contacts list entry when the user hovers over it for more than 3 s. One of these items can be set as additional information: • Service Information, such as the business hours of an office; •...
-
Page 7: Configuration Via Menu
CONFIGURATION VIA MENU The display provides the ability to configure the basic parameters of the panel. There are two menus: 1. administrator: the administrator side lets you modify the display module interface; 2. installer: lets you change some of the functional parameters of the panel. You access the menu by simultaneously pressing for 5 s and entering the respective pass- (UP) - Page 8 Porter Porter Contacts Contacts Select Navigation Direct • Font: Normal/Large Changes the font size, to improve readability. PORTER Porter Contacts CONTACTS EXTENSION Extension SELEZIONA SELECT Normal Large 4.1.3. LCD This lets you define the operating parameters of the display • Brightness: 0-5 Brightness level •...
- Page 9 Label Settings Level 0 Level 1 Level 2 Italian, English, French, German, Spanish, Greek Language and Portuguese (Default: Italian) Menu Navigation Navigable/Direct (Default: Navigable) Font Normal/Large (Default: Normal) Display Brightness 1-5 (Default:5) Colours B/W, BLUE, GREEN (Default: B/W) Standby ON/OFF (Default: ON) Speaker 0=auto, +4 levels Audio...
- Page 10 Lets you choose the type of grouping of the panel. 4.3.3. Addressing This lets you start the panel and indoor unit addressing procedures. • Interphones Starts the indoor unit address assignment procedure. • Panels Starts the panel address assignment procedure. 4.3.4.
-
Page 11: Using The Display Module
USING THE DISPLAY MODULE In standby mode the device gives the instructions to follow to access the available features depending on the type of installation. Depending on the programming of the contacts list and the presence of an alphanumeric keyboard, the main screen of the display module will show the switchboard, contacts list and entry code items. - Page 12 5.2. Calling a Switchboard To call a switchboard there is a quick item in the main menu. In addition, any other switchboards are accessible as contacts list entries. 5.3. Calling from the keypad When there is a keypad you can directly enter the extension number you want to call. Enter the extension number by following the indications on the display: •...
- Page 13 Calling Talking No answer Call ended Porter Back Delete Back Delete Concluded No Reply If the system is busy, with another call, the wait signal is returned: Busy If the user is busy or has set the user absent service, these warnings are issued: Busy Absent 5.5.
- Page 14 Personal code entry sequence: + <code> + 5.5.2. Display feedback The device returns the status information associated with the entry control phase: Access to the Waiting for mode for confirmation Entry control Entering code Code Code Code Confirm Confirm Confirm Delete Delete Delete...
- Page 15 Vimar SpA: Viale Vicenza, 14 36063 Marostica VI - Italy Tel. +39 0424 488 600 - Fax (Italia) 0424 488 188 49400688A0 00 1506 Fax (Export) 0424 488 709 VIMAR - Marostica - Italy www.vimar.com...
