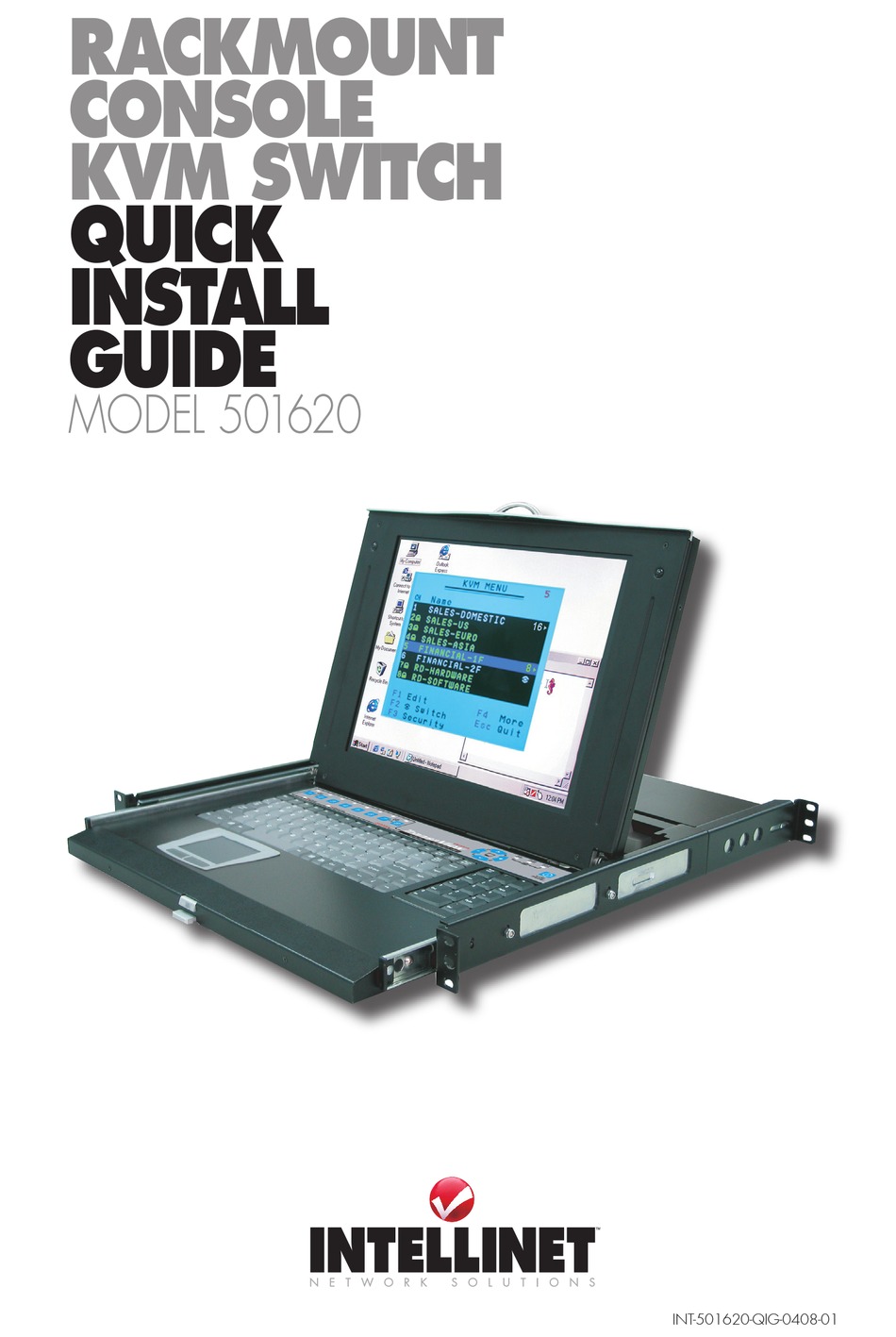

Intellinet 501620 Quick Install Manual

Rackmount console kvm switch

Advertisement

Rackmount
console

kVm switch

quick
install
guide
Model 501620
INT-501620-QIG-0408-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 501620 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intellinet 501620

  • Page 1: Kvm Switch

    Rackmount console kVm switch quick install guide Model 501620 INT-501620-QIG-0408-01...
  • Page 2 • ergonomic hand-rest design • Ultra-sturdy, tilt-free, 2-piece rear bracket and extension design • oSd control and adjustment • Cascadable to all INTellINeT NeTWoRK SolUTIoNS Rackmount PS/2 KVM switches for expansion • Auto-scan automatically selects computers sequentially • Supports Microsoft IntelliMouse (Pro) •...
  • Page 3 console assembly Parts Three-Section Console: A. 1U slide drawer with keyboard, touchpad and lCd monitor. B. 1U KVM Switch Module. C. Rear bracket and extension kit. Rear Bracket and Extension Kit: each Rackmount Console KVM Switch features a rear bracket and extension kit, which includes two pieces of rear brackets and two pieces of extensions.
  • Page 4 2. Remove the safety stopper from the console drawer. CAUTION: The stopper is designed to keep the drawer from sliding out during transportation; othwewise, the drawer could slide out. 3. Slide the console drawer into the rack cabinet from the front and insert the two slide rails of the console drawer into the sleeves of the rear brackets.
  • Page 5 7 . The rear brackets, extensions and slide rails need to fit tightly. As shown above-left, slide the rear brackets onto the extensions. Then, as shown above- right, insert both sliding rails of the console drawer into the tight space formed by the rear brackets and the extensions.
  • Page 6: Console Installation

    console installation Connecting to a Computer Connecting to a KVM Switch Console Panel The console panel of the switch is located along the top of the keyboard. KVM Control and Status Indicators: NOTE: This section is effective only when a KVM switch module is connected. 1.
  • Page 7: Specifications

    NOTE: If this 8-port model is used in conjunction with a 16-port model, you may see a keyboard labeled with “A”–”H” in addition to “1”–”8” (as shown). “1”–”8” are for the lower row of eight ports; “A”–”H” are for the higher/upper row.
  • Page 8 INTellINeT NeTWoRK SolUTIoNS offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
