Summary of Contents for Intellinet 503358

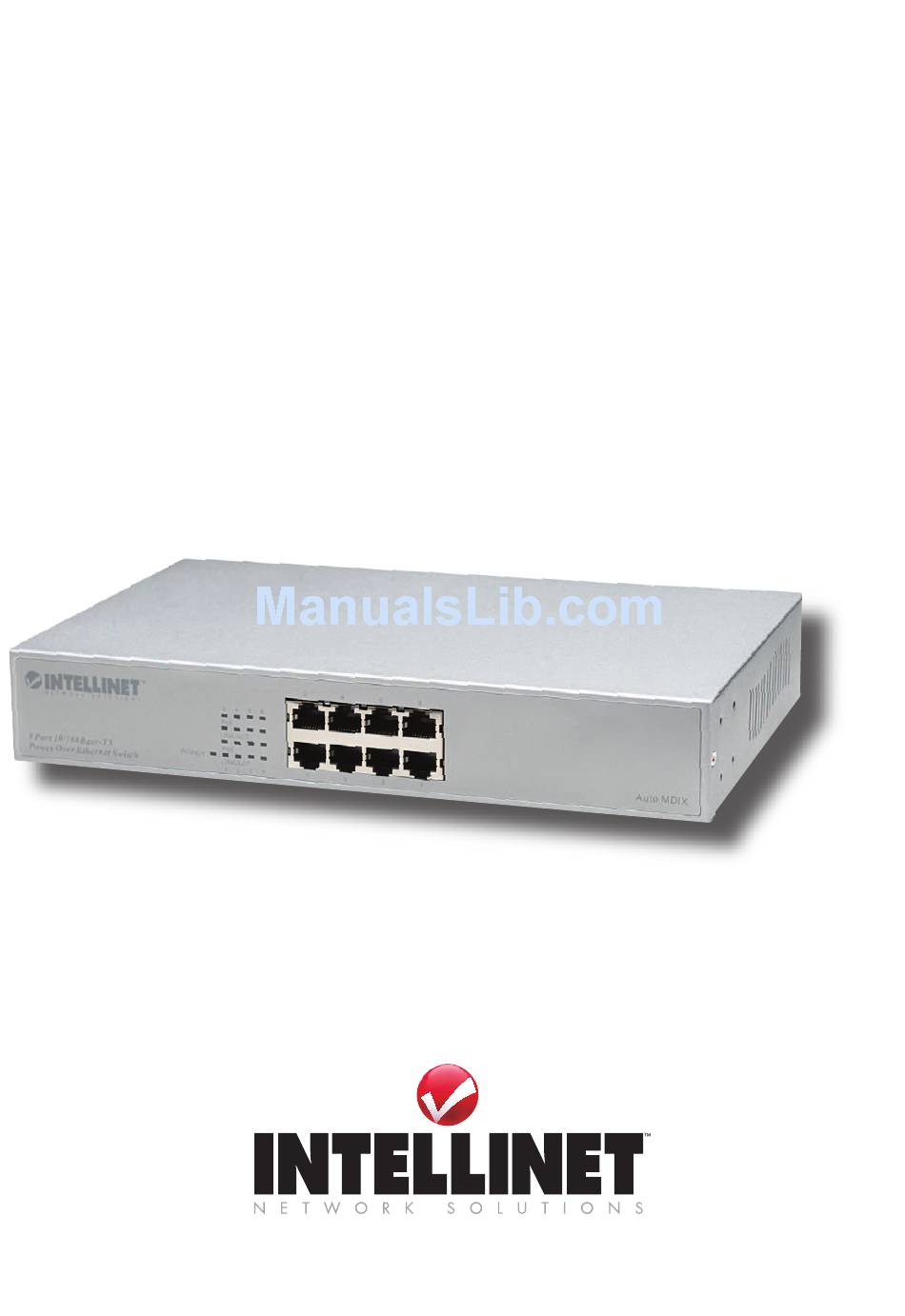

- Page 1 OfficE Switch uSEr manual Model 503358 INT-503358-UM-1107-01...

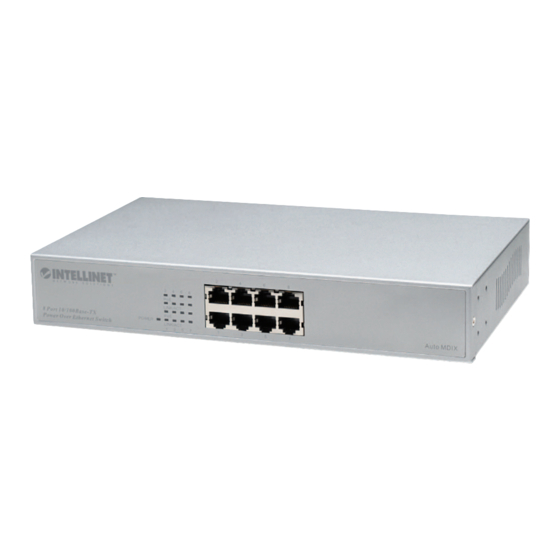

- Page 3 Thank you for purchasing the INTellINeT NeTWoRK SolUTIoNS ™ PoE Office Switch, Model 503358. This PoE Office Switch has eight 10/100 Base-TX ports that support the 802.3af protocol and is designed to inject up to 19.2 Watts per port.
- Page 4 10/100 Mbps switching ports that sense 10/100M speed and automatically negotiate full/half duplex mode, allowing you to connect the switch to 10Base-T and 100Base-TX devices. NOTE: The eight ports are also capable of 48 V power-injector PSE (power source equipment) function (see Connections).
- Page 5 Hubs and Other Switches Use either straight-through or crossover cable to connect to the uplink port of a hub or another switch: This device supports Auto-MDIX on all ports. Powered Devices Use Cat5 twisted-pair...
-
Page 6: Specifications
• Weight: 1.4 kg (3.0 lbs.) • Operating temperature: 0 – 60°C (32 – 140°F) • Operating humidity: 10 – 90% RH, non-condensing • Storage temperature: -20 – 90°C (-4 – 194°F) Package Contents • PoE Office Switch • Power cable • User manual... - Page 8 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
