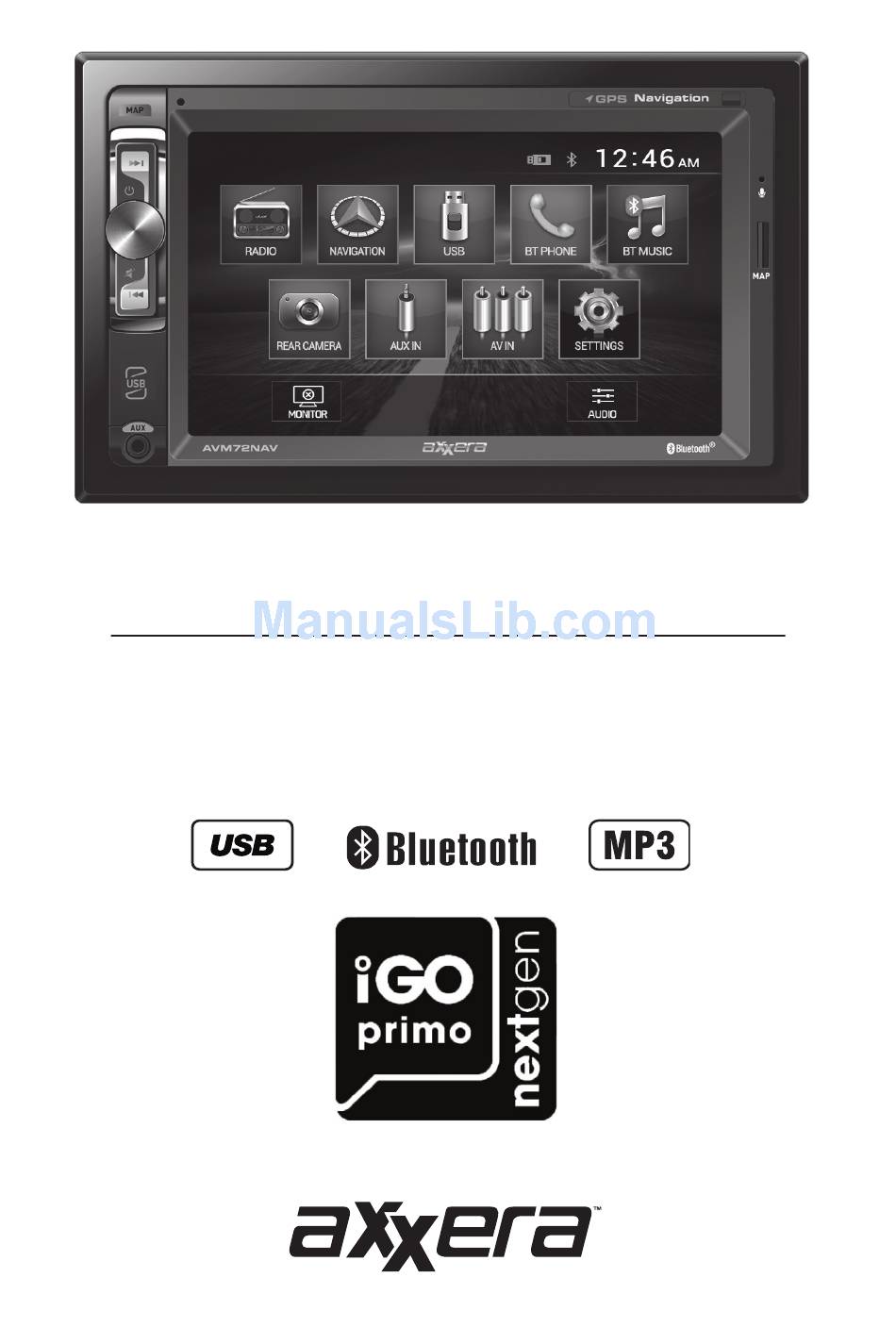

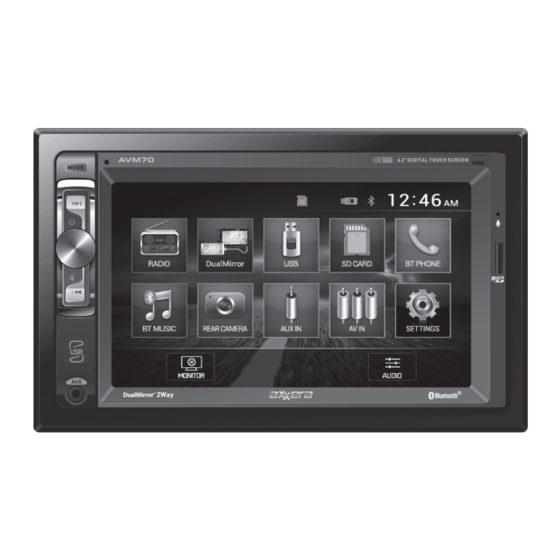

- Page 1 AVM72NAVLH INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth and Navigation featuring a 6.2" Touch Screen Display...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Safety Information
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera AVM72NAVLH is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. - Page 4 AVM72NAVLH Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 AVM72NAVLH INSTALLATION Wiring Diagram - Inputs/Outputs GP S CAMERA AUDIO INPUT BT AN TEN NA USB CH ARG E SW C-I R Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
-
Page 6: Control Locations
AVM72NAVLH OPERATION Control Locations Reset USB Port Map (Navigation) Auxiliary Input Tune / Track Up MicroSD Slot (Navigation) Power / Volume / Mute Microphone Tune / Track Down IR Sensor Audio Power Mode * Key Play / Pause Loudness Mute... -
Page 7: Remote Control Preparation
AVM72NAVLH OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 8: General Operation
AVM72NAVLH OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press to silence the audio. Momentarily press again to return to the previously selected volume. - Page 9 AVM72NAVLH OPERATION General Operation From the Main Menu screen, press Settings in the bottom right corner to Setup Menu access the Setup Menu and select from the following categories: General, Audio, Video and Bluetooth. General: • GPS Mix - Select to turn GPS Mix settings On or Off.
- Page 10 AVM72NAVLH OPERATION AM/FM/RDS Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
- Page 11 AVM72NAVLH OPERATION AM/FM/RDS Tuner Operation Press and hold to automatically store the six strongest stations in the AS/PS current band as presets. Press briefly for a preset scan, which will scan all preset stations and play 10 seconds of each. Press again to cancel the scan and continue playing the current station.
-
Page 12: Usb Operation
AVM72NAVLH OPERATION USB Operation To play MP3 files from a USB device, insert device into the USB CD/MP3 slot on the front of the unit and playback will begin automatically. To or JPG Operation return to USB playback from another mode of operation, select the corresponding icon from the Main Menu. - Page 13 AVM72NAVLH OPERATION USB Operation 9 10 Folder Search Press to access the directory of folders and files. Use the up/down arrows to scroll through the folder list, then press on the name of the desired folder to access it. Use the up/down arrows to scroll through the file list, then press on the name of the desired file to access it.
- Page 14 AVM72NAVLH OPERATION Media Compatibility - USB File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44. 1 /48kHz Sampling MPEG 2 12/16/22.05/24kHz...
-
Page 15: Media Compatibility
AVM72NAVLH OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg2: Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg4: Max video resolution: 720x480, Max video bit rate: 5000 kbps •... -
Page 16: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Axxera AVM72NAVLH". The Bluetooth passcode "0000". - Page 17 AVM72NAVLH OPERATION Bluetooth Operation Screen Press to adjust screen brightness or put the monitor into standby mode. Audio Press to access audio setting such as EQ, Surround Sound Settings and Field Settings (Balance and Fader). Settings Press to access the Settings Menu.
-
Page 18: Navigation Operation
AVM72NAVLH OPERATION Navigation Operation Navigation Operation To access navigation functions, select Navigation from the Mein Menu. For questions regarding navigation operation, refer to the Navigation manual available online at www.axxeraaudio.com/support/manuals.php. Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. -
Page 19: Limited One Year Warranty
AVM72NAVLH OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp. -
Page 20: Specifications
AVM72NAVLH OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 21: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name... - Page 22 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2017 Dual Electronics Corp. All rights reserved. NSA0317-V01 Printed in China...
Need help?
Do you have a question about the AVM72NAVLH and is the answer not in the manual?
Questions and answers
Touchscreen is blank. Turns on/off but screen is black. I suspect monitor is adjusted too low or on standby but I cannot see it to make an adjustment
The touchscreen on the Axxera AVM72NAVLH may be blank due to the parking brake safety circuit not being connected or the parking brake not being applied. To fix this:
1. Check that the parking brake safety circuit is properly connected.
2. Make sure the parking brake is applied.
If the issue continues, reset the unit as described in the manual.
