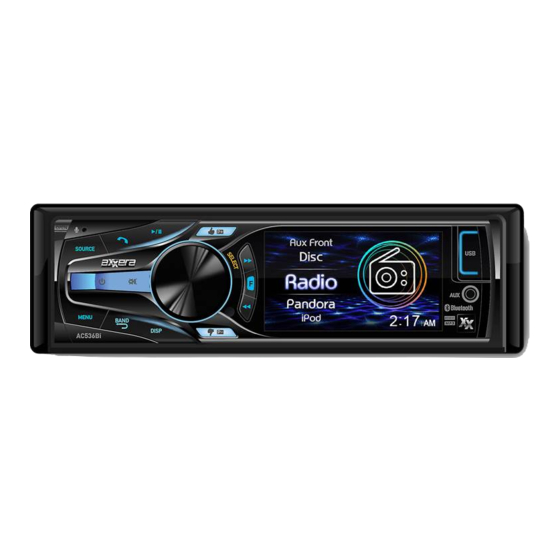

Axxera AC536Bi Installation & Owner's Manual

Car Audio

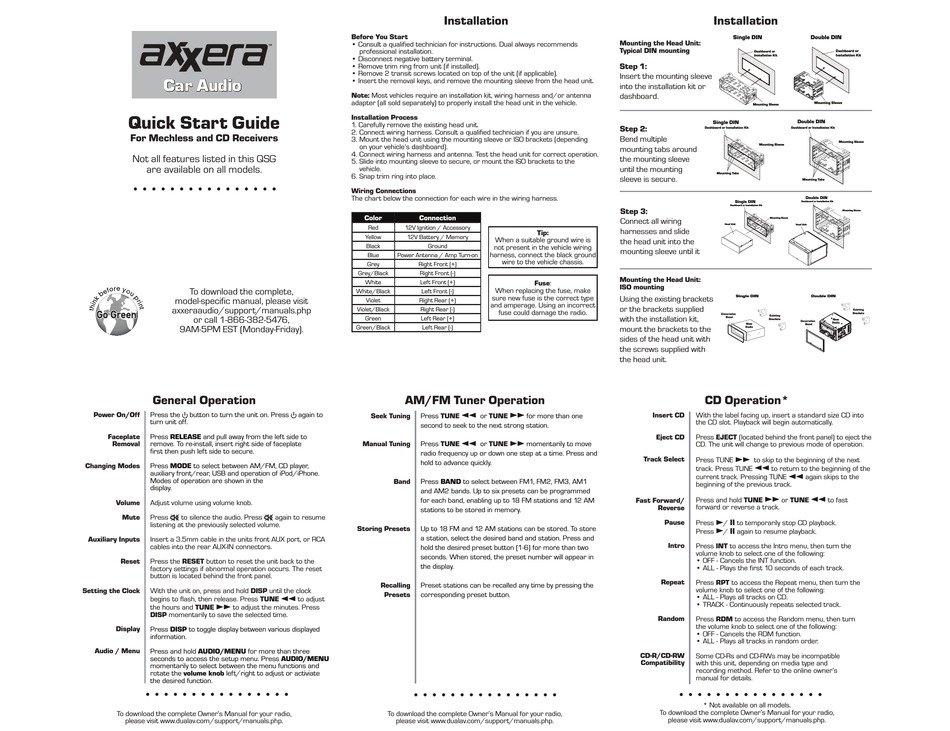

Quick Start Guide
For Mechless and CD Receivers
Not all features listed in this QSG
are available on all models.
To download the complete,
model-specific manual, please visit
axxeraaudio/support/manuals.php
or call 1-866-382-5476,
9AM-5PM EST (Monday-Friday).
General Operation
Power On/Off Press the button to turn the unit on. Press
turn unit off.
Faceplate Press RELEASE and pull away from the left side to
Removal remove. To re-install, insert right side of faceplate
first then push left side to secure.
Changing Modes Press MODE to select between AM/FM, CD player,
auxiliary front/rear, USB and operation of iPod/iPhone.
Modes of operation are shown in the
display.
Volume Adjust volume using volume knob.
Mute Press to silence the audio. Press
listening at the previously selected volume.
Auxiliary Inputs Insert a 3.5mm cable in the units front AUX port, or RCA
cables into the rear AUX-IN connectors.
Reset Press the RESET button to reset the unit back to the
factory settings if abnormal operation occurs. The reset
button is located behind the front panel.
Setting the Clock With the unit on, press and hold DISP until the clock
begins to flash, then release. Press TUNE ll
the hours and TUNE to adjust the minutes. Press
DISP momentarily to save the selected time.
Display Press DISP to toggle display between various displayed
information.
Audio / Menu Press and hold AUDIO/MENU for more than three
seconds to access the setup menu. Press AUDIO/MENU
momentarily to select between the menu functions and
rotate the volume knob left/right to adjust or activiate
the desired function.
To download the complete Owner's Manual for your radio,
please visit www.dualav.com/support/manuals.php.
Installation
Before You Start
• Consult a qualified technician for instructions. Dual always recommends
professional installation.
• Disconnect negative battery terminal.
• Remove trim ring from unit (if installed).
• Remove 2 transit screws located on top of the unit (if applicable).
• Insert the removal keys, and remove the mounting sleeve from the head unit.
Note: Most vehicles require an installation kit, wiring harness and/or antenna
adapter (all sold separately) to properly install the head unit in the vehicle.
Installation Process
1. Carefully remove the existing head unit.
2. Connect wiring harness. Consult a qualified technician if you are unsure.
3. Mount the head unit using the mounting sleeve or ISO brackets (depending
on your vehicle's dashboard).
4. Connect wiring harness and antenna. Test the head unit for correct operation.
5. Slide into mounting sleeve to secure, or mount the ISO brackets to the
vehicle.
6. Snap trim ring into place.
Wiring Connections
The chart below the connection for each wire in the wiring harness.
Color Connection
Red 12V Ignition / Accessory
Yellow 12V Battery / Memory
Black Ground
Blue Power Antenna / Amp Turn-on
Grey Right Front (+)
Grey/Black Right Front (-)
White Left Front (+)
White/Black Left Front (-)
Violet Right Rear (+)
Violet/Black Right Rear (-)
Green Left Rear (+)
Green/Black Left Rear (-)
AM/FM Tuner Operation
again to
Seek Tuning Press TUNE
second to seek to the next strong station.
Manual Tuning Press TUNE
radio frequency up or down one step at a time. Press and
hold to advance quickly.
Band Press BAND to select between FM1, FM2, FM3, AM1
and AM2 bands. Up to six presets can be programmed
for each band, enabling up to 18 FM stations and 12 AM
stations to be stored in memory.
again to resume
Storing Presets Up to 18 FM and 12 AM stations can be stored. To store
a station, select the desired band and station. Press and
hold the desired preset button (1-6) for more than two
seconds. When stored, the preset number will appear in
the display.
Recalling Preset stations can be recalled any time by pressing the
nn
Presets corresponding preset button.
to adjust
To download the complete Owner's Manual for your radio,
please visit www.dualav.com/support/manuals.php.
Mounting the Head Unit:
Typical DIN mounting
Step 1:
Insert the mounting sleeve
into the installation kit or
dashboard.
Step 2:
Bend multiple
mounting tabs around
the mounting sleeve
until the mounting
sleeve is secure.
Step 3:
Connect all wiring
harnesses and slide
Tip:
When a suitable ground wire is
the head unit into the
not present in the vehicle wiring
mounting sleeve until it
harness, connect the black ground
wire to the vehicle chassis.
Mounting the Head Unit:
Fuse:
ISO mounting
When replacing the fuse, make
sure new fuse is the correct type Using the existing brackets
and amperage. Using an incorrect
or the brackets supplied
fuse could damage the radio.
with the installation kit,
mount the brackets to the
sides of the head unit with
the screws supplied with
the head unit.
nn ll
or TUNE for more than one
nn ll
or TUNE momentarily to move
Fast Forward/
CD-R/CD-RW
Compatibility
Installation
Single DIN Double DIN
Dashboard or
Installation Kit
Mounting Sleeve
Mounting Sleeve
Single DIN Double DIN
Dashboard or Installation Kit Dashboard or Installation Kit
Mounting Sleeve
Mounting Tabs
Mounting Tabs
Double DIN
Single DIN
Dashboard or Installation Kit
Dashboard or Installation Kit
Mounting Sleeve
Head Unit
Head Unit
Single DIN Double DIN
Decorative
Existing
Bezel
Brackets
Decorative
New Bezel
Radio
CD Operation*
Insert CD With the label facing up, insert a standard size CD into
the CD slot. Playback will begin automatically.
Eject CD Press EJECT (located behind the front panel) to eject the
CD. The unit will change to previous mode of operation.
ll
Track Select
Press TUNE to skip to the beginning of the next nn
track. Press TUNE to return to the beginning of the
nn
current track. Pressing TUNE again skips to the
beginning of the previous track.
ll nn
Press and hold TUNE or TUNE
forward or reverse a track.
Reverse
l
Pause II
Press l / to temporarily stop CD playback.
II
Press / again to resume playback.
Intro
Press INT to access the Intro menu, then turn the
volume knob to select one of the following:
• OFF - Cancels the INT function.
• ALL - Plays the first 10 seconds of each track.
Repeat
Press RPT to access the Repeat menu, then turn the
volume knob to select one of the following:
• ALL - Plays all tracks on CD.
• TRACK - Continuously repeats selected track.
Random Press RDM to access the Random menu, then turn
the volume knob to select one of the following:
• OFF - Cancels the RDM function.
• ALL - Plays all tracks in random order.
Some CD-Rs and CD-RWs may be incompatible
with this unit, depending on media type and
recording method. Refer to the online owner's
manual for details.
* Not available on all models.
To download the complete Owner's Manual for your radio,
please visit www.dualav.com/support/manuals.php.
Dashboard or
Installation Kit
Mounting Sleeve
Mounting Sleeve
Existing
Brackets
New
Radio
