Summary of Contents for Axxera AC404iM

  • Page 1 AC404iM INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detachable Face Front Input Front and Rear Inputs...
  • Page 2: Getting Started

    AC404iM INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 3: Wiring Diagram

    10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The AC404iM uses one 10 amp ATM fuse located beside the wiring connector.
  • Page 4: Control Locations - Receiver

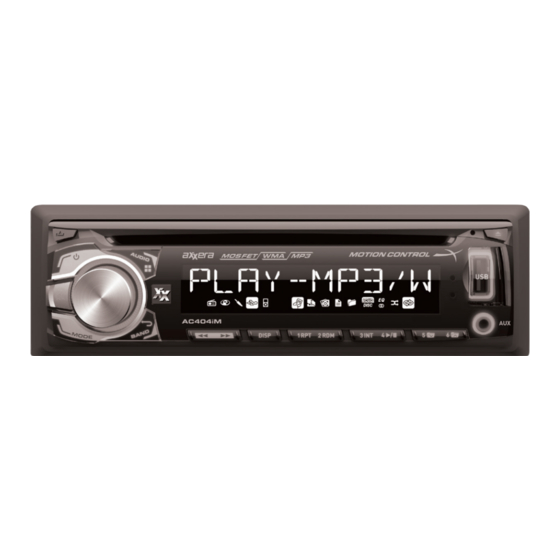

    AC404iM OPERATION Control Locations - Receiver Preset 4 / Play / Pause Release Preset 3 / Intro Power Preset 2 / Random Volume / Select Preset 1 / Repeat Audio / Menu Display USB Port Tune / Track Up Eject...
  • Page 5: General Operation

    NOTE: CD, USB and operation of iPod modes will not appear unless a CD is inserted or USB/iPod devices are connected. The AC404iM offers a 3.5 mm port on the front panel. Use Auxiliary Input to connect audio device, MP3 player, etc.
  • Page 6 General Operation - Setup Menu Menu Function Options Action Press SELECT to seek and save 6 strong stations in the Auto Station AUTO STORE Store current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner Tuning LOCAL ON mode only).
  • Page 7 AC404iM OPERATION General Operation Press AUDIO/MENU momentarily to select between Bass, Audio Treble, Balance, Fader, Subwoofer and Source Volume Level. BASS TREBLE BALANCE FADER LOUD SOURCE LEVEL Press AUDIO/MENU until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 Bass maximum).
  • Page 8 AC404iM OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Press TUNE or TUNE momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly.
  • Page 9: Motion Control

    AC404iM OPERATION Motion Control Motion Control Motion control allows you to use simple hand gestures to Overview controlt the radio. Easily perform most-used functions such as play/pause, volume up/down, and track forwards/ backwards. In Tuner mode Swipe your hand: - Up across the sensor to increase the volume...
  • Page 10: Cd Player Operation

    AC404iM OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation.
  • Page 11 AC404iM OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA When an MP3/WMA encoded disc is first inserted, Disc “DISC READ” will appear in the display. Depending on the number of files and folders, this may take several seconds.
  • Page 12 AC404iM OPERATION CD Player Operation - MP3/WMA Files Folder/File Search MP3/WMA CD mode features a file and folder search Mode mode. This search allows navigating through folders to find a specific MP3 or WMA file for playback. Step 1 Press SELECT to enter the file/folder search mode. A list of all the folders on the CD will be displayed.
  • Page 13 AC404iM OPERATION CD Player Operation - MP3/WMA Files Folder Access Press to select the previous folder. Press to select the next folder. *Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: •...
  • Page 14 AC404iM OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 15 AC404iM OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
  • Page 16: Usb Operation

    Device devices, line up the USB connector and insert the USB (sold separately) device into the AC404iM's USB port. Playing Music When a USB device is first connected, “USB READ” will appear in the display and playback will begin momentarily.
  • Page 17 AC404iM OPERATION USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween song title, artist, file name, folder name, track number and clock/ elapsed time. "NO TITLE" will be displayed if no song title information is available.
  • Page 18 AC404iM OPERATION USB Operation Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 19 AC404iM OPERATION USB Operation Additional MP3/WMA Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/ WMA extension. Sampling Frequency...
  • Page 20: Operation Of Ipod/Iphone

    USB Connection Using the "dock connector to USB" sync cable (provided with the iPod/iPhone device), plug the USB cable into the AC404iM's USB port. Once connected, playback will begin automatically. Controlling a Device Use the following functions to control the device:...
  • Page 21 OPERATION Operation of iPod/iPhone Music Search Menu The AC404iM features a powerful music search that simplifies the searching process. Follow the steps below to find the desired song: Begin Searching Press SELECT to begin the search. The main search menu will appear.
  • Page 22: Displayed Information

    AC404iM OPERATION Operation of iPod/iPhone Displayed Information Displaying Information Press DISP momentarily to select file/folder name (default), song title/artist, track number/clock & elapsed time. SONG TITLE ARTIST ALBUM TRACK NUMBER/TOTAL TRACKS CURRENT TRACK NUMBER ELAPSED TIME/CLOCK Character Support Maximum character display information •...
  • Page 23: Device Compatibility

    AC404iM OPERATION Operation of iPod/iPhone Device Compatibility • iPod touch (6th generation) Made for • iPod nano (6th generation) • iPod touch (5th generation) • iPod nano (5th generation) • iPod touch (4th generation) • iPod nano (4th generation) • iPod touch (3rd generation) •...
  • Page 24: Pandora Operation

    AC404iM OPERATION Pandora Operation Requirements Control for Pandora requires: • An iPhone device with a reliable data connection, or an iPod touch that is connected to wireless internet. • The Pandora App installed on the iPhone/iPod device. • An active account with Pandora. Sign up at www.pandora.
  • Page 25: Specifications

    AC404iM OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:...
  • Page 26: Limited One Year Warranty

    AC404iM OPERATION Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual.
  • Page 27: Troubleshooting

    AC404iM OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground...
  • Page 28: Fcc Compliance

    FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
