AV714BH

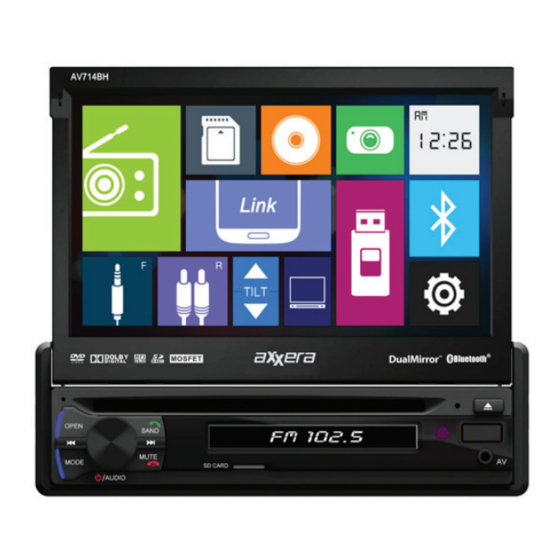

DVD Multimedia Receiver with 7" LCD,
Bluetooth® and DualMirror™
This Quick Start Guide gives you the basics to
start using your AV714BH. Please visit
www.axxeraaudio.com/downloads/manuals/av714bh.pdf
download a complete owner's manual or call customer
service at 1-866-382-5476 (Monday-Friday, 9AM-5PM EST).
Installation
Copyright and Trademark Notes
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DVD Logo is a
trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.
SD Logo is a trademark of SD-3C, LLC. iPod and iPhone are trademarks of Apple Inc., registered in the U.S.
and other countries. Dual Electronics Corporation is not affiliated with Apple, Inc. Other trademarks and
trade names are those of their respective owners.
Wiring Diagram - Inputs/Outputs
Control Locations
12
11
10
9
8
6
7
1. Reset - Press and hold to switch back to the original factory settings.
This will erase all preset radio stations.
2. Eject
-
Press to eject disc.
3. USB
4. Auxiliary A/V Input
5. SD Card Slot
6. Track Up
7. Mute/End
8. Volume and EQ Setup
9. Mode
10. Track Down
11. Open/Close Button
12. Band/Talk
Remote Control
1. Power
12. Setup
2. Eject
13. Search
3. Mode
14. Repeat
4. Open
15. Angle/#
5. Up
16. Audio/*
6. Menu
17. OSD
7. Volume Up
18. Zoom/Talk
8. Mute
19. ESC
9. Select
20. Band
10. Enter
21. Volume Down
11. Root/Call END
22. Play/Pause
23. Down
5
1
2
3
4
23
22
21
20
19
18
17
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
