Summary of Contents for Axxera ACPM6628BT
Page 1

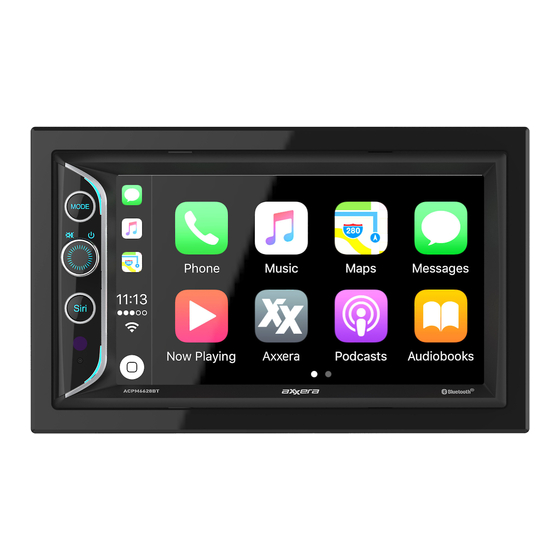

ACPM6628BT INSTALLATION/OWNER’S MANUAL ® Multimedia Receiver with Bluetooth featuring a 6.2" Touch Screen Display...
Page 2
Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
ACPM6628BT WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons...
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera ACPM6628BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
ACPM6628BT Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
ACPM6628BT Wiring Diagram - Inputs/Outputs Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATM mini style fuse located on the power connector.
ACPM6628BT Control Locations Mode IR Remote Sensor Power / Volume / Mute Reset Siri Mode Volume Up Power Tune / Track Up Siri Band Volume Down Preset 3 Preset 2 / Random Preset 6 Preset 5 End Call Bluetooth Talk...
ACPM6628BT Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.
ACPM6628BT General Operation Momentarily press to turn the unit on. Press and hold to turn the Power On/Off unit off. Rotate the volume knob to increase or decrease the volume level. Volume Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume.
Page 11
ACPM6628BT General Operation From the Main Menu screen, select Settings to access the Setup menu Setup Menu and select from eight categories represented by the icons on the top of the screen: System, Fader/Balance, Equalizer, Surround, Supwoofer, Display, Time Settings and Miscellaneous. Select the category, and adjust any of the available options using the touch screen.
ACPM6628BT AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Local / Distance Press to toggle between Local and DIstance tuning.
ACPM6628BT USB Operation To play audio files from a USB device, connect a device to the rear USB cable and playback will begin automatically. To return to USB playback from another mode of operation, select the USB icon in the Main Menu.
ACPM6628BT Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44. 1 /48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz MPEG 1 32 ~ 320kbps...
Page 15
ACPM6628BT Media Compatibility Media Compatibility The following types of files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) • WMA lossless format • MP3 PRO format, MP3 playlists • RMP format • WAV format •...
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "ACPM6628BT". The Bluetooth passcode is "0000".
Page 17
ACPM6628BT Bluetooth Operation Bluetooth Talk Press to connect a call. Bluetooth Music Press to transfer audio between the unit and mobile phone. Backspace When dialing, press to erase the last digit. Clear When dialing, press to clear all digits entered.
ACPM6628BT iPod Operation Connect an iPod to the unit's rear USB input, and the unit will automatically Connecting an iPod begin iPod playback. To return to iPod playback from another mode of operation, select the iPod icon in the Main Menu.
ACPM6628BT Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
Page 20
ACPM6628BT Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands. At any time during CarPlay operation, you can press this button momentarily to return to the main CarPlay menu screen.
ACPM6628BT Rear RCA Aux Input Auxiliary Input Connect an optional audio source into the RCA (rear) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the ACPM6628BT to be compatible with any steering wheel controls. The following controls are available for most vehicles.
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
ACPM6628BT Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
ACPM6628BT Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to What to do? state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. A Dual Electronics Corp.
