INSTALLATION/OWNER'S MANUAL
AM/FM Receiver with Bluetooth

Advertisement

Table of Contents
loading

Related Manuals for Axxera AXM140BT

Summary of Contents for Axxera AXM140BT

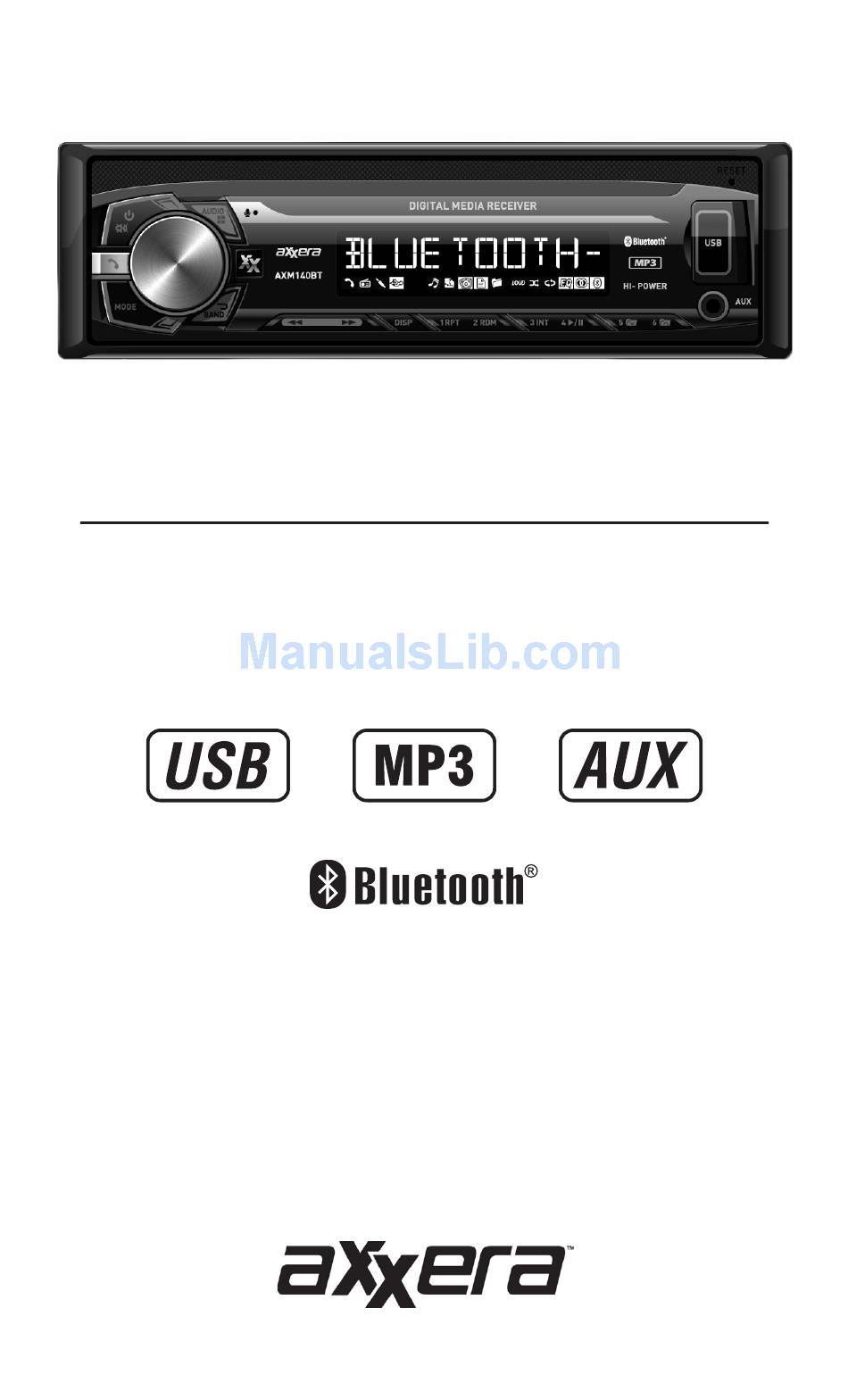

  • Page 1 AXM140BT INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth...

  • Page 2: Getting Started

    AXM140BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    AXM140BT INSTALLATION Wiring Diagram Antenna Connector 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp AGC fuse located...

  • Page 4: Control Locations

    AXM140BT OPERATION Control Locations Power / Mute Preset 3 / Intro Volume Knob Preset 2 / Random Audio / Menu Preset 1 / Repeat USB Port Display Reset Tune Up Auxiliary Input Tune Down Preset 6 / Folder Up Band / Go Back...

  • Page 5: General Operation

    AXM140BT OPERATION General Operation Power On/Off Press or any other button to turn the unit on. Press again to turn the unit off. Mode Press MODE to select between AM/FM, USB, Bluetooth or auxiliary input modes. Modes of operation are indicated in the display. USB mode will not appear unless a USB device is connected.
  • Page 6 AXM140BT OPERATION General Operation Audio / Menu Press the volume knob to select between Bass, Treble, Balance, Fader, Loudness, Distance and Stereo. STEREO BASS TREBLE BALANCE FADER LOUDNESS DISTANCE Bass Press the volume knob until BAS appears. Rotate the volume knob left/right to adjust.

  • Page 7: Usb Operation

    AXM140BT OPERATION AM/FM Tuner Operation Press TUNE or TUNE momentarily to seek to Seek Tuning the next strong station. Press and hold TUNE or TUNE until "MANUAL" Manual Tuning appears, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
  • Page 8 AXM140BT OPERATION USB Operation Repeat Press RPT to choose between: • Current Song - Continuously repeats selected track. • Current Folder - Continuously repeats all files in folder. Random Press RDM to choose between: • Off - Cancels RDM function.
  • Page 9 AXM140BT OPERATION USB Operation Playback Capacity • Maximum number of files: 1024 • Maximum number of folders: 512 • Maximum number of folder levels (sub folders): 8 Note: If the number of files/folders exceeds the maximum outlined above, the additional files/folders will be ignored.
  • Page 10 AXM140BT OPERATION Bluetooth Operation ® Pairing a Device Before you can use a Bluetooth device, it must be paired and Preparation connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The unit broadcasts the pairing signal constantly when Pairing a New Device no devices are currently connected.

  • Page 11: Making A Phone Call

    AXM140BT OPERATION Bluetooth Operation ® Making a Phone Call Manual Dialing • Press once. "Enter Phone Number" will be shown, then an "_" will appear on the display. • Using the remote control, enter the phone number using the 0-9 buttons. Press on the remote control or unit's front panel to begin dialing.

  • Page 12: Bluetooth Operation

    AXM140BT OPERATION Bluetooth Operation ® During a Phone Call Volume Turn the volume knob to adjust the volume level during a phone call. Bluetooth mode has a separate volume level from the main volume of other modes. The unit will remember the volume level in Bluetooth mode and always return to the last volume level for each phone call.
  • Page 13 AXM140BT OPERATION Bluetooth Operation ® Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).

  • Page 14: Troubleshooting

    AXM140BT OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground...

  • Page 15: Limited One Year Warranty

    AXM140BT OPERATION Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual.

  • Page 16: Specifications

    AXM140BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 25dbu Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz Tuning range: 530kHz-1710kHz AM Tuner Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz Speaker output impedance: 4~8 ohms General...

  • Page 17: Fcc Compliance

    AXM140BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.axxeraaudio.com ©2016 Dual Electronics Corp. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. Other trademarks and trade names are those of their respective owners.
