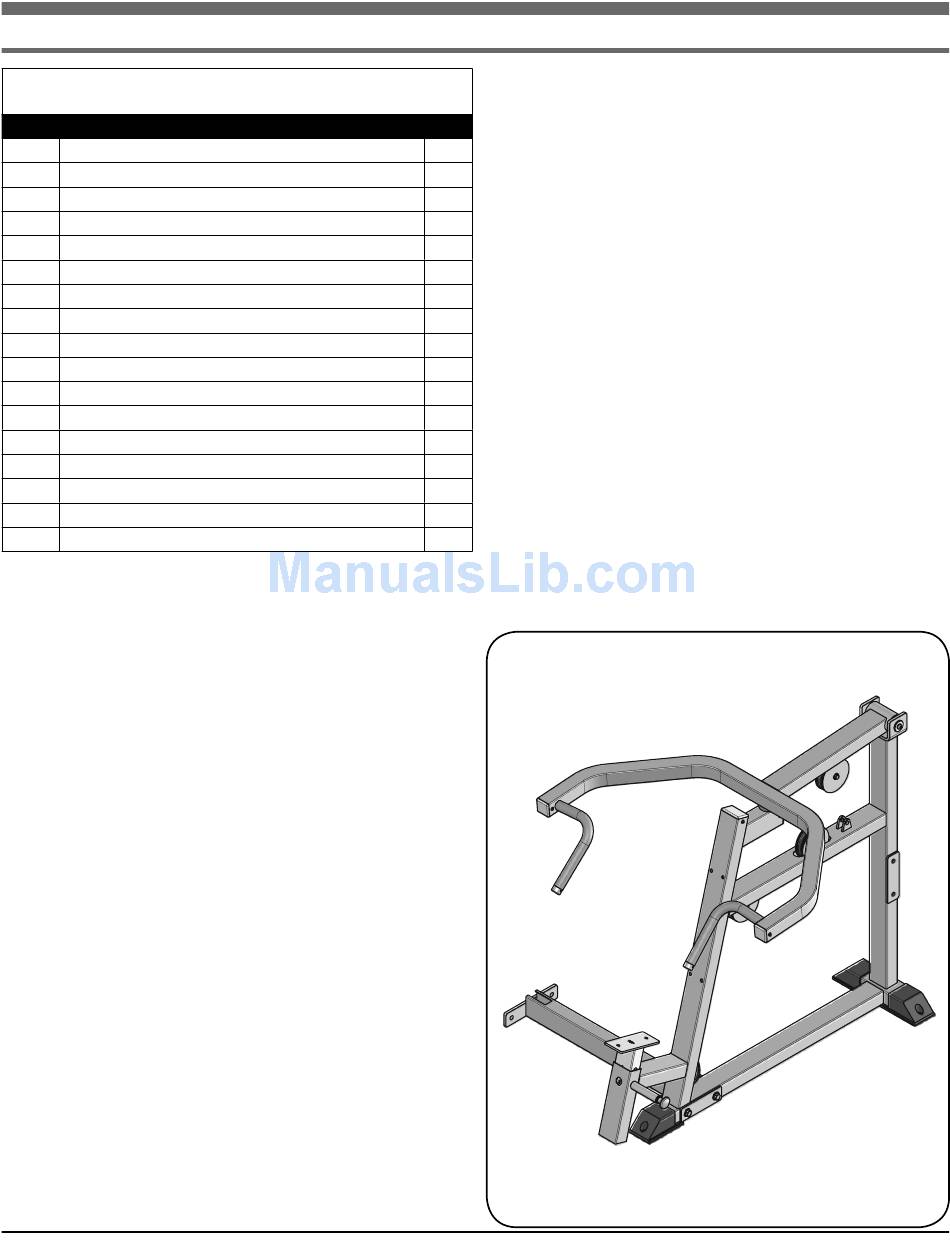

Step 1

Assembly List

ITEM #
4 BOTTOM CROSS BRACE
7 PIVOT AXLE 1 X 5 1/8
8 PRESS BAR
10 SEAT ELEVATION TUBE
14 SHOULDER PRESS MAIN FRAME
25 BUTTON HEAD SCREW B/O 3/8-16 X 1
26 CHROME WASHER 3/8 X 1 1/2
39 FLAT WASHER SAE B/O 1/2"
40 FLAT WASHER SAE B/O 3/8"
45 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 4 5/8
48 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1-3/4
56 NYLON INSERT JAM LOCK NUT B/O 3/8-16
57 NYLON INSERT LOCK NUT B/O 1/2-13
59 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK
60 PLASTIC END CAP 2 X 3
76 SPLIT LOCK WASHER B/O 3/8"
4
DESCRIPTION QTY.
1
1
1
1
1
2
2
4
8
2
4
4
2
4
3
2
SP-4402 Shoulder Press
