Rikon Power Tools 10-320 Owner's Manual

14” woodworking bandsaw with optional miter gauge and fence
Hide thumbs
Table of Contents

Advertisement

Quick Links

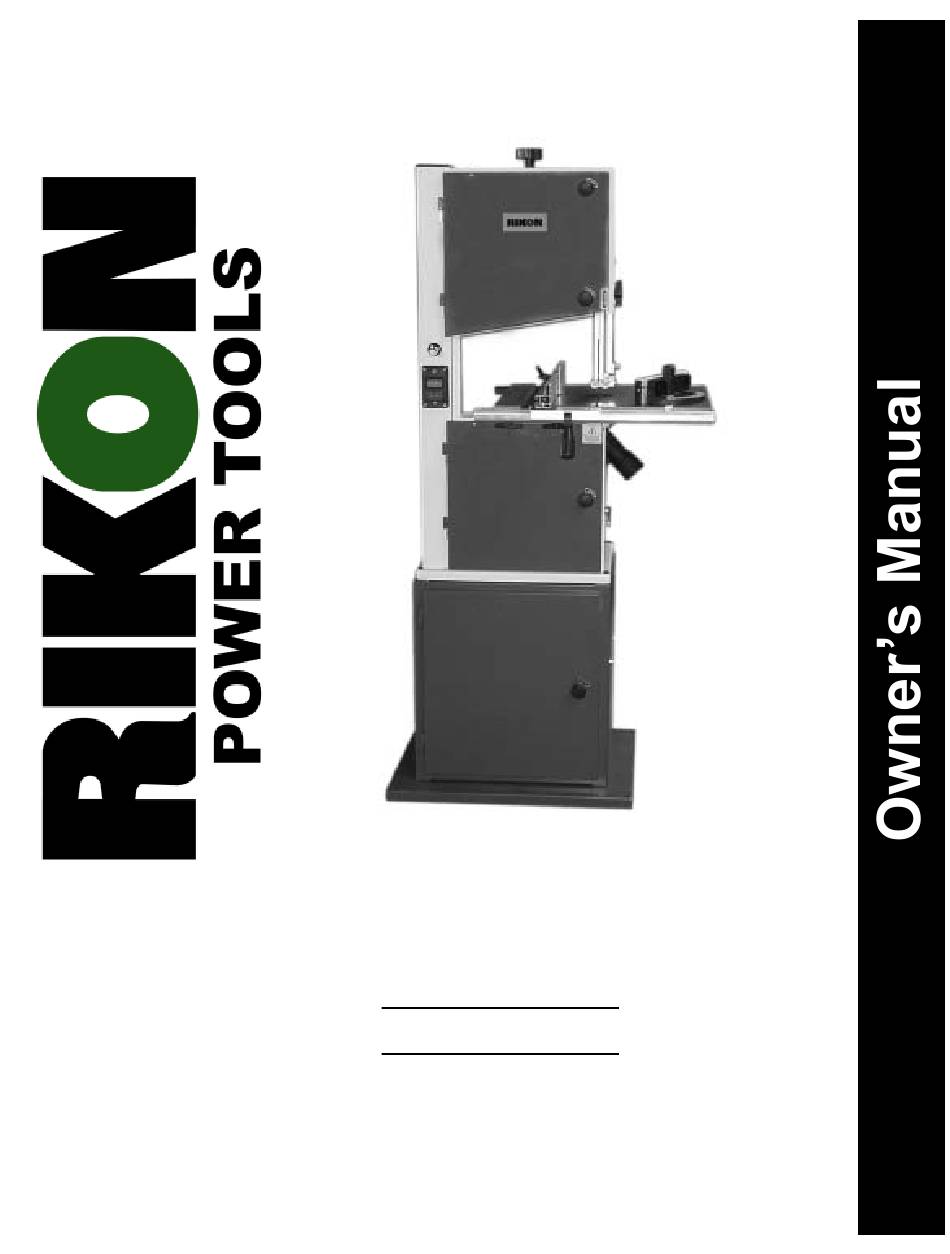

14" Woodworking Bandsaw
Model: 10-320
Shown with Optional Miter Gauge and Fence
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
For more information:
www.rikontools.com
info@rikontools.com
or
For Parts or Questions:
techsupport@rikontools.com
877-884-5167
or
Part # 10-320 M1

Advertisement

Table of Contents
loading

Related Manuals for Rikon Power Tools 10-320

Summary of Contents for Rikon Power Tools 10-320

  • Page 1 Shown with Optional Miter Gauge and Fence Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com 877-884-5167 Part # 10-320 M1...

  • Page 2: Safety Warnings

    Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed.

  • Page 3: Bandsaw Safety Rules

    ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function.

  • Page 4: Table Of Contents

    Table of Contents Safety Warnings..........................2-3 Bandsaw Safety Rules ..........................3 Specifications ............................4 Base Cabinet Assembly...........................5 Assembly........................6 Mounting Saw to the Base Cabinet ........................6 Assembling the Table........................6 Installing the 2-1/2” Dust Port.........................6 Installing the Belt Tension Crank Handle......................7 Assembling the Optional Rip Fence ......................7 Adjustments.........................8 Centering the Table to the Blade ........................8 Setting the Table Square to Saw Blade....................8...

  • Page 5: Base Cabinet Assembly

    Base Cabinet Assembly Assemble base cabinet as shown on a level surface. Hand-tighten all fasteners until the whole cabinet is assembled. Finally, after all the fasteners are tightened, attach the door (#1). Item # DESCRIPTION Item # DESCRIPTION DOOR WASHER – 1/4”-3/4” O/D LEFT END PANEL HEX.

  • Page 6: Assembly

    Assembly Mounting the Saw to the Base Cabinet (Some assistance may be needed for this) The bandsaw has four holes (A) in the base (See Fig.01) to allow it to be bolted to the base cabinet. Lift the saw onto the base cabinet using the frame.

  • Page 7: Installing The 2-1/2" Dust Port

    Installing the 2-1/2" Dust Port Assemble the 2-1/2" dust port to the bandsaw frame with a hex socket head cap screw and washer. Place the 2-1/2" dust port on to the side of the bandsaw frame. Locate two hex socket head cap screws and two washers from the bag of loose parts.

  • Page 8: Adjustments

    Adjustments Centering the Table to the Blade To center the table to the blade, loosen the four M8 nuts (G), which hold the lower trunnion to the bandsaw frame. (See Fig.09) Slide the table sideways until the blade is at the center of the slot in the table insert.

  • Page 9: Checking The Table For Flatness

    Checking the Table for Flatness Once the scale is set to the desired position the table should be checked for flatness. This can be done by using a steel rule as a straight edge. The steel rule should be held on the table across the table slot close to the front edge of the table.

  • Page 10: Replacing The Bandsaw Blade

    Replacing the Bandsaw Blade Unplug the machine from the electrical supply. This ensures that the bandsaw will not accidentally turn on if the ON/OFF switch is bumped. Open the top and bottom band-wheel doors by turning the door locking knobs (A). Remove the Optional Rip Fence Guide (B) from the front of the table by releasing the 4 winged thumb screws (C).

  • Page 11: Tracking The Bandsaw Blade

    Tracking the Bandsaw Blade Unplug the bandsaw from the electrical supply. Set the tracking of the blade before setting the blade guides. Once the blade is installed and tensioned, track the blade by turning the upper band-wheel by hand in a clockwise rotation and adjusting the tracking knob simultaneously (F).

  • Page 12: Adjusting The Cutting Height

    Adjusting the Cutting Height To adjust the cutting height, release the wing nut (A) and move the upper blade guide and guard assembly (B) so that it provides approximately 3/ 16" clearance above the workpiece. (See Fig.23) When set correctly, re-tighten the wing nut (A). Note: The maximum cutting height is 6".

  • Page 13: Adjusting The Blade Tension

    Adjusting the Blade Tension To loosen the tension of the blade, turn the top tension knob counter clockwise (A) and the tension indicator (B) will lower. To tighten the tension of the blade, turn the tension knob clockwise, and the tension indicator will rise. (See Fig.27) Operation Fig.

  • Page 14: Troubleshooting

    Troubleshooting WARNING: FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY TROUBLESHOOTING. TROUBLE PROBABLE CAUSE REMEDY The machine does not 1. No power supply. Check the cable for breakage. work when switched on. 2. Defective switch. Contact your local dealer for repair.

  • Page 15: Electrical Requirements

    Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 16: Wiring Diagram

    Wiring Diagram The machine is supplied with a 3-wire, grounded plug. Should this be changed by the customer, the wires in the mains lead are colored in accordance with the following codes: Green: Ground White: Neutral Black: Live WARNING! This machine must be grounded. REPLACING POWER SUPPLY CABLE Replacement of the power supply cable should only be done by a qualified electrician.

  • Page 17: Parts List

    Parts List Part No. Description Part No. Description 1-CLP17GB894D1B Circlip ring 17x1 1-WSH8GB97D1Z Flat washer 8mm 1-BRG80203GB278D Ball bearing 80203 1-LOC5/16Z Hex.l nut 5/16"x18, self locking 1-JL21022001A Upper wheel assembly 1-WSH6GB97D1Z Flat washer 6mm 1-JL20021006 Upper bearing shaft 1-JL22042003 Bearing mount cylinder w/cap 1-JL20021005A050W Wheel carrier bracket 1-JL21031003...

  • Page 18: Parts Explosion

    Parts Explosion...

  • Page 19: How To Chart

    How-To Chart...

  • Page 20: Notes

    Notes...

  • Page 21: Warranty

    Warranty 2-Year Limited Warranty RIKON Power Tools/Richen Enterprise, Inc. (“Seller”) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of two (2) years from the date the product was purchased at retail. This warranty may not be transferred.
  • Page 22 For more information: 400 West Cummings Park, Suite 1000 Woburn, MA 01801 877-884-5167/781-933-8400 info@rikontools.com www.rikontools.com Printed in China 12/05 Copyright Richen Enterprise, Inc. 2005...
