Commax TP-1L User Manual

Hide thumbs Also See for TP-1L:

See also: User Manual

User Manual

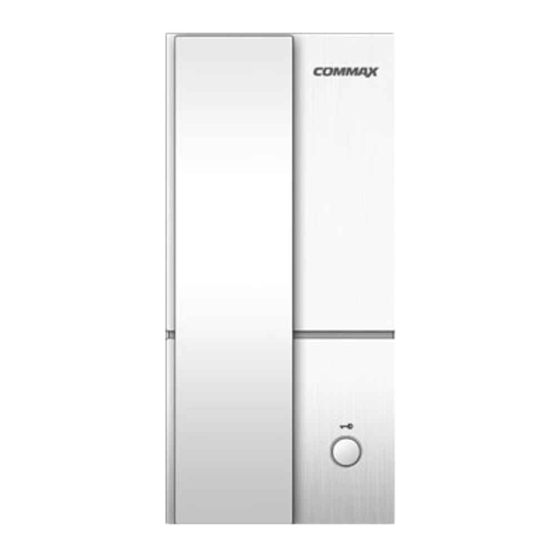

DOOR PHONE TP-1L

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Table of Contents

Need help?

Do you have a question about the TP-1L and is the answer not in the manual?

Page 1 User Manual DOOR PHONE TP-1L • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2 The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon Handset your COMMAX dealer regarding this product. Call Button Model No. Serial No.
Page 3 5. Wiring 3. Operation The unit may also be used with 6VDC power supply. 1. Depress the battery lid to open and install 4 standard AA type 1.5V It is required to use Voltage Regulation DC Power batteries by connecting the snap-on lead to the battery terminals. Supply for safety operation.
Page 4 10 mA Maximum current 40 mA Effective distance 2Km(O.65mm) /1 .25miles(22 AWG) 98(W) x 208(D) x 65(H)mm Dimensions 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.04.105...
