Commax TP-6AC Installation Manual

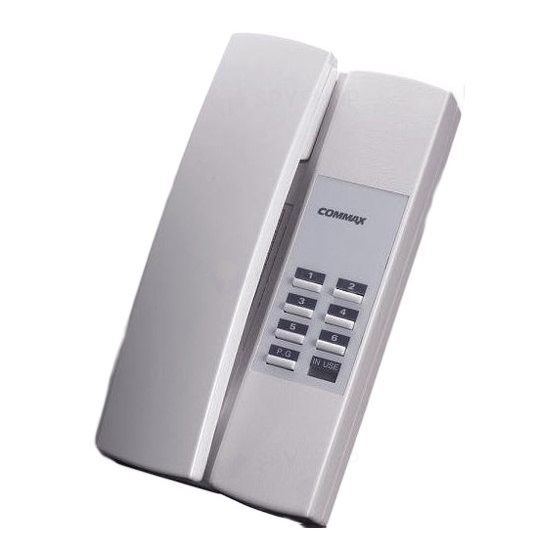

TP–6/12AC
[ Picture 2 ]
RF-1A
Installation manual
1. Installation tools & parts : Nipper, Screw driver, UTP cable(Cat 5.E)
2. Products : TP-6/12AC , RF-1A
3. Wiring & setting method
3-1. Place the TP-6AC(12AC) upside down on the target place like [Picture 1]
3-2. Tighten the 4 screws with a proper screw driver ▶ Connect wires like [Picture1]
▶ Be sure not to change the sequence of wires.
3-3. After finishing connecting wires, tighten the screws.

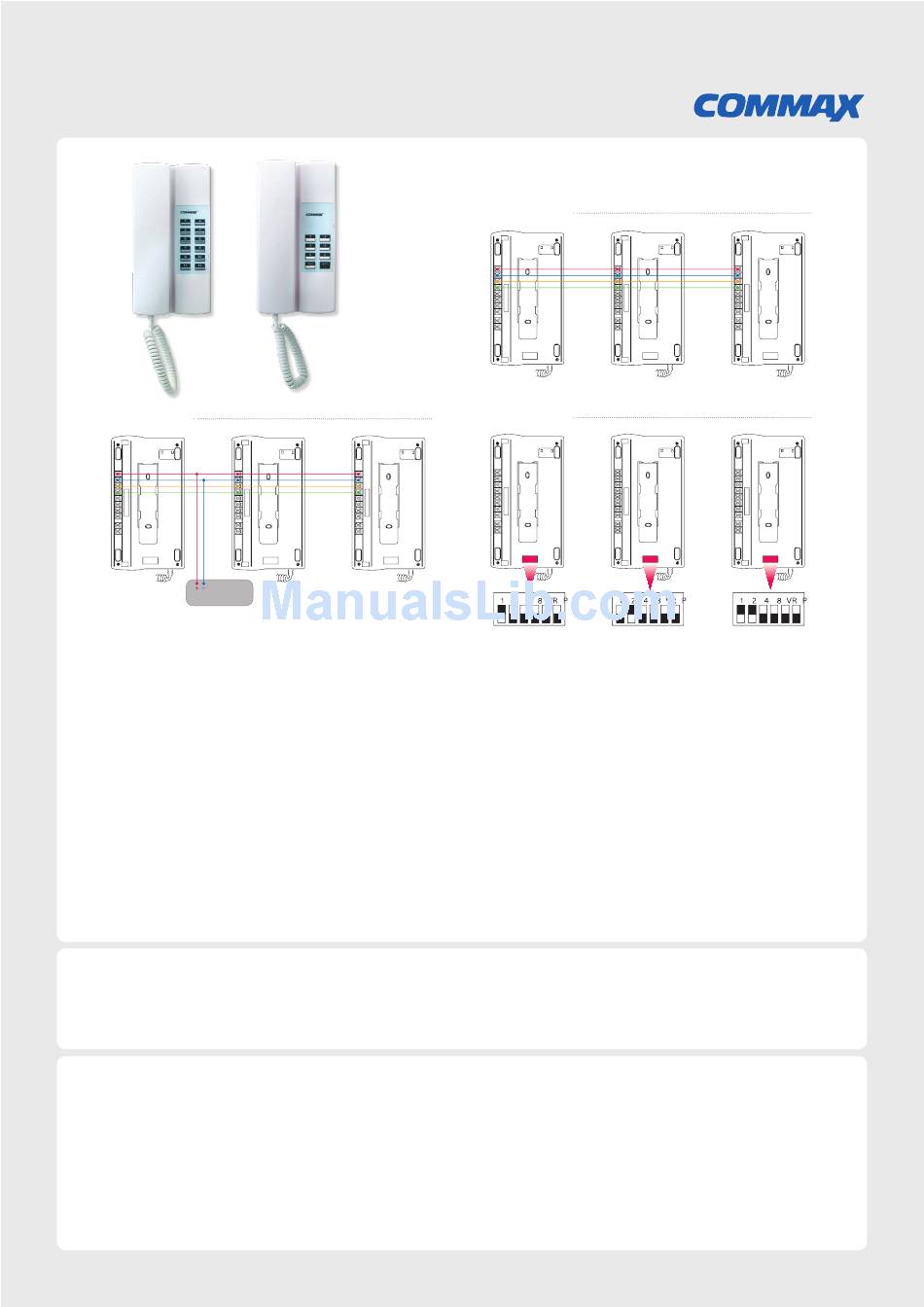

3-4. Connect wires of "RF-1A" to the products, No.1 with "+"wire, No.2 with "-"wire. Like [Picture 2]
4. Number Setting
4-1. The first, second and third connected products can be set by switch up at DIP switch of each product like [Picture 3]
- DIP switch setting & wiring for other extension units, refer to user manual.
* "V/R" S/W is for bell sound volume control.
* "P"S/W is the function to talk without picking up the phone when interphone receive a call from other interphone
which is working with [Broadcasting] button
Cautions for installation
1. Total connected cable length shouldn't be over 500M between first & last product (0.65m/m)
2. Be sure not to change the wiring sequence.

Troubleshooting

1. A voice through the phones feels quite low or they are not working at all.
▶Test the interphones with short wires than normal or connected 1 more power source.
2. It doesn't make a call to the targeted interphone
▶Check setting of DIP switches after turn it all down
3. A user can hear the voice coming from other connected products.
▶It is a sign of working properly. Conference call is supported.
[ Picture 1 ]
[ Picture 3 ]
