User Manual

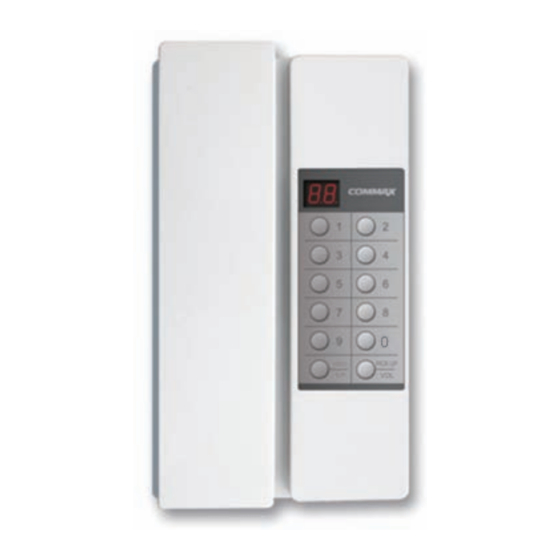

DIGITAL INTERPHONE
TP-90RN
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-90RN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax TP-90RN

Summary of Contents for Commax TP-90RN

  • Page 1: User Manual

    User Manual DIGITAL INTERPHONE TP-90RN • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.

  • Page 2: System Features

    2. System Features Contens 1. Overview ......... 2 For offices, schools, factories, administration buildings, backs, warehouse, institutions and stores in the large capacity of 2. System Features...... 2 communication, the multiplexed, multi digital channel handset 3. Operation ........ 3 system provides convenient communication over 10 common wiring. 4.

  • Page 3: Operation

    3. Operation 3-1. Communication Functions - Lift the hand set or press the speaker button to hear a dial tone. when all channels are engaged, FU is displayed on LED and a busy tone will sound when lift the handset, ●...
  • Page 4 All paging : this function allows paging to all stations. - Lift the handset or press No. 0 twice. - 'PA' will appear on the LED screen and a chime will sound. - Announce message via handset. Group paging : this function allows paging to one of four groups(ref. Table 1) - Lift the handset and press transmit number(01-04) of the group you wish to page.
  • Page 5 1) Lift handset or press the speaker button. 2) Press No. 05 (05 will appear on top half of the LED screen) 3) Press the station's number. (The number will appear on bottom half of the LED) 4) Replace the handset or depress the speaker button again. 5) The station number will flash on the botton half of the LED to indicate the assignment is completed.
  • Page 6 3-10. Parallel Connection Two or three stations can be operated on the same ID number. This allows more units to be connected to the system. - Set the same ID number to the units. - All units will ring when the ID number is called. - When the call is answered the other station(s) are free.

  • Page 7: Installation

    DEVICE 1 DEVICE 2 DEVICE n - One adapter DC 24V can cover up to 8 pieces of TP-90RN - Units should be within 1Km of the power adaptor. - Use extra power adapter if a unit is more than 1Km.
  • Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.06.104...
