User Manual

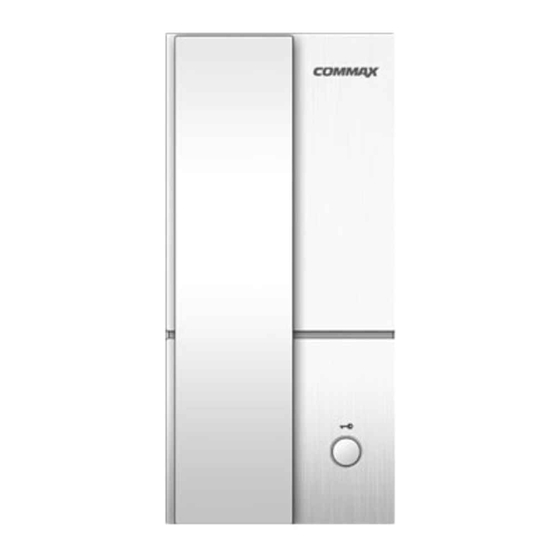

DOOR PHONE TP-1L
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax TP-1L
Summary of Contents for Commax TP-1L
-
Page 1: User Manual
User Manual DOOR PHONE TP-1L Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction .............2 2. Important Safeguards ........3 3. Overview............4 4. Operation ............5 5. Connection .............6 6. Wiring..............7 7. Specifications..........8... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: when the power is damaged. if liquid has been spilled or objects have fallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Overview
3. Overview Controls and functions ① Volume Switch ② Handset ③ Call Button ④ Handset Cord... -
Page 6: Operation
4. Operation 1. Depress the battery lid to open and install 4 standard AA type 1.5V batteries by connect- ing the snap-on lead to the battery terminals. 2. When you want to talk with the other party, raise the handset and press the call button, this sends a call tone to the other station. -
Page 7: Connection
5. Connection... -
Page 8: Wiring
6. Wiring The unit may also be used with 6VDC power supply. It is required to use Voltage Regulation DC Power Supply for safety operation. ⇧ ⇧ ⇧ Intercom Battery Power Supply... -
Page 9: Specifications
7. Specifications Operating voltage Output 0.2W at 8 Idling current 10 mA Maximum current 40 mA Effective distance 2Km(O.65mm) /1 .25miles(22 AWG) Dimensions 98(W) x 208(D) x 65(H)mm... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.07.105...
