WM

Operating Instructions

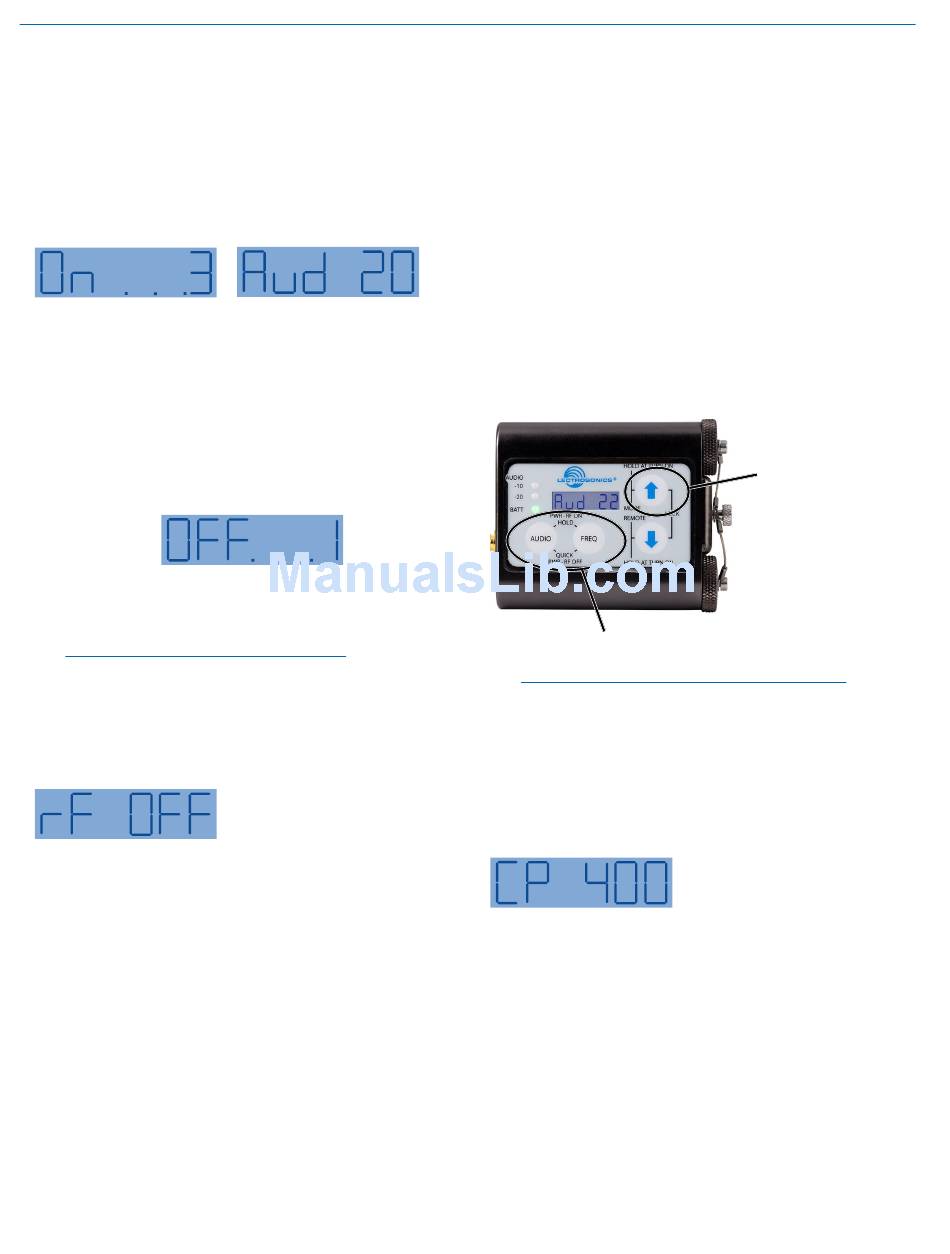

Power Up and Boot Sequence

Simultaneously press and hold the AUDIO and FREQ
buttons until the startup count is completed. The
screen will display a count from 1 to 3 as the unit boots
up, then it switches to the Audio screen. As the unit
turns on, the Modulation LEDs and PWR LED all glow
red, then green, and then revert to normal operation.
The LCD displays a boot sequence which consists of
four screens ending with the audio screen similar to
this example:
• Company name:
• Frequency block/Firmware Ver.:
• Power level:
• Compatibility mode:
• Audio (Input gain):

Power Down

Simultaneously
press and hold the
FREQ buttons while observing that the word "OFF"
appears in the LCD along with a counter. The screen will
display a countdown from 3 to 1 and the unit will then
turn off.
Note: If the AUDIO and FREQ buttons are
released before the LCD goes blank at the end of
the countdown, the unit will not turn off. Instead,
it will stay energized and the display will return to
the previous screen.

Standby Mode

mode the RF output is turned off so adjustments can
be made without interfering with other systems operat-
ing in the same location. The LCD displays rf OFF to
remind you that the unit is not transmitting.
Use the AUDIO and FREQ buttons to access the vari-
ous setup screens. When the adjustments are com-
plete, press both the AUDIO and FREQ buttons briefly
to save the settings and turn the unit off.
8
Lectro
b25r2.4
Pr 100
CP 400
Aud 22
AUDIO and
Quickly press both AUDIO
and FREQ buttons to enter
the "standby" mode. In this
Compatibility, Output Power, Bias Voltage
(phantom power), LCD Backlight and
Tuning Step Size Selector
Five different setup screens are accessed in a setup
mode that is accessed with a special button sequence.
• Compatibility Mode
• Output Power
• Bias Voltage (phantom power)
• LCD Backlight Settings
• Tuning Step Size Selector
Hold the UP arrow button and simultaneously press
the AUDIO and FREQ buttons. The compatibility setup
screen will appear. Each successive press of the
AUDIO button will step through the other four setup
screens.
Then press the AUDIO and FREQ
buttons at the same time
Note: The unit is automatically set to "standby" in
this setup mode, however, the rF OFF reminder
will not be displayed.
Compatibility Mode
In addition to its native Digital Hybrid mode, the trans-
mitter will operate with Lectrosonics 100 Series, 200
Series and IFB receivers, as well as several analog
receivers from other manufacturers.
• CP 100: 100 Series mode
• CP 200: 200 Series mode
• CP 3: Mode 3 (contact the factory for details)
• CP 400: 400 Series mode
• CP IFB: IFB Series mode
• CP 6: Mode 6 (contact the factory for details)
Hold the UP
arrow button
From this screen, use the
UP and DOWN arrows to
select the desired mode.
