Fluke 113 Instruction Sheet page 3

Electrical multimeter
Table of Contents

Advertisement

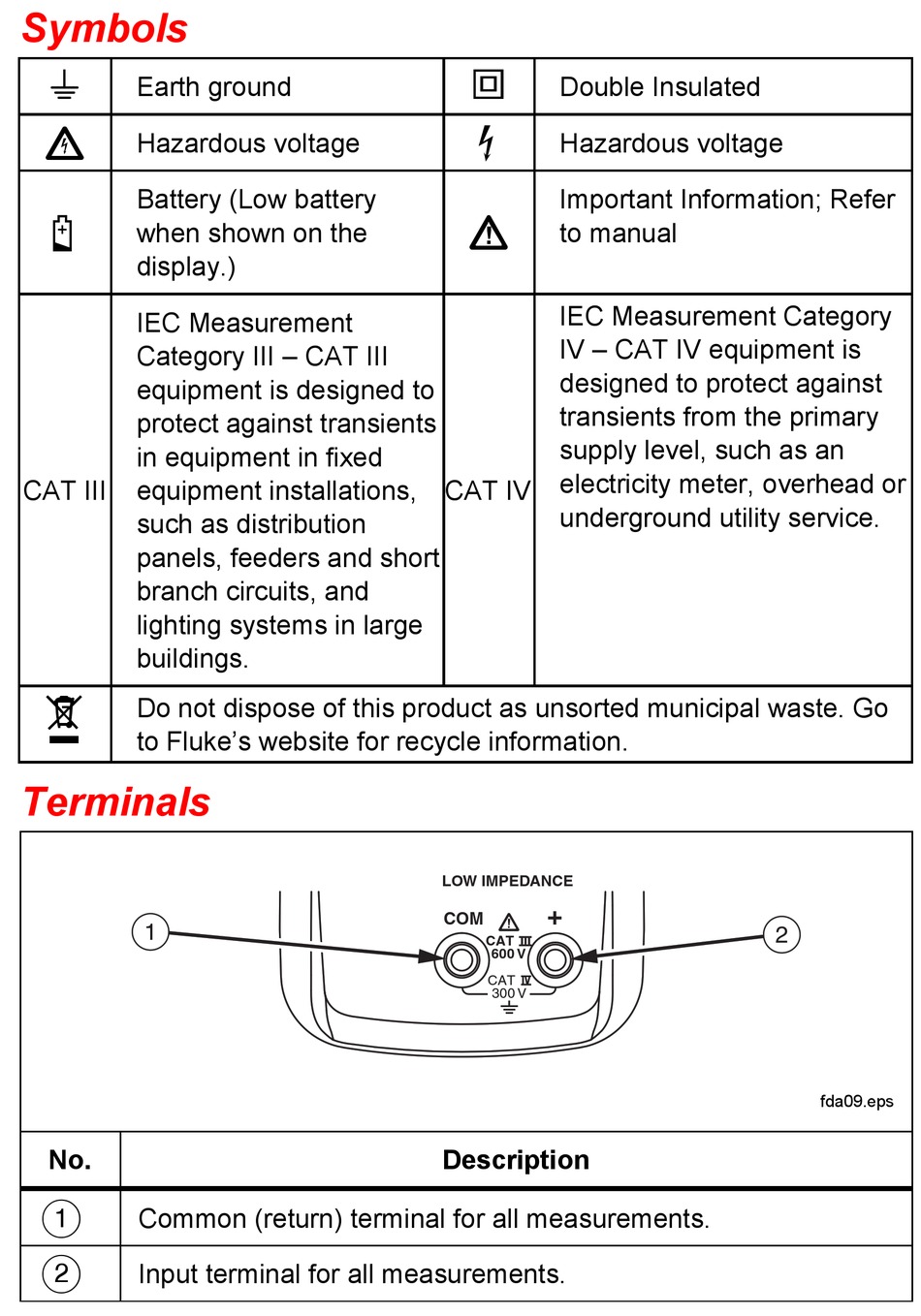

Symbols
J
Earth ground
X
Hazardous voltage
Battery (Low battery
N
when shown on the
display.)
IEC Measurement
Category III – CAT III
equipment is designed to
protect against transients
in equipment in fixed
CAT III
equipment installations,
such as distribution
panels, feeders and short
branch circuits, and
lighting systems in large
buildings.
Do not dispose of this product as unsorted municipal waste. Go
~
to Fluke's website for recycle information.
Terminals
1
No.
A
Common (return) terminal for all measurements.
B
Input terminal for all measurements.
T
Double Insulated
Y
Hazardous voltage
Important Information; Refer
W
to manual
IEC Measurement Category
IV – CAT IV equipment is
designed to protect against
transients from the primary
supply level, such as an
electricity meter, overhead or
CAT IV
underground utility service.
LOW IMPEDANCE
+
COM
CAT
600 V
CAT
300 V
Description
2
fda09.eps
