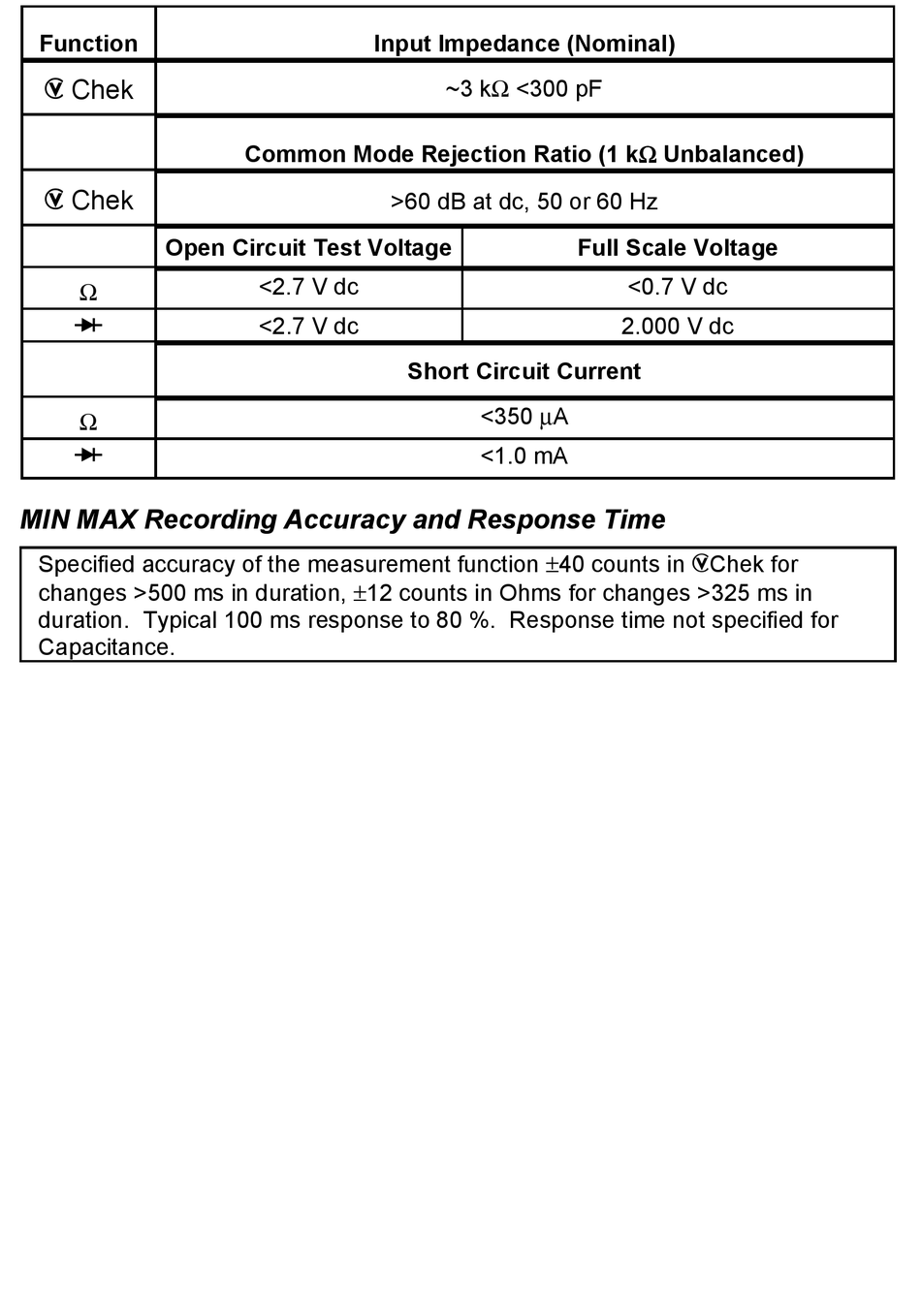

Function
k Chek
k Chek
Open Circuit Test Voltage
Ω
R
Ω
R
MIN MAX Recording Accuracy and Response Time
Specified accuracy of the measurement function ±40 counts in kChek for
changes >500 ms in duration, ±12 counts in Ohms for changes >325 ms in
duration. Typical 100 ms response to 80 %. Response time not specified for
Capacitance.
Input Impedance (Nominal)
Common Mode Rejection Ratio (1 kΩ Unbalanced)
>60 dB at dc, 50 or 60 Hz
<2.7 V dc
<2.7 V dc
Short Circuit Current
~3 kΩ <300 pF
Full Scale Voltage
<350 μA
<1.0 mA
<0.7 V dc
2.000 V dc
