Signal connections

Analog input

You can connect up to eight analog input connections to the screw terminal containing pins 1 to 20 (
through .) Connect unused analog input terminals to ground terminals during operation. For example, if
CH7 IN
you are not using terminal 15 (
All analog input channels are configured for single-ended input mode. All analog input signals are referenced to
ground ( AGND ):

Connect the wire carrying the signal to be measured to

Connect the second wire to
The input voltage ranges are ±10 V, ±5 V, ±2.0 V, ±1.0 V.
For more information on analog signal connections
For more information on single-ended inputs, refer to the Guide to Signal Connections (this document is
available on our web site at www.mccdaq.com/pdfs/DAQ-Signal-Connections.pdf.

Channel-Gain queue

The channel-gain queue feature allows you to configure a different gain setting for each channel. The gain
settings are stored in a channel-gain queue list that is written to local memory on the device.
The channel-gain queue list can contain up to eight unique elements. The channel list must be in increasing
order. An example of a five element list is shown in the table below.

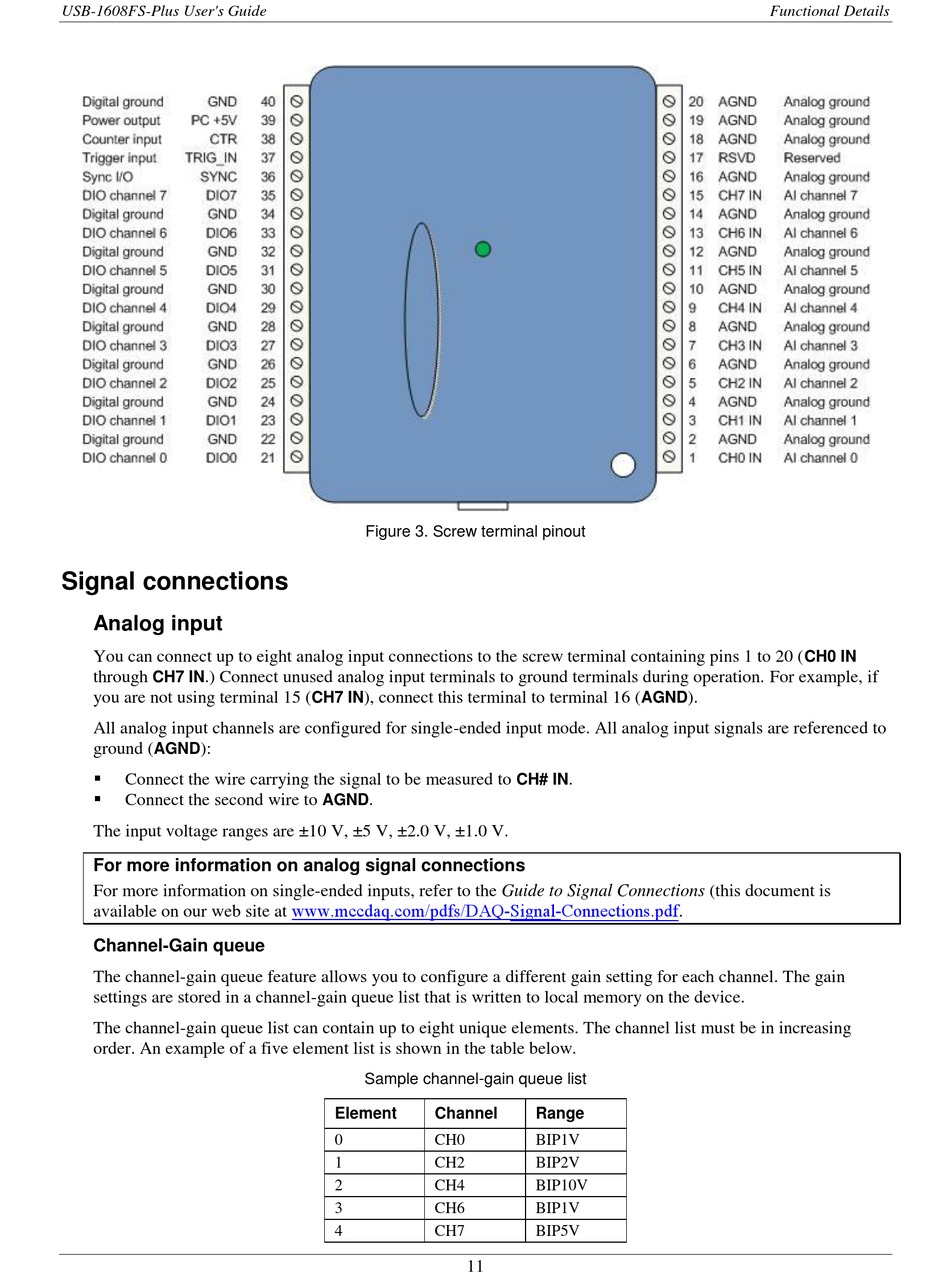

Figure 3. Screw terminal pinout
CH7 IN ), connect this terminal to terminal 16 (
AGND .
Sample channel-gain queue list
Element Channel
0 CH0
1 CH2
2 CH4
3 CH6
4 CH7
11
AGND ).
CH# IN .
Range
BIP1V
BIP2V
BIP10V
BIP1V
BIP5V
