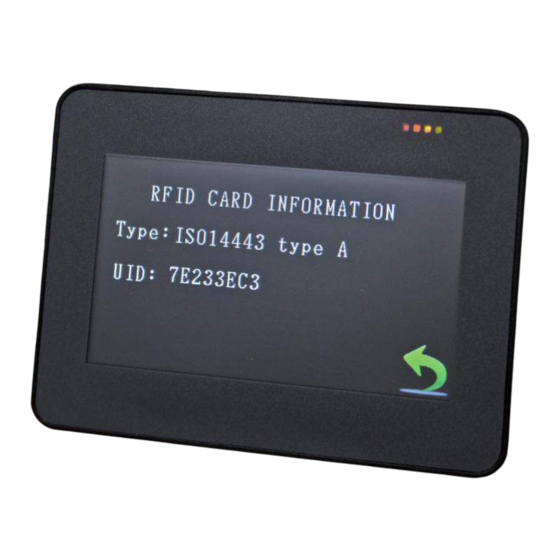

Dmp vortex86 exm processor and compact panel pc with 4.3” touchscreen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

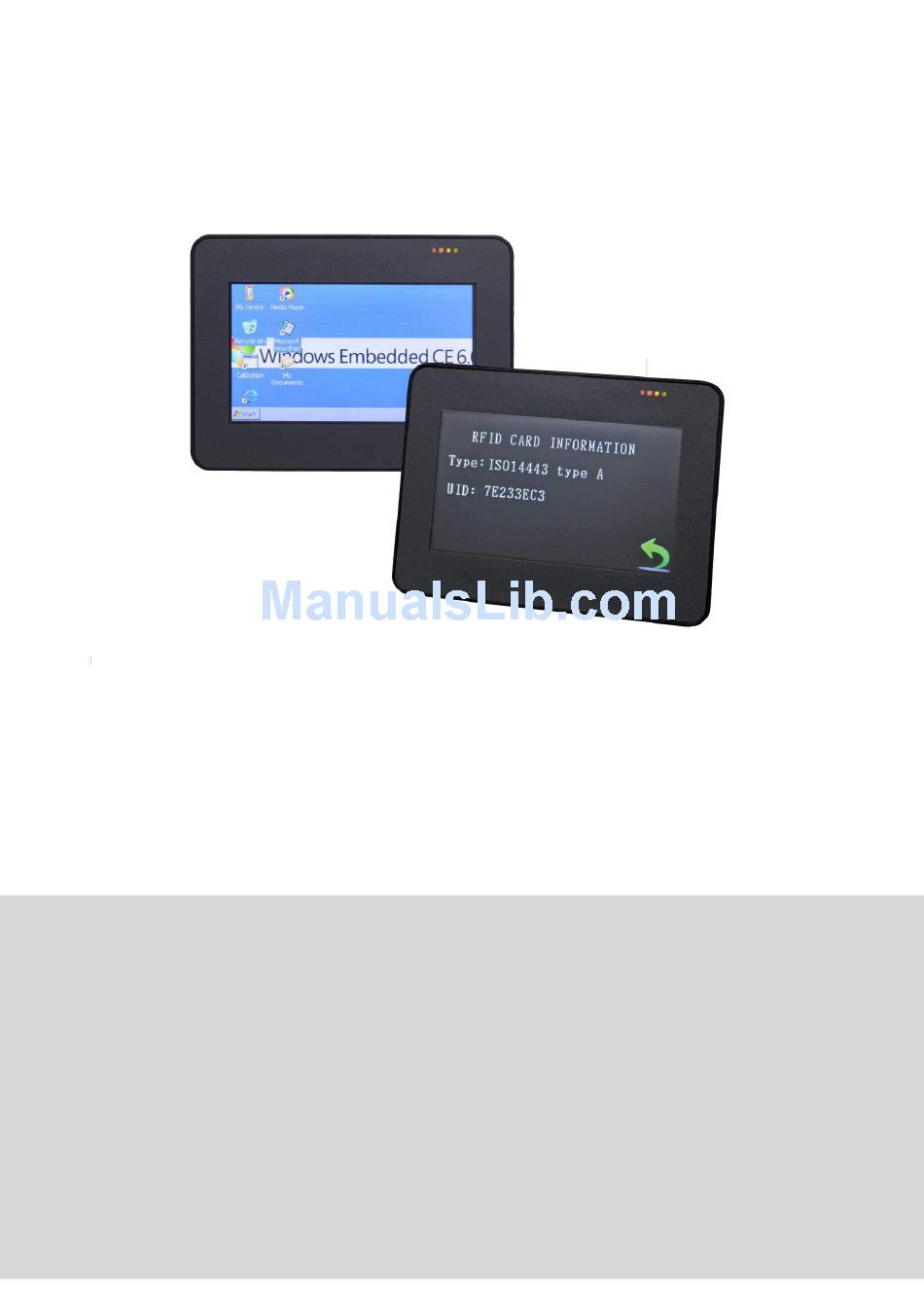

User's Manual
HMI-043T with RFID
DMP Vortex86 EXm Processor
Compact Panel PC with 4.3" Touchscreen
HMI-043T User's Manual
HMI-043T-EM41N-BF / BF01 / BF02
HMI-043T-EM41B-BF / BF01 / BF02
HMI-043T-EM42N-BF / BF01 / BF02
HMI-043T-EM42B-BF / BF01 / BF02
IUMHMI043T-01 Ver.1.0A Jul, 2014
(Version 1.2A)
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMI-043T-EM41N-BF and is the answer not in the manual?

Questions and answers

Related Manuals for ICOP Technology HMI-043T-EM41N-BF

Summary of Contents for ICOP Technology HMI-043T-EM41N-BF

  • Page 1 User’s Manual HMI-043T with RFID DMP Vortex86 EXm Processor Compact Panel PC with 4.3” Touchscreen HMI-043T-EM41N-BF / BF01 / BF02 HMI-043T-EM41B-BF / BF01 / BF02 HMI-043T-EM42N-BF / BF01 / BF02 HMI-043T-EM42B-BF / BF01 / BF02 (Version 1.2A) HMI-043T User’s Manual...
  • Page 2 REVISION DATE VERSION DESCRIPTION 2016/08/17 Version 1.0A New Release 1. Correct the website Section 3.1 2016/09/09 Version 1.1A 2. Correct Memory description of Hardware Specifications 2017/04/14 Version 1.2A 1. Add serial number code on section 1.5. 2.Add pin assignment and standard pinout for PoE on RJ45.

  • Page 3: Safety Information

    SAFETY INFORMATION  Read these Safety instructions carefully.  Please carry the unit with both hands, handle carefully.  Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.  Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.

  • Page 4: Table Of Contents

    Content Content ..........................iv Ch. 1 General Information ....................1 1.1 Product Description ....................2 1.2 Product Specifications ..................... 3 1.3 Inspection standard for TFT-LCD Panel ..............6 1.4 Product Dimensions ....................8 1.5 Ordering Information ....................10 Ch. 2 System Installation ....................13 2.2 Connector Summary ....................

  • Page 5: Ch. 1 General Information

    General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Odering Information HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 6: Product Description

    1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new HMI, which offers fanless design, low power consumption, and IP65 front panel. The HMI-043T with RFID is powered by DMP Vortex86Exm SoC, the new generation SoC of Vortex86 family, which is included 128MB/256MB memory, eMMC Flash memory, and RFID reader.

  • Page 7: Product Specifications

    1.2 Product Specifications HARDWARE SPECIFICATIONS DMP Vortex86Exm 400MHz BIOS Coreboot BIOS L1:16KB I-Cache, 16KB D-Cache Cache L2: 4-way, 128KB L2 Cache Memory Integrated 128MB / 256MB DDRIII Nand-Flash 512MB/4GB eMMC onboard (Optional) Integrated 10/100Mbps Ethernet x 1 Wireless / Network HF RFID Reader x 1 Optional upon 10/100Mbps Ethernet port x 1...
  • Page 8 MECHANICAL & ENVIRONMENT HMI-043T-EM4XX-BF series: +5VDC Power Requirement HMI-043T-EM4XX-BFXX series: +7 ~ 24VDC HMI-043T-EM4XX-BF series: +5V@2A Power Consumption HMI-043T-EM4XX-BFXX series: +12V@1A 0~+50°C (+32~+122°F) / -20~+60°C (-4~+140°F) Operating Temperature -30~+70°C (-22~ +158°F) Storage Temperature Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing HMI-043T-EM4XX-BF series: 129.1 x 95.0 x 13.9mm (5.08 x 3.74 x 0.55 inches) Dimensions...
  • Page 9 TOUCHSCREEN Type Analog Resistive Resolution Continuous Surface Properties 3H / Anti-Glare Transmittance Controller PS/2 interface Software Driver DOS / Linux / WinCE Durability 1 million HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 10: Inspection Standard For Tft-Lcd Panel

    1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ It’ OK if mura is slight visible through 6%ND filter Mura A Grade B Grade...
  • Page 11 [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot.

  • Page 12: Product Dimensions

    1.4 Product Dimensions HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 13 HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 14: Ordering Information

    1.5 Ordering Information SERIAL NUMBER CODE: Product CPU Type CPU Clock Flash onboard Code Size 043T EM(EXm) 3 (300MHz) 1 (128MB) N (No Flash) O (Open Frame) 4 (400MHz) 2 (256MB) B (512MB) B (O type + Case) E (4GB) B01 (B type + I/O board with case) B02 (B type + PoE I/O board with case) BC1(B type + CAN I/O board with case)
  • Page 15 ORDING INFORMATION: PART NUMBER DESCRIPTION 4.3” HMI w/128MB/RFID/8MBSPI/2U/1S/485/GPIO HMI-043T-EM41N-BF /SPK/CAN/Front panel, but without daughter board 4.3” HMI w/128MB/RFID/512MBeMMC/8MBSPI/2U/1S HMI-043T-EM41B-BF /485/GPIO/SPK/CAN/Front panel, but without daughter board CAN/Front panel, but without daughter board 4.3” HMI w/256MB/RFID/8MBSPI/2U/1S/485/GPIO HMI-043T-EM42N-BF /SPK/CAN/Front panel, but without daughter board 4.3”...
  • Page 16 PACKING LIST PART NUMBER PACKAGE HMI-043T-EM41N-BF HMI-043T-EM41N-BF *1 HMI-043T-EM41B-BF HMI-043T-EM41B-BF *1 HMI-043T-EM42N-BF HMI-043T-EM42N-BF *1 HMI-043T-EM42B-BF HMI-043T-EM42B-BF *1 CABLE-265OP-SET CABLE-265OP-485-15 (Optional) CABLE-265OP-COM-15 CABLE-265OP-GPIO-15 CABLE-265OP-LAN-15 CABLE-265OP-USB-15 CABLE-265OP-USB-15-1 x 1 HMI-043T-EM41N-BF01 HMI-043T-EM41N-BF01 *1 HMI-043T-EM41N-BF02 HMI-043T-EM41N-BF02 *1 HMI-043T-EM41B-BF01 HMI-043T-EM41B-BF01 *1 HMI-043T-EM41B-BF02 HMI-043T-EM41B-BF02 *1 HMI-043T-EM42N-BF01...

  • Page 17: Ch. 2 System Installation

    System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 Connector I/O & LEDs Overview 2.5 Wall Mount Kit Overview HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 18 2.1 CPU Board Outline HMI-043T-EM4XX-BF type (without daughter board): HMI-043T-EM4XX-BF CPU Board HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 19 HMI-043T-EM4XX-BFXX type: HMI-043T-EM4XX-BFXX CPU Board LAN1 HMI-043T-EM4XX-BFXX I/O Board HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 20: Connector Summary

    2.2 Connector Summary HMI-043T-EM4XX-BF type (without daughter board): Description Type of Connections Pin # Expansion slot 1.27mm 32x2-pin female box header 64-pin Expansion slot 1.27mm 32x2-pin female box header 64-pin GPIO 1.25mm 10-pin wafer 10-pin JTAG (Debug USE) 1.25mm 6-pin wafer 6-pin 0.8mm 5-pin wafer 5-pin...
  • Page 21 HMI-043T-EM4XX-BFXX type: Description Type of Connections Pin # Expansion slot 1.27mm 32x2-pin female box header 64-pin Expansion slot 1.27mm 32x2-pin female box header 64-pin External USB Connector 6-pin External USB Connector 6-pin COM2 RS232/485 or CAN bus External D-Sub Male Connector 9-pin COM2: RS232/485 setting Pin Header, 2.54mm, 1x2...

  • Page 22: Connector Pin Assignments

    2.3 Connector Pin Assignments J1A/J1B: Expansion Slot J1A1 J1A2 J1B1 J1B2 Pin# Signal Name Pin# Signal Name Pin# Signal Name Pin# Signal Name RSTDRV VCC_IN VCC_IN GP00 GP01 GP70 GP71 GP02 GP03 GP72 GP73 GP04 GP05 GP74 GP75 GP06 GP07 GP76 GP77 GP90...
  • Page 23 HMI-043T-EM4XX-BF type (without daughter board): HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 24 J9: RS-485 J2: GPIO Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin # Signal Name RS485+ RS485- GP70 GP71 GP72 GP73 GP74 J10: RS-485 GP75 GP76 Pin # Signal Name Pin # Signal Name GP77 RS485+ RS485- J4: USB...
  • Page 25 HMI-043T-EM4XX-BFXX type: HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 26 J6: COM2: RS232/485 setting J2/J3: USB Pin # Signal Name Pin # Signal Name OPEN ENABLE RS-232 CLOSE ENABLE RS-485 USB0- USB0+ J9: Power Connector DC-IN 24V Pin # Signal Name GGND +7~24V GGND LAN1 J5: COM2 RS-232/485 Signal Signal (Change setting by J6 Jumper) Name Name...

  • Page 27: Connector I/O & Leds Overview

    2.4 Connector I/O & LEDs Overview Front panel {Note} 1. LED13 is the Power LED light. 2. LED10, LED11, and LED12 can be set by software application like RFID detecting, RFID error light and so on. Please contact your region sales or ICOP technical person to get the sample code for those LED lights control.
  • Page 28 I/O overview for HMI-043T-EM4XX-BF: I/O overview for HMI-043T-EM4XX-BFXX: Top Side Bottom Side HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 29: Wall Mount Kit Overview (Optional)

    2.5 Wall Mount Kit Overview (Optional) {Note} 1. This mounting kit is only for US type of wall mount box. 2. This mounting is only for HMI-043T-EM4XX-BF type without daughter board and rear case, but not for BF01 and BF02. Please contact your sales region or ICOP to get the detail information.
  • Page 30 {Note} Please contact your region sales or ICOP to get the detail information. HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...

  • Page 31: Ch. 3 Driver Installation

    Driver Installation 3.1 HMI-043T Development Note HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
  • Page 32 Vortex86VGA is a programmable VGA controller in 22mm x 16mm LQFP 128 package. It integrates a PCIe bridge controller and a VGA controller with 4M-Byte Pseudo SRAM memory (16-bit data width). It also incorporates 3.3V DVO digital interfaces to support a third party LVDS/TMDS transmitter.

  • Page 33: Hmi-043T Development Note

    3.1 HMI-043T Development Note < WINDOWS DEVELOPMENT GUIDE > Windows Embedded CE 6.0 BSP and development notes, please visit technical website to get more information at http://tech.icop.com.tw/. < LINUX INSTALLATION NOTE> Please visit Linux technical website to get more information at ftp://vxdx:gc301@ftp.dmp.com.tw/Linux_DEMO/Vortex86_Linux_Support _List.htm.

  • Page 34: Warranty

    (RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. © ICOP Technology Inc. 2017 HMI-043T-RFID User’s Manual IUMHMI043T-BF Ver.1.2A Apr, 2017...
