4.02 Attaching the Fusion 140A MIG Gun

Fit the MIG Gun to the Power Source by pushing the MIG Gun connector into the MIG Gun Adapter and tightening the Locking
Screw to secure the MIG Gun in the MIG Gun Adapter.
Connect the 8 pin plug by aligning the keyway then inserting the 8 pin plug into the 8 pin socket and rotate threaded collar fully
clockwise to lock the plug into position.
MIG Gun Adaptor
MIG Gun Connector
8 pin socket
8 pin plug
Thumb Screw
MIG Gun Connector
Art # A-10356_AB

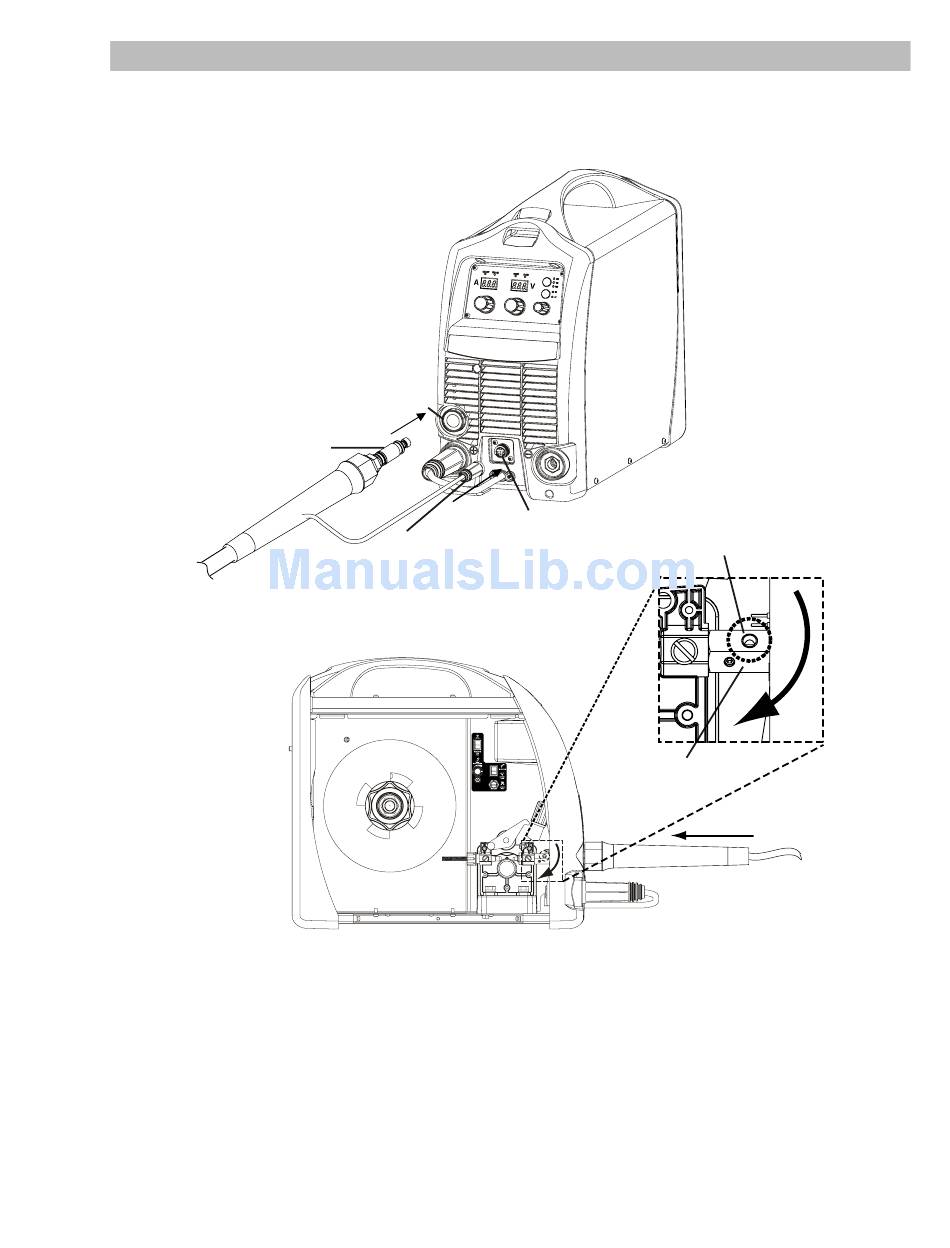

Figure 4-5: Attaching MIG Gun
Manual 0-5448 4-7 OPERATION
