command value
Max. output
frequency
Max. output
frequency

(11) Auto Torque Boost Gain (Bn-11)

•The inverter can increase the output torque to compensate the load increase
automatically through the auto torque boost function. Then the output voltage will
increase. As a result, the fault trip cases can be decreased. The energy efficiency is
also improved. In the case that the wiring distance between the inverter and the
motor is too long (e.g. more than 100m), the motor torque is a little short because
of voltage drop. Increase the value of Bn-11 gradually and make sure the current
will not increase too much. Normally, no adjustment is required.
voltage
Fig. 13 Adjust the auto torque boost gain Bn-11 to increase the output torque.
•If the driven motor capacity is less than the inverter capacity (Max. applicable
motor capacity), raise the setting.
•If the motor generates excessive oscillation, lower the setting.
gain
100
bias
100
0V
(4 mA)

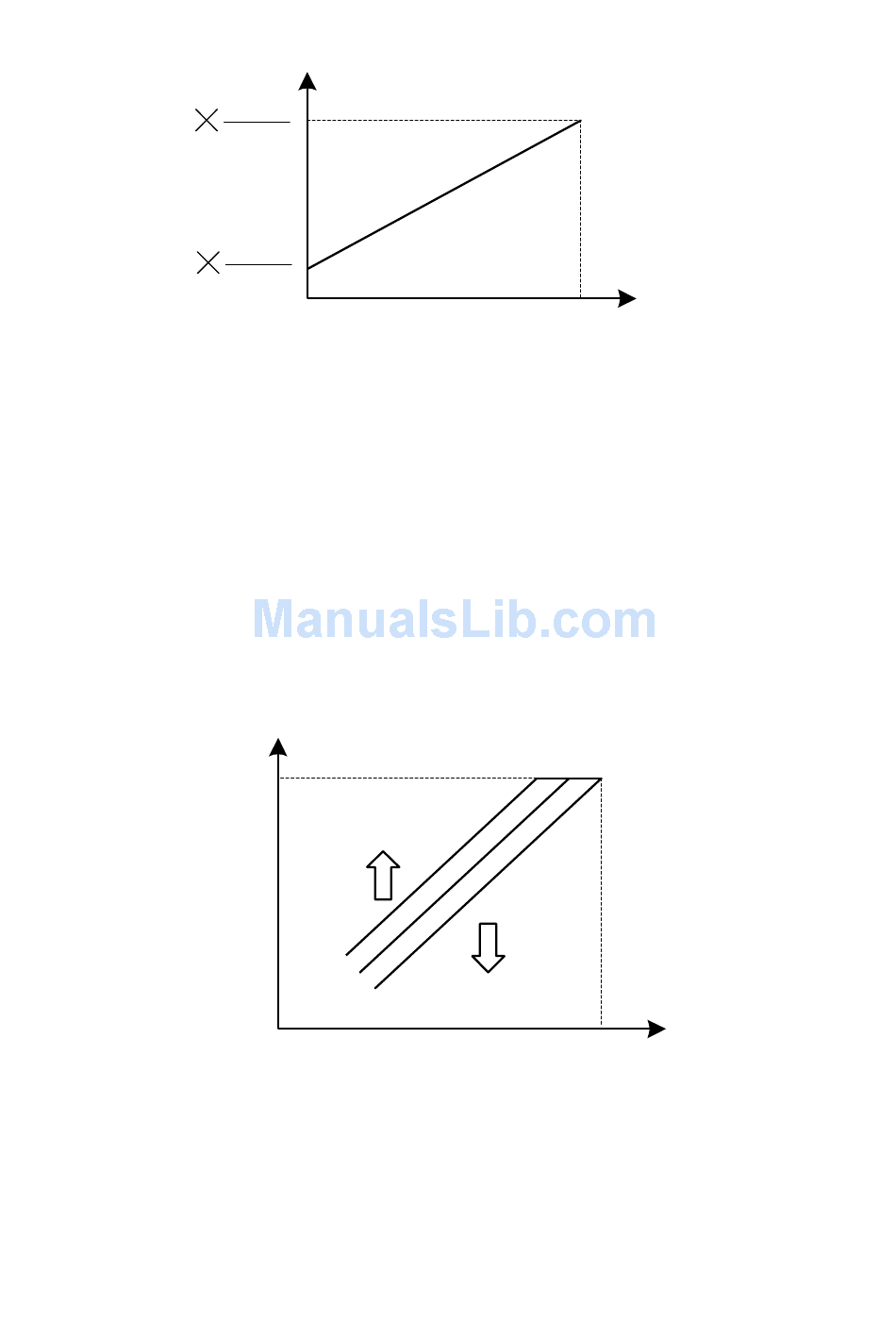

Fig. 12 Analog input gain and bias
output
100 %
torque
increase
torque
decrease
39
Input voltage
(Input current)
10V
* ( ) If current
(20 mA)
command is used
Base frequency
