- Page 1 Digital Karaoke Processor USER PROGRAM PARAMETER STORE MIC VOL EFF VOL MUS VOL/EDIT(PUSH) MIC ENHANCE MIC MODE EFF MODE MUS MODE MAIN MODE CENT MODE SUB MODE Owner's Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Instruction 9. Center Part Operating Instruction 2. Product Features 9.1. Center Volume Setting 3. Front Panel Review 9.2. Direct Sound to the Center Volume Setting 4. Rear Panel Review 9.3. Center Musical Delay Setting 5. Power-on 9.4. Center PEQ 6. -
Page 3: Safety Instruction
IMPORTANT SAFETY INSTRUCTIO The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the CAUTION presence of uninsulated dangerous voltage within the RISK OF ELECTRIC SHOCK product's enclosure, that may be of sufficient magnitude DO NOT OPEN to constitute a risk of electric shock to persons. -
Page 4: Product Features

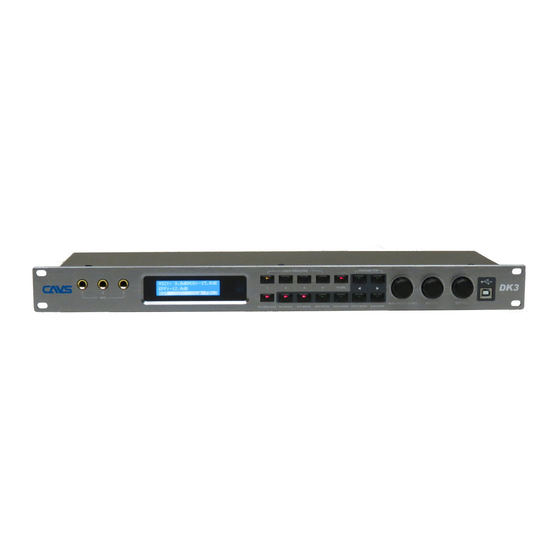

2. Product Features USER PROGRAM PARAMETER STORE MUS VOL/EDIT(PUSH) MIC VOL EFF VOL MIC ENHANCE MIC MODE EFF MODE MUS MODE MAIN MODE CENT MODE SUB MODE ★ The product uses 56-bit high-performance DSP and 24bit AD / DA, 48kHz sampling frequency of professional digital multi-channel karaoke processor ★... -
Page 5: Front Panel Review
3. Front Panel Review USER PROGRAM PARAMETER STORE MUS VOL/EDIT(PUSH) MIC VOL EFF VOL MIC ENHANCE MIC MODE EFF MODE MUS MODE MAIN MODE CENT MODE SUB MODE 7 8 9 10 11 12 13 14 16 17 1. 3-ways Microphone Input Jack and Volume Control on front panel 2. -
Page 6: Rear Panel Review
4. Rear Panel Review 12 13 Made In China MIC INPUT INPUT RECORD ADJUST ADJUST RS232 S/PDIF CENT ∞ ∞ ~90V-250V POWER 50-60Hz OPTIC LINE REMOTE AUX OUT REC OUT RIGHT LEFT VIDEO AUDIO INPUT 1. Power Switch (T1AL/250VAC) 2. Standard IEC Power Input (~ 90V-220V) 3. -
Page 7: Power-On
5. Power-on Connect power cable, press the power switch on the rear panel, led will show product logo on screen. Then the version No#, the processor unit starts loading data (the boot loaded data can be set after the reboot, there are 5 options: [the last memory before turn-off], [1-4 user program],here show the selected set). -
Page 8: Music Part Operating Instruction
6. Music Part Operating Instruction 6.1 Select Music Input 6.1.1 Analog Music Input 3-way analog music input line: background music, Input 1, Input 2 Potentiometer adjustment function, adjustment range: - 8 ~ +3 db Method 1: (1) Keep pressing panel "Music Mode" or select "Music Input" on screen, see below: (2) Turning knob "Music Volume / Edited (Pressed)"... -
Page 9: Music Peq Setting
6.4 Music PEQ Setting PEQ: 7 bands Type: Parametric equalization filters(can be set as low/high-tone filter), graphic equalization (the 7 band can be set up as a high-cut). Frequency range: 20Hz - 20kHz Gain range: - 15db ~ + 12 db(can be limited to +6db in the "evice Settings" of interface software), stepping is 0.1 db Band range: 0.011 ~3.595 Method 1: (1) Press "Music Mode"... -
Page 10: Microphone Enhancement Feature
7.3 Microphone Enhancement Feature Range: Adjust range - 50% (off) ~ + 50 % Method 1: On the panel press the key "Music Enhance", set to continuously change enhance switch, turn the knob to adjust music inspired. Method 2: Use own windows software to control. MIC Enhance Led Display View Front Panel View... -
Page 11: Microphone 1 To 5 Volume Setting
7.8 Microphone 1 to 5 Volume Setting Range: mute, -25dB~+6dB, stepping 0.5 dB Method 1: (1) Press the panel button "microphone mode "into the microphone menu. (2) Continue press the button "microphone mode " to select the microphone 1/2/3/4/5 volume on the screen, turning the knob "Music volume / Edit(Press) "to set the sensitivity. -
Page 12: The Effect Volume Settings
7.11 Effect Volume Setting Range: mute,-30db ~ 0db, Stepping: 0.5db Method 1: Set by "effect volume" knob on the panel. Method 2: "Effect +", "Effect - " on the remote control. Method 3: Use own windows software to control. Music Music Front Panel View Remote Control View... -
Page 13: Echo Volume, Phase Setting
7.14 Echo Volume, Phase Setting Volume range: mute,-30db ~ 0db, Stepping: 0.5db Phase range: 0°, 180 ° Method 1: (1) Press the buttons "Effect Mode" on the panel or select "ECHO VOL, PHASE" on screen, see below: (2) Press "<" and ">" to switch Echo Volume and Phase. (3) Turning knob "Music Volume / Edit (Press) "... -
Page 14: Echo Mode, Echo Thickness Setting
7.17 Echo Mode, Echo Thickness Setting Range: Single, stereo, dual echo Range: On, Off Method 1: (1) Press the buttons "Effect Mode" on the panel or select "ECHO MODE, ECHO TO REV" on screen, see below: (2) Press "<" and ">" Switch Echo Pattern and Thickness. (3) Turning knob "Music Volume / Edit (Press) "... -
Page 15: 20. Reverb Type Setting
7.20 Reverb Type Setting Range: 1.off; 2. Room; 3 Small hall; 4.Hall; 5. Church; 6. Cathedral; 7. Vocal. Method 1: (1) Press the buttons "Effect Mode" on the panel or select "REC TYPE" on screen, see below: (2) Turning knob "Music Volume / Edit (Press)" to set the Reverb Type. REV TYPE Room Led Display View... -
Page 16: Direct Sound To The Main Output Volume Setting
8.2 Direct Sound to the Main Output, and the Effect to the Main Output Volume Setting Range: Mute, -30db ~ 0db Stepping: 0.5db Method 1: (1) Press the buttons "Main output Mode" on the panel or select "MIC DIR TO MAIN, EFF TO MAIN"... -
Page 17: Left & Right Delay Settings Of Main Output
MAIN PEQ 101Hz Led Display View Front Panel View Method 2: Operation from the interface software to set up (all equalizer parameter can be set ) Front Panel View 8.5 Main Output Left Delay, Right-delay Setting Range: 0.0ms ~ 5.0ms Stepping 0.1ms Method1: (1) Press the buttons "Main output Mode"... -
Page 18: Center Part Operating Instruction
9. Center Part Operating instruction 9.1 Center Volume Setting Range: Mute, -30db ~ 0db Stepping: 0.5db Method 1: (1) Press the button "Center Mode" on the panel or select "CENT VOL, CENT MAX VOL" on screen, see below: (2) Press "<" and ">" to switch the Center Volume and Microphone Maximum Volume. (3) Turning knob "Music Volume / Edit (Press) "... -
Page 19: Center Peq
(2) Press "<" and ">" to switch Direct Sound to the Center and Effect to the Center. (3) Turning knob "Music Volume / Edit (Press) " to set. CENT DELAY: 0.0ms MUS TO CENT: 0.0dB Led Display View Front Panel View Method 2: Use own windows software to control. -
Page 20: The Sub Woofer Operating Instruction
10. The Sub Woofer Part Operating Instructions 10.1 Sub Woofer Volume and Phase Setting Volume range: mute,-30db ~ 0db Stepping: 0.5db Phase range: 0 °, 180 ° Method 1: (1) Press the buttons "Sub Woofer Mode" on the panel or select "SUB VOL PHASE" on screen, see below: (2) Press "<"... -
Page 21: Sub Woofer Peq Setting
10.3 Sub Woofer PEQ Setting PEQ qty: 3 Type: parametric equalization filter (can be set to low / treble tone filter) and graphic equalizer Frequency range: 20hz ~ 20khz Gain Range: -15db ~ +12 db Stepping 0.1db Bandwidth range: 0.011 to 3.595 Method 1: (1) Press the buttons "Sub Woofer Mode"... -
Page 22: Sub Woofer Limit Setting
10.5 Subwoofer Compressor Setting Threshold range: -20 ~ +16 db Stepping 0.5db Ratio: 2:1 4:1 8:1 16:1 32:1 64:1 128:1 Range: On, Off Method 1: (1) Press the buttons "Sub Mode" on the panel or select "SUB COMP THRES" on screen (Only Threshold can be set ), see below: (2) Turning knob "Music Volume / Edit (Press) "... -
Page 23: Program Delete Feature
11.3 Delete Preset Program (Computer Software Control) 11.4 Preset date on the computer (Computer Software Control) 11.5 Import data from the computer to processor (Computer Software Control) 12. Turn-On to Load the Selected Program Connect to the computer, open the software, set the program in "Reboot Effect" from "Device Setting" (Program 1-4;... -
Page 24: Sub Woofer Output Option
15. Sub Woofer Output Option Set this function under "Device Settings" in the software provided. When the mode is manual, the sub woofer volume setting does not change. When the mode is automatic: once the Microphone receives input signal, sub woofer output volume is the "concert"... -
Page 25: The Wireless Remote Control
21. The Wireless Remote Control 21.1 Wireless Remote Control The easy-to-use remote control function, eliminating the need for manual operation. Simple parameter adjustment makes you to adjust the parameter settings easily as picture shown below: Remote Control Keys Function Keys Function PRESET/USER Adjust the feedback elimination... -
Page 26: Computer Interface Software Control Function
22. When on-line Computer Interface Software Control the Processor Functions , the Panel Screen can not be Operated the Same Time COM Port Detect Automatically. Software can set all the parameters of the processor. Please refer to the corresponding HELP documentation software instruction. USB and RS232 cannot operate together. -
Page 27: Technical Specification
25. Technical Specification Music Parts SNR ...................... >102dB(BYPASS , Pitch Shift Closed) THD ............................. 0.01% 20Hz-20kHz 20Hz-20kHz ±0.5dB Frequency Response ....................... Input Sensitivity/Impedance ...................... 0.707V/47kohm Max-output ......................... 14Vpp/60ohm EQ output Parametric EQ: 5 bands Type ........................PEQ、High-shelf、Low-shelf Gain ......................+12dB~-15dB，Stepping ±0.1dB Frequency .............................
