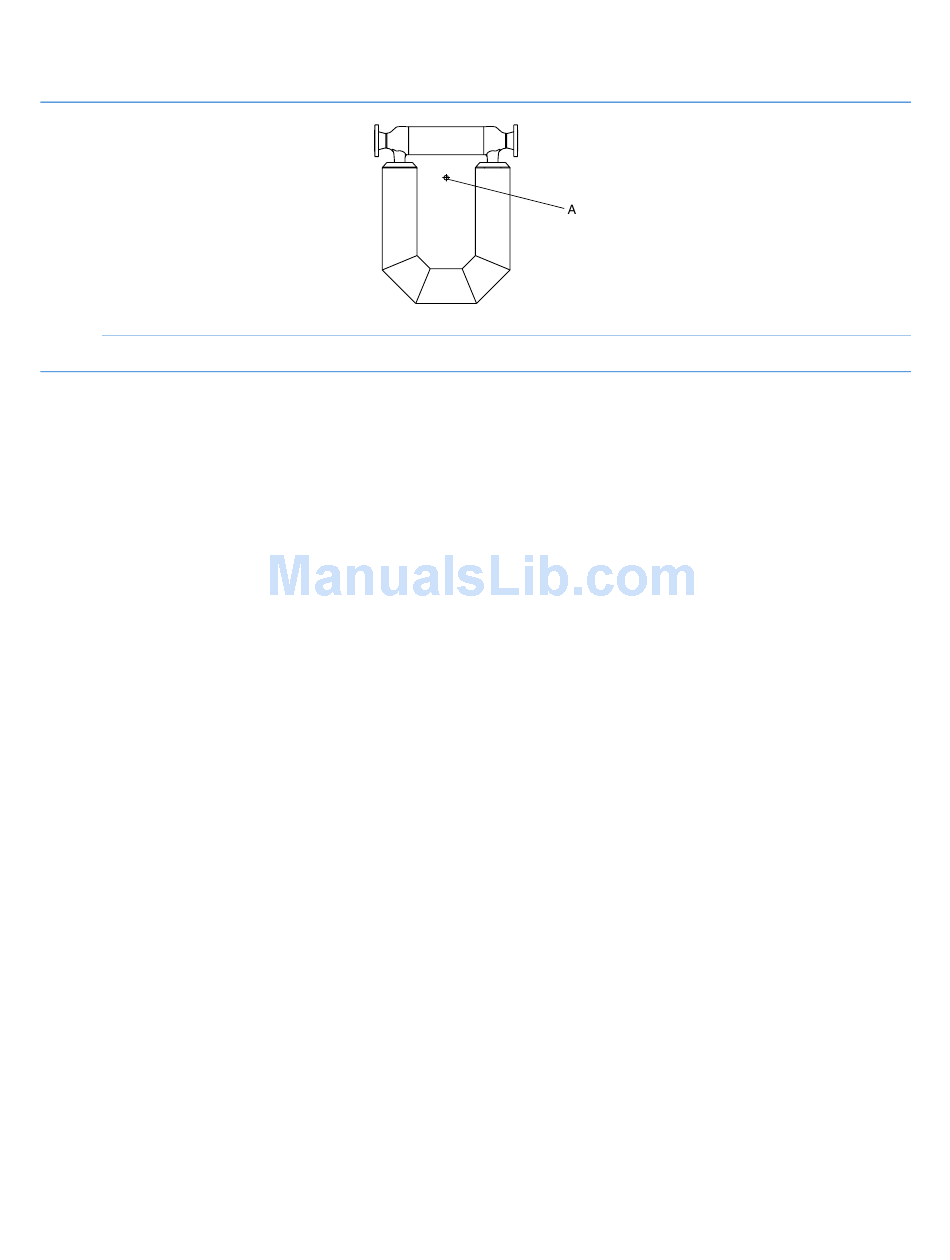

Figure 1
Center of Gravity for Large Meters
A
Approximate center of gravity
Environmental Limits
The ambient and process temperature limits of the sensor are shown in the following figures.
• For all ELITE sensor models except high-temperature and extreme-high-temperature models, see Figure 2.
• For high-temperature and extreme-high-temperature ELITE sensors, see Figure 3.
Installation Manual
Planning
3
