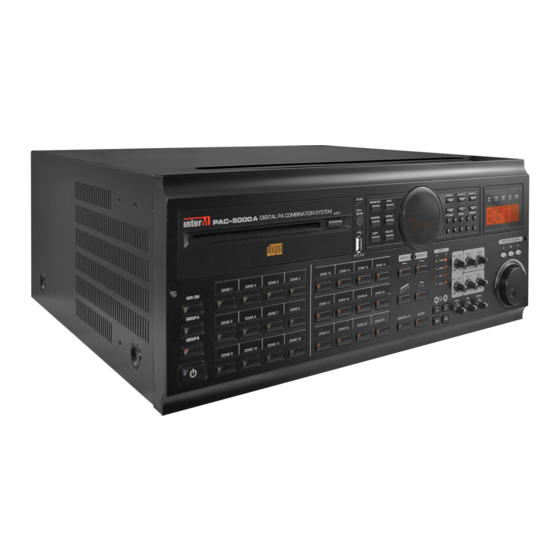

Inter-m PAC-5000A Operation Manual

Digital pa combination system
Hide thumbs Also See for PAC-5000A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Operation
anual
Digital P Combination System
P C-5000 /5600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-5000A and is the answer not in the manual?

Questions and answers

Related Manuals for Inter-m PAC-5000A

Summary of Contents for Inter-m PAC-5000A

  • Page 1 Operation anual Digital P Combination System P C-5000 /5600...
  • Page 2 Welcome personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    1. Before Using the System......................17 2. System Operation........................17 3. FM Tuner Operations.........................18 4. MEDIA (CD/USB/DRP) Operation ....................19 5. Add-on Operation Methods .......................23 Connections ...........................27 Block Diagram ..........................28 Specifications ..........................30 Service Procedures............................33 Schematic .............................33 Parts List ............................33 Variations and Options .......................33 Warranty ............................33 PAC-5000A/5600...

  • Page 4: Unpacking

    DIGITAL PA COMBINATION SYSTEM Unpacking Unpacking Although your PAC-5000A/5600 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.

  • Page 5: Features

    MP3/WMA files on the USB memory can be copied to internal memory (DRP) or play directly. - REMOTE CONTROL SUPPORT PAC-5000A: Using RS-232C terminal allows remote control from Windows application on the PC. ※ However, CD EJECT, TUNER Memory operation including each input level volume cannot be controlled.
  • Page 6 Broadcast can be pre-programmed by either PC TIMER or stored source. PAC-5600: Pre-Program Maximum 50/Holiday Maximum 30 (Stored Source, PC TIMER). PAC-5000A: Pre-Program Maximum 100 (PC TIMER). (Pre-Programs can be controlled by broadcasting web pages and Windows applications) - R CK MOUNT Rack mount bracket is included with the unit.

  • Page 7: Front Panel

    The Button is used to monitor Speaker Outputs of Group A or B. 2) Hold the button down to change the output level (Low/High). 7. CHIME SELECT BUTTON ※Note: MIC Function must be on to run a chime. 4 Scale or 2 Scale chime button, useful before and after the broadcast. PAC-5000A/5600...
  • Page 8 Terminal is to connect the USB. MP3/WMA files can be played and can also COPY the files from USB to DRP. 19. EMERGENCY MIC (EM MIC) ND OPER TION SWITCH (MIC SW) Built-in condenser microphone is used for EM (Emergency Broadcast) during FIRE. In EM mode, hold down the (MIC SW) to operate. PAC-5000A/5600...
  • Page 9 - In TUNER Mode, used to seek stations. Press once to move one step or press and hold to tune automatically. 30. ■ (STOP) / MEMO BUTTON - MEDIA (CD/DRP/USB) Stop Play. - MEMO: In TUNER Mode, used to store stations in Memory. PAC-5000A/5600...
  • Page 10 Number buttons are used to enter numbers to search for tracks and to enter radio frequencies. 32. SYSTEM OPER TION INDIC TOR Displays the system operations such as Emergency Broadcast (EM), Fire (FIRE), reserved broadcast (PC), remote microphone broadcast (RM) and general broadcast (BGM). PAC-5000A/5600...

  • Page 11: Rear Panel

    DIGITAL PA COMBINATION SYSTEM Rear Panel Rear Panel -PAC-5000A -PAC-5600 SD CARD A SD CARD B MAIN POWER FAULT OUT REMOTE MIC (RM-6024) LINK NETWORK B COM ADDRESS ID FM ANT RM 1 RM 2 RM 3 RM 4 SERVICE 1.
  • Page 12 Amplifier output to the other group input. ※Caution: When connecting an external amplifier, connect AMP OUT HIGH IMPEDANCE output to AMP IN terminal. Do not connect amplifiers rated 1200W or higher. Also, each ZONE output must be 500W or less. PAC-5000A/5600...
  • Page 13 - When connecting the speakers, disconnect the power cord from the wall outlet. Depending on the type of speakers in use, select the appropriate speaker terminals on rear panel. 3) Rated Power Output and Impedance Contents Group A (12 ZONE) Group B (12 ZONE) Output/Impedance 100V 100V/33.3Ω(300W) 100V/33.3Ω(300W) 70V/16.3Ω(300W) 70V/16.3Ω(300W) PAC-5000A/5600...
  • Page 14 - Standard TIA/EIA 568B standard terminated CAT5 cables used to connbect the PAC-5600. [ TOP VIEW ] [ FRONT VIEW ] 8.Brown 7.W/Brown 6.Green 5.W/Blue 4.Blue CROSS 3.W/Green 2.Orange [CABLE COLOR ORDER] 1.W/Orange DIRECT [ CABLE COLOR ORDER ] PAC-5000A/5600...
  • Page 15 DIGITAL PA COMBINATION SYSTEM - PAC-5000A: RS-232C Terminal RS-232 SERIAL terminal for remote control access. Remote control is possible with the PC program provided separately. Purpose Receive Transmit Ground ※For how to use the remote control, please refer to the SOFTWARE MANUAL.
  • Page 16 DIGITAL PA COMBINATION SYSTEM Fire contact Macro functions can be set with web (PAC-5600) or PC program (PAC-5000A). For detailed instructions please refer to the SOFTWARE MANUAL. ※Note: When input comes in during standby mode, emergency broadcast system turns on and broadcasts to pre-selected ZONE speakers.
  • Page 17 - Set the ADDRESS setting switch to the proper usage (MASTER/SLAVE 1~4) of the system. Turn the power off and turn on to apply the settings. - System set to SLAVE is displayed as “SLAVE (1~4)” in the front display window. - The system set to SLAVE cannot use its own sources. PAC-5000A/5600...
  • Page 18 The terminal to receive audio signals from PC for playback in reserved broadcast. 28. FM NTENN TERMIN L (FM NT) Use the FM antenna supplied with the product, 75Ω coaxial cable can also be connected if the signal is weak and produces noise. PAC-5000A/5600...

  • Page 19: Operating Method

    • MIC broadcasting can be separate for Group A and Group B. • Press the MIC/LINE button for a specific group to broadcast to. ☞ ➡ ※Note: For Chime operation, Group must be selected using the MIC/LINE button. • Before pressing the Chime button, adjust the input volume level properly. PAC-5000A/5600...

  • Page 20: Fm Tuner Operations

    • In EM (Emergency) mode press and hold EM TEST button to hear through the main and monitor speakers. 3) System Remote Control Method ※PC Program, Software MANUAL can be downloaded from (www.inter-m.com). Please refer to the SOFTWARE MANUAL. 3. FM TUNER Operation 1) How to Auto/Manual tune radio frequencies - Use either Group A or B input button to light the LED on TUNER.

  • Page 21: Media (Cd/Usb/Drp) Operation

    ※Note: IF the disc is in poor condition or is a non-playback format, disc will be ejected automatically. In this case it is not the system, please check the disc instead. Only the 12cm size disc can be used. 8cm size disc cannot be used. PAC-5000A/5600...
  • Page 22 - In stop mode press RANDOM and “RANDOM” is displayed. Press ▶II (Play/Pause) button to play in Songs are played in random order. random order. - Repeat playback is possible in REPEAT mode. - Press RANDOM button once more to cancel the mode. PAC-5000A/5600...
  • Page 23 USB source with playback order before using COPY function. - Press MEDIA FUN button to switch to DRP mode to verify the COPY content. - Pressing the ■ (Pause) button during COPY will stop the copy function and save only up to the last completed tracks. PAC-5000A/5600...
  • Page 24 TRACK. ➡ - FORMAT • In “FOLDER1” mode press ▶▶ (SEARCH UP) button to select the FORMAT as shown below. • After selecting FORMAT, press DELETE button, as shown below, and press DELETE to start the FORMAT ➡ PAC-5000A/5600...

  • Page 25: Add-On Operation Methods

    - Use ▶II button to select ON/OFF option. (Default setting is ON position.) - Press INFO button and press I◀◀ / ▶▶I button to select “AUTOPLAY ON”. ※NOTE: To use the AUTO PLAY, before powering off, selection must be set to CD. PAC-5000A/5600...
  • Page 26 - After the line test, in case of SHORT conditioned ZONE, ZONE button will not work. ZONE button will - During CONFIRM or TEST, pressing ▶II button will cancel CONFIRM or TEST operations. only work in NORMAL status state. PAC-5000A/5600...
  • Page 27 - TEST: at CONFIRM system will compare stored value and display the status of the BATTERY. • After pressing INFO button select I◀◀ / ▶▶I button to select BATTERY TEST. • Pressing ▶II during “BATTERY TEST” mode will display blinking “BATT” and TEST will commence. • Upon completion of TEST following will be displayed. PAC-5000A/5600...
  • Page 28 Periodic CHECK is necessary. Replace the battery. 7) System Initialization (PAC-5600 Only) Reset the IP address and web page settings. - IP default value: 192.168.1.99 - For web page settings, reservation broadcast, please refer to the SOFTWARE MANUAL for more details. PAC-5000A/5600...

  • Page 29: Connections

    DIGITAL PA COMBINATION SYSTEM Connections Connections PAC-5000A/5600...

  • Page 30: Block Diagram

    DIGITAL PA COMBINATION SYSTEM Block Diagram Block Diagram - PAC-5000A PAC-5000A/5600...
  • Page 31 DIGITAL PA COMBINATION SYSTEM Block Diagram Block Diagram - PAC-5600 PAC-5000A/5600...

  • Page 32: Specifications

    Transmission Distance 500M Cable Type Category 5 UTP Cable Priority Control EM MIC > FIRE > PRIORITY INPUT > EM > PC TIMER > REMOTE MIC > SIREN, CHIME > MIC1 > MIC2~5 > BGM Fire Sensor 24 Channel PAC-5000A/5600...
  • Page 33 Power Source AC 100–240V, 50/60Hz, DC 24V Power Consumption (1/8W) 135W Weight (SET) 11.1kg/24.4lb 11.2kg/24.7lb Dimension (SET) 440(W)×177(H)×380(D)mm/17.3(W)x 7(H) x 14.96(D) in * Design and specification are subject to be changed for the improvement of product quality without pre notice. PAC-5000A/5600...
  • Page 34 DIGITAL PA COMBINATION SYSTEM ※ DIMENSIONS PAC-5000A/5600...

  • Page 35: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 36 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
