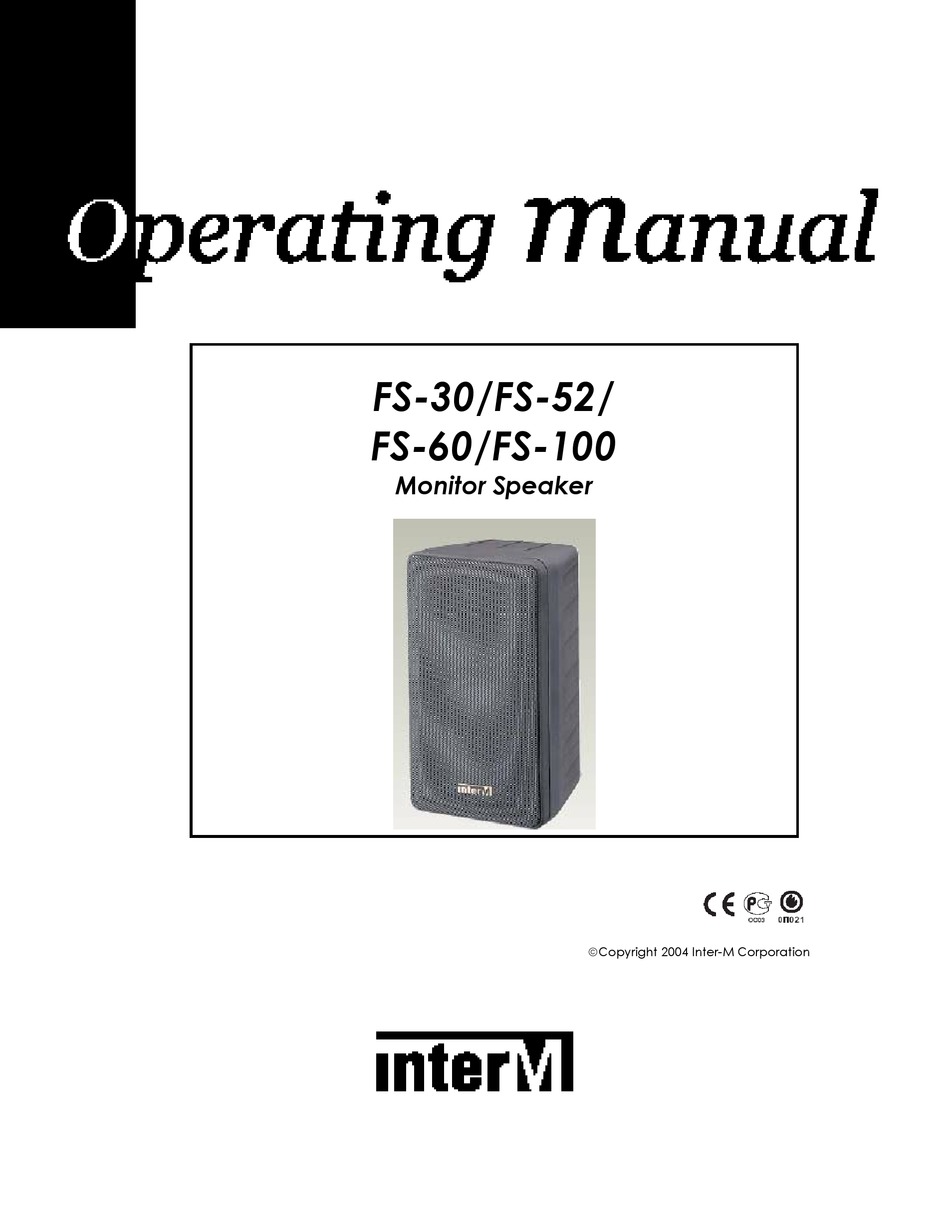

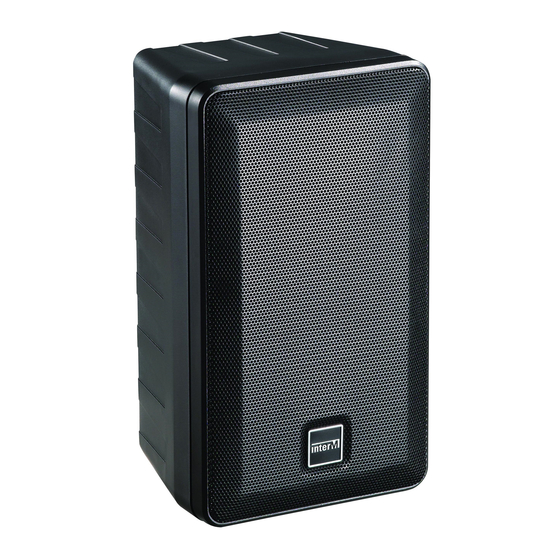

- Page 1 FS-30/FS-52/ FS-60/FS-100 Monitor Speaker Copyright 2004 Inter-M Corporation...
-
Page 2: Table Of Contents
Warnings ... 3 Monitor Speaker... 5 Features ... 5 Setup and Operation... 6 Connecting your Speaker System ... 7 Choosing the Correct Speaker Cable... 7 Speaker Connection Procedures ... 7 Maintaining Proper Polarity ... 7 Choosing the Correct Amplification... 7 Using Multiple Loudspeakers... -
Page 3: Welcome
A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value. - Page 4 FS-30/FS-52/FS-60/FS-100 Monitor Speaker 8. Use only with a cart, stand, tripod, bracket, or table specified, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid overturning. 9. Unplug this apparatus during lightning storms or when unused for long periods of time.
-
Page 5: Monitor Speaker
The FS-series Monitor Speakers are designed for high-fidelity professional sound reproduction. Switchable Impedance • The FS-30/FS-60/FS-100 models incorporate an impedance switch for connection to a low impedance (8Ω) or high impedance distributed (70V/100V) system. Overload Protection • The FS-52 model incorporates an electronic overload circuit to protect the tweeter. -
Page 6: Setup And Operation
Your FS-Series Monitor Speakers may be used as free-standing speakers, or attached to a wall or other secure surface with the supplied mounting bracket. The illustration below shows the preferred method of securing the speaker. WARNING: under no circumstances should any loudspeaker be mounted or suspended in a public place unless the mounting method has been approved and certified by a qualified engineer. -
Page 7: Connecting Your Speaker System
(plenum rated when installed in required installations). Always use the appropriate gauge of speaker cable. For cable runs of less than 25 feet (7.5 meters), 18- gauge cable is adequate. For longer cables, we suggest 16-gauge stranded cable. -
Page 8: Using Multiple Loudspeakers
Monitor Speaker Using Multiple Loudspeakers It is important to consider the overall speaker load (impedance) when connecting distributed speaker systems to an amplifier. Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the case, it is easy to... -
Page 9: Directional Curves
FS-30/FS-52/FS-60/FS-100 Monitor Speaker Directional Curves FS-30/FS-60/FS-100 FS-52... -
Page 10: Specifications
Specifications ELECTRICAL Rated Input FS-30 FS-52 FS-60 FS-100 Input Impedance FS-30 FS-52 FS-60 FS-100 Frequency Response GENERAL Dimensions Specifications and design subject to change without notice for improvements. 100W 8Ω/330Ω 8Ω/200Ω 8Ω/167Ω 8Ω/100Ω 180Hz-13kHz 175(W) x 300(H) x 158.5(D) mm... - Page 11 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
