Related Manuals for Inter-m HS-50
Summary of Contents for Inter-m HS-50
- Page 1 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).

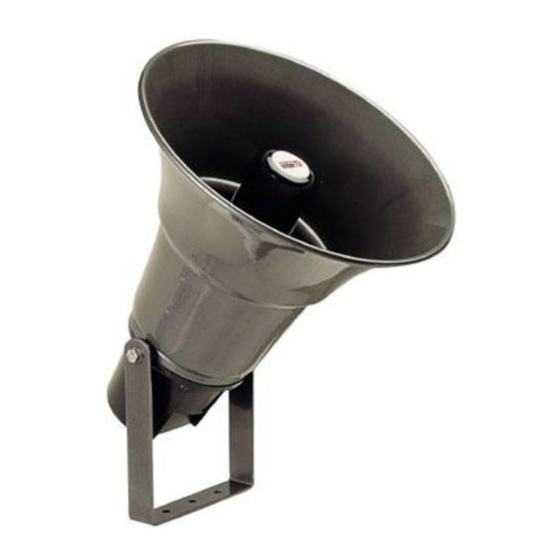

- Page 2 0 21 OC03 OC03 B370031 HS-50 Paging Horn Speaker...
-
Page 3: Table Of Contents
Contents Contents Welcome Warning............................1 Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Setup and Operation ........................4 Connecting your Speaker System ....................5 Polar Pattern Diagram ........................6 Specifications ..........................7 Service Procedures............................8 Schematic ............................8 Parts List ............................8 Variations and Options .........................8 Warranty ............................8... -
Page 4: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 5: Unpacking
PAGING HORN SPEAKER Unpacking Although your HS-50 Paging Horn Speaker is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 6: Features
PAGING HORN SPEAKER Features Features - Excellent Intelligibility and Loudness - Wide Dispersion Pattern - High Directivity - Superior Reliability HS-50... -
Page 7: Setup And Operation
PAGING HORN SPEAKER Setup and Operation Setup and Operation After unpacking your HS-50 Paging Horn Speakers, attach the speakers to a wall or other secure surface using the integrated mounting bracket, as shown in the illustration below. Mounting Bracket WARNING: Under no circumstances should any loudspeaker be mounted or suspended in a public place unless the mounting method has been approved and certified by a qualified engineer. -
Page 8: Connecting Your Speaker System
It is important to consider the overall speaker load (impedance) when connecting distributed speaker systems to an amplifier. Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the case, it is easy to compute the total impedance (or wattage load) that is possible for a given amplifier. HS-50... -
Page 9: Polar Pattern Diagram
PAGING HORN SPEAKER Polar Pattern Diagram Polar Pattern Diagram 500Hz 1000Hz 2000Hz 4000Hz HS-50... -
Page 10: Specifications
PAGING HORN SPEAKER Specifications.............. Specifications 0dB=0.775Vrms - ELECTRICAL Rated Input............................50W Impedance ........................200Ω(W), 400Ω(G) Frequency Response .......................380Hz-6.5kHz SPL(1W/1m) ............................105dB - GENERAL Weight ............................3.1kg/6.83lb Dimensions ..................320(ø) x 350(D) mm/12.6(ø) x 13.8(D)in * Specifications and design subject to change without notice. HS-50... -
Page 11: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region.
