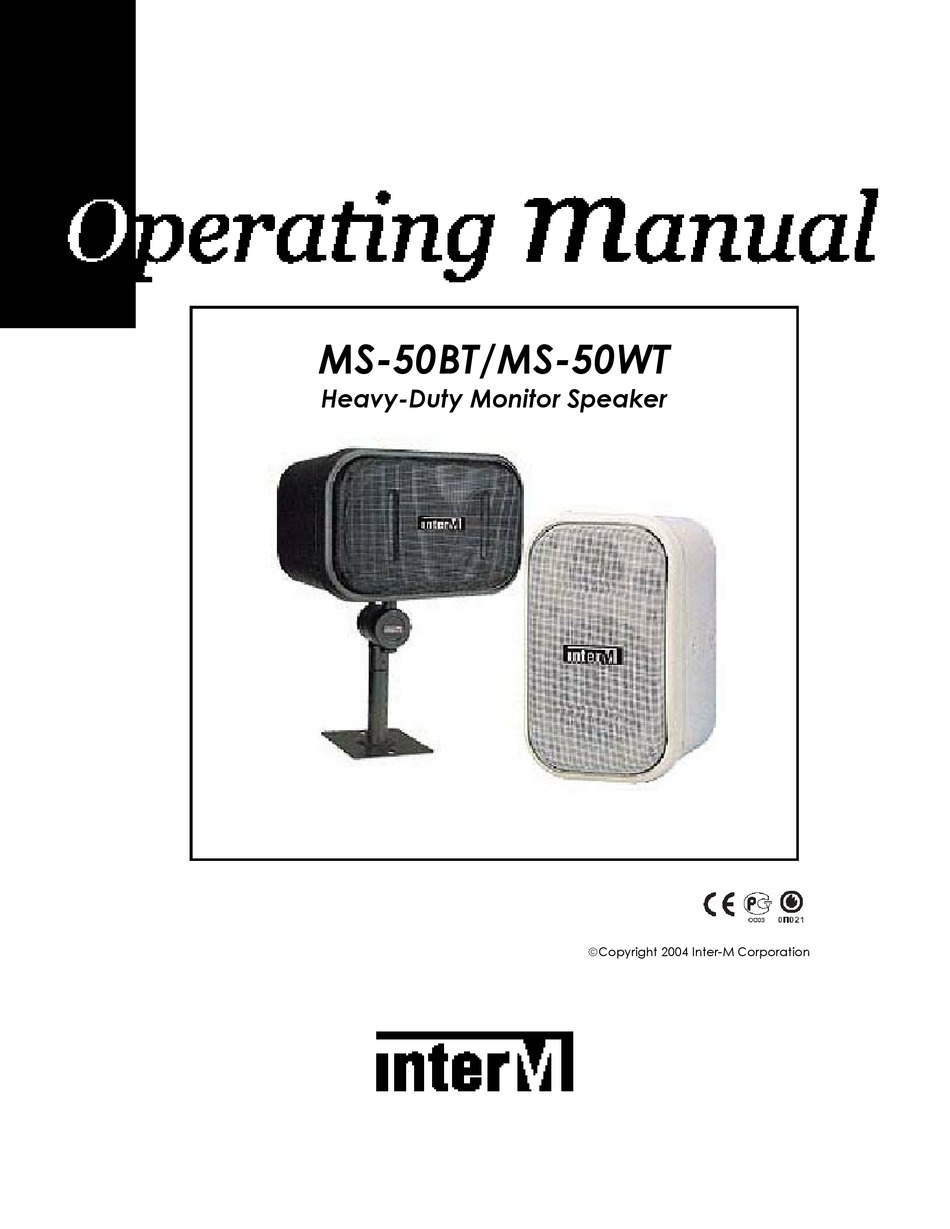

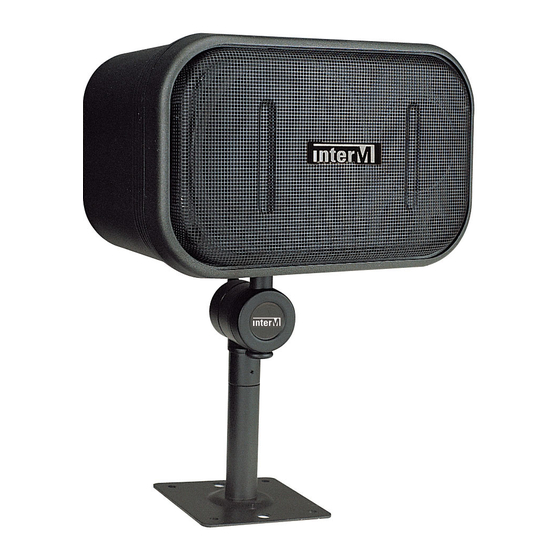

  • Page 1 MS-50BT/MS-50WT Heavy-Duty Monitor Speaker Copyright 2004 Inter-M Corporation...

  • Page 2: Table Of Contents

    Warnings ... 3 Heavy-Duty Monitor Speaker... 5 Features ... 5 Setup and Operation... 6 Connecting your Speaker System ... 7 Choosing the Correct Speaker Cable... 7 Speaker Connection Procedures ... 7 Maintaining Proper Polarity ... 8 Choosing the Correct Amplification... 8 Using Multiple Loudspeakers...

  • Page 3: Welcome

    A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value.
  • Page 4 MS-50BT/MS-50WT Heavy-Duty Monitor Speaker 7. Use only the attachments/accessories specified. 8. Use only with a cart, stand, tripod, bracket, or table specified, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid overturning.

  • Page 5: Heavy-Duty Monitor Speaker

    • Aluminum alloy construction and anti-rust coating for long life and durability. Versatile • Full-range speaker system and matching transformer for high efficiency PA system performance at High or Low Impedance. Easy Installation • Free standing, or use with optional FSB-1 mounting bracket.

  • Page 6: Setup And Operation

    Failure to properly secure the system can result in damage to the unit or personal injury. The MS-50BT/MS-50WT can operate at a rated input of 20W/4Ω, or in a 100V distributed system.

  • Page 7: Connecting Your Speaker System

    (plenum rated when installed in required installations). Always use the appropriate gauge of speaker cable. For cable runs of less than 25 feet (7.5 meters), 18- gauge cable is adequate. For longer cables, we suggest 16-gauge stranded cable.

  • Page 8: Maintaining Proper Polarity

    Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the case, it is easy to compute the total impedance (or wattage load) that is possible for a given amplifier. Alternatively, the MS-50BT/MS-50WT can operate in a distributed system at 100V.

  • Page 9: Specifications

    Specifications ELECTRICAL Rated Input Frequency Response SPL (1W/1m) Color MS-50BT MS-50WT Dimensions Weight Specifications and design subject to change without notice for improvements. 20W/4Ω or 20W/100V distributed 120Hz – 20kHz 90dB Black White 150(W) x 240(H) x 150(D)mm/ 5.9(W) x 9.4(H) x 5.9(D) in.
  • Page 10 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
