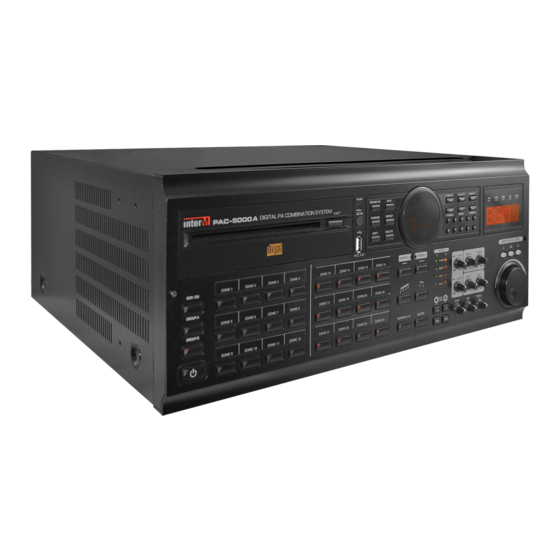

Inter-m PAC-5000A Operation Manual

Digital pa combination system
Hide thumbs Also See for PAC-5000A:
Table of Contents

Advertisement

Quick Links

Operation
anual
(Program Installation)
Digital P Combination System
P C-5000 /5600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-5000A and is the answer not in the manual?

Questions and answers

Related Manuals for Inter-m PAC-5000A

Summary of Contents for Inter-m PAC-5000A

  • Page 1 Operation anual (Program Installation) Digital P Combination System P C-5000 /5600...

  • Page 2: Table Of Contents

    DIGITAL PA COMBINATION SYSTEM Contents Contents P C-5000 Series Program Settings ....................1 1. Installation for basic program.......................1 Remote Control via PC Program (P C-5000 Series Only) ............4 I. System Connection ........................4 II. Preferences (Environment) Setting....................5 III. Screen Configuration and Program Functions................11 IV.

  • Page 3: P C-5000 Series Program Settings

    DIGITAL PA COMBINATION SYSTEM P C-5000 Series Program Settings P C-5000 Series Program Settings 1. Installation for basic program 1) Run ‘setup.exe’ to start. When the setup screen appears (shown below), click [Next(N)] button. PAC-5000A/5600...
  • Page 4 DIGITAL PA COMBINATION SYSTEM 2) Screen display for setting installation folder. Click [Browse(R)] button to select where the program will be installed. After selecting, click [Next(N)] button. 3) Ready to install screen. Click [Next(N)] button. PAC-5000A/5600...
  • Page 5 DIGITAL PA COMBINATION SYSTEM 4) Installation screen. Please wait until the installation is completed. 5) Installation completed screen. Click [Close(C)] button. Run the program after completing the installation. PAC-5000A/5600...

  • Page 6: Remote Control Via Pc Program (P C-5000 Series Only)

    ④ After adding the accounts and running the program, following screen appears, enter user ID and Password to proceed. ※ NOTE: After registration, do not forget the ID and Password. PAC-5000A/5600...

  • Page 7: Preferences (Environment) Setting

    Basic Environment Setup Menu. • The configuration start-up screen. Click “Start Environment Setup” button to start. • Select Serial communication port. COM1 is recommended, use COM2 if COM1 is being used or is not working. • Click [NEXT >] button to proceed. PAC-5000A/5600...
  • Page 8 PC is connected to the Server from remote location, select “Client” and input IP numbers and port number (recommended 2000). • Click [NEXT >] button. • Click the “Save Environment” button, configuration is now complete. • Please restart the program once the configuration is completed. PAC-5000A/5600...
  • Page 9 • Close: Closes the window. NOTE: If ID/PW are lost/forgotten, please contact appropriate customer support team. ③ Equipment Setup Set the total number of connected devices. ④ Serial Port Setup Set Serial Communication port. ⑤ Server / Client Setup Set (Server/Client) type. PAC-5000A/5600...
  • Page 10 ⑥ Zone Name Setup For each (MASTER/SLAVE 1~4) area names can be entered. Select the equipment (MASTER/SLAVE 1~4) enter the name and click the [Save] button to apply. ⑦ RM Macro Setup Screen for setting the Broadcast Area of macro RM Zone. PAC-5000A/5600...
  • Page 11 - Clicking [Download / Save] button will apply macro setting to the equipment. - Click the [Cancel] button to close the window. ※ If [Cancel] button is clicked before clicking [Download / Save], set macro information will NOT be applied to the equipment. PAC-5000A/5600...
  • Page 12 - Clicking [Download / Save] button will apply macro setting to the equipment. - Click the [Cancel] button to close the window. ※ If [Cancel] button is clicked before clicking [Download / Save], set macro information will NOT be applied to the equipment. PAC-5000A/5600...

  • Page 13: Screen Configuration And Program Functions

    Controls Speaker ZONE, FUNCTION, Volume, Chime & Siren etc. - Click meter level using the mouse cursor to adjust the volume. To control both group A and B at the same time, click the Sync (AB) button between A and B meter level to activate. PAC-5000A/5600...

  • Page 14: Pc Reserved Broadcast Settings

    ⑤ Network Status Icon Displays the network connection status of the PC. Click the icon to connect or disconnect. - Program connected to PAC-5000A is Server and program that connects from remote location is Client. - Icon Status Description ▶ Server Program.
  • Page 15 Ⓒ Select a Day to broadcast. Ⓓ Enter the broadcast start time. (Use ▲/▼ buttons to change AM/PM) Ⓔ Select the broadcast Speaker ZONE. Ⓕ Click the Add button to set the scheduled content . Scheduled broadcast will begin at the set time. PAC-5000A/5600...
  • Page 16 Scheduled broadcast can only be deleted in [STOP] state. If scheduled broadcast is in process click [STOP] button and set as follows. Ⓐ Select the content to delete using the mouse. Ⓑ Click [Delete] button to display confirmation window. Ⓒ Click [Yes(Y)] button to delete the selected setting. PAC-5000A/5600...
  • Page 17 Scheduled broadcast can only be modified in [STOP] state. If scheduled broadcast is in process click [STOP] button and set as follows. Ⓐ Click the content to modify. Ⓑ Modify the content. Ⓒ Click [Modify] button to set modified content. PAC-5000A/5600...
  • Page 18 DIGITAL PA COMBINATION SYSTEM IV.4 Run Reserved Broadcast Ⓐ After setting the reserved broadcast, clicking the [RUN] button will operate with configured information. PAC-5000A/5600...
  • Page 19 Ⓐ During the reserved broadcast, clicking [STOP] button will stop the broadcast. Ⓑ If the [STOP] button is clicked during non-reserve broadcast, Ⓑ screen is displayed. If [Yes(Y)] button is clicked, set scheduled broadcast function will not work. Click the [RUN] button to operate the scheduled broadcast again. PAC-5000A/5600...

  • Page 20: Eq Setting

    Set the EQ setting as shown below. ① Select the group to EQ set control. ② Set the EQ of the selected group. ③ Set EQ settings can be added to preset and also can [ADD] or [DEL] delete presets. PAC-5000A/5600...

  • Page 21: Server / Client Pc Utilization

    • PC that runs the Server program is set as “Server”. • PC that runs Client program is set as “Client” and IP and PORT numbers of access/connect PC must be entered. (Access/connect PC is the PC running the Server program.) PAC-5000A/5600...
  • Page 22 Clicking the icon once more will allow connection. To reconnect, icon must be clicked from a PC set as Client. - Program ends when the window is closed. ※ Note: If communication is interrupted/terminated due to a physical causes, shut down the program and restart. PAC-5000A/5600...

  • Page 23: Remote Control Via The Internet (P C-5600 Only)

    ㄴ. Set the computer’s network in order to communicate with the device and to each other. ※ If the computer’s wireless network is turned on, turn it off and proceed. ※ Please download the latest version of the manual as manual may change depending on the firmware version. (www.inter-m.com) PAC-5000A/5600...
  • Page 24 Browser version 6.1 or higher. ㄹ. After connecting, a pop-up window will appear asking for access password. Input as shown below. - ID: admin - Password: 1 ※ For security reasons, the equipment should be used only after a change of password. PAC-5000A/5600...

  • Page 25: Common Screen

    ① Name of the device connected to the web is displayed. ② Set the language of the web page. ③ Displays the information of web connected device. (Device Name/Device IP/Web Version) ④ Menu available from the web page. ⑤ Corresponding screen is displayed when menu is selected. PAC-5000A/5600...

  • Page 26: Ii.1 Front (Front Panel)

    ① Can control front panel functions from a web page. ② When multiple devices are connected, select the device to control the Zone status. Unconnected State Connected State Controllable State ③ [Front] (Front Panel) Help & Tips are displayed. PAC-5000A/5600...

  • Page 27: Ii.2 Volume

    ② Selected from ①, set ZONE A Volume level (0 ~ 48). ③ Selected from ①, set ZONE B Volume level (0 ~ 48). ④ Selected from ①, set ZONE A, B Volume levels (0 ~ 48) at the same time. ⑤ [Volume] Help & Tips are displayed. PAC-5000A/5600...

  • Page 28: Ii.3 Eq (Equalizer)

    ※ When adding preset, preset name cannot have (space) or be a duplicate name. ③ Delete the added preset. ④ Set the EQ (Equalizer) values (-12dB ~ 12dB) in Zone A. ⑤ Set the EQ (Equalizer) values (-12dB ~ 12dB) in Zone B. ⑥ [EQ] Help & Tips are displayed. PAC-5000A/5600...

  • Page 29: Ii.4 Network Setup

    ③ Can see the network configuration settings of the device and also set the desired information. ④ Click [Apply] button to apply the modified information from steps ② and ③. ⑤ Click [Initialize] button to reset the modified information from steps ② and ③. ⑥ [Network Setup] Help & Tips are displayed. PAC-5000A/5600...

  • Page 30: Ii.5 Rm Macro Setup (Remote Microphone Macro Setup)

    ⑤ Click [Data Initialization] (Macro Initialization). All configured information from steps ①~④ will reset. ⑥ Click [Apply the data] (Macro Apply). All configured information from steps ①~④ will be applied. ⑦ [RM macro Setup] (Remote Microphone Macro Setup) Help & Tips are displayed. PAC-5000A/5600...

  • Page 31: Ii.6 Fire Macro Setup

    ⑤ Click [Data Initialization] (Macro Initialization). All configured information from steps ①~④ will reset. ⑥ Click [Apply the data] (Macro Apply). All configured information from steps ①~④ will be applied. ⑦ [Fire Macro Setup] Help & Tips are displayed. PAC-5000A/5600...

  • Page 32: Ii.7 Em Mic Macro Setup

    ② Click [Select All]. All broadcast area is selected. ③ Click [Release All]. All broadcast area is deselected. ④ Click [Apply the data] (Macro Apply). All configured information from steps ①~④ will be applied. ⑤ [EM Mic Macro Setup] Help & Tips are displayed. PAC-5000A/5600...

  • Page 33: Ii.8 Schedule Setup

    ② Add a schedule broadcast [Add] (max 50), [Delete], [Modify] and display the result in a table format. ③ Add holiday periods (max 30), and also delete. ④ Download or upload set schedule information. ⑤ Download or upload set holiday information. ⑥ [Schedule Setup] Help & Tips are displayed. PAC-5000A/5600...
  • Page 34 ① Enter the name of the scheduled broadcast. ② Set the time of the scheduled broadcast. ※ If the audio source is from the PC audio, time can be set. ③ Set the day of the scheduled broadcast. PAC-5000A/5600...
  • Page 35 ① The stored broadcast schedule list is displayed. Check/Click the schedule of broadcast to delete from the list. ② Click [Delete] Checked item(s) from step ① will be deleted from the list. ③ Click [Select All] Entire list of scheduled broadcast will be deleted. PAC-5000A/5600...
  • Page 36 ① Stored schedule data list is displayed and selected data can be modified. ② Enter the name of the scheduled broadcast. ③ Set the time of the scheduled broadcast. ※ If the audio source is from the PC audio, time can be set. ④ Set the day of the scheduled broadcast. PAC-5000A/5600...
  • Page 37 ※ If the source type is PC audio, the source file name information is not displayed. ③ Clicking the mouse will display the area information of the schedule. ④ Time information of the schedule is displayed. ⑤ Day information of the schedule is displayed. PAC-5000A/5600...
  • Page 38 Above is the screen that appears when [Delete] button is clicked in [Holiday] setting screen. ①Stored holiday list is displayed. Check/Click the holiday data to be deleted from the list. ② Click [Delete] to delete the checked holiday data from step ①. ③ Click [Select All] to delete the entire holiday data displayed. PAC-5000A/5600...

  • Page 39: Ii.9 File Manage (File Management)

    ① Files that can be used for time schedule is displayed. If there is a file to delete, select the file and click Delete button to delete. ② Can upload a new file and the disk capacity is displayed. ③ [File Manage] (File Management) Help & Tips are displayed. PAC-5000A/5600...

  • Page 40: Ii.10 Time Setup (Time/Date Setup)

    Can set periodic time to synchronize the clock. (ex: If set for 15:00 hour, at every 3:00pm, synchronization sets the time on the device.) ④ Click [Apply] button to apply the set time. ⑤ [Time Setup] Help & Tips are displayed. PAC-5000A/5600...

  • Page 41: Ii.11 View Log

    Above is a screen display when [View Log] menu is clicked. ① Logs generated during the operation are displayed. ② Click [Refresh] button to reload the log. ③ Click [Clear Log] button to clear the log information. ④ [View Log] Help & Tips are displayed. PAC-5000A/5600...

  • Page 42: Ii.12 Upgrade System

    ※ S/W Upgrade extensions: .tar.gz ※ Mainboard Upgrade extensions : .bin ② Click [Apply] button to upgrade the selected file to the device. ③ Click [Initialize] button to reset the file selected in step ①. ④ [Upgrade System] Help & Tips are displayed. PAC-5000A/5600...

  • Page 43: Ii.13 Restart System

    DIGITAL PA COMBINATION SYSTEM II.13 Restart System ① ② Above is a screen display when [Restart System] menu is clicked. ① Click [Apply] button to restart the system. ② [Restart System] Help & Tips are displayed. PAC-5000A/5600...

  • Page 44: Ii.14 Factory Set System

    DIGITAL PA COMBINATION SYSTEM II.14 Factory Set System ① ② Above is a screen display when [Factory Set System] menu is clicked. ① Click [Apply] button to set back to factory default settings. ② [Factory Set System] Help & Tips are displayed. PAC-5000A/5600...

  • Page 45: Ii.15 Password Change

    ① Enter the current password. ② Enter new password. ③ Enter new password once more. ④ Click [Apply] button to change to new password. ⑤ Click [Initialize] button to reset the newly entered password. ⑥ [Password Change] Help & Tips are displayed. PAC-5000A/5600...
  • Page 46 NOTE PAC-5000A/5600...
  • Page 47 PAC-5000A/5600...
  • Page 48 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
