  • Page 1 Operation anual Digital P Combination System P C-5600IRQ...
  • Page 2 Welcome personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    1. Before Using the System......................17 2. System Operation........................17 3. FM Tuner Operations.........................18 4. MEDIA (CD/USB/DRP) Operation ....................19 5. Add-on Operation Methods .......................23 Connections ...........................31 Block Diagram ..........................32 Specifications ..........................33 Service Procedures............................35 Schematic .............................35 Parts List ............................35 Variations and Options .......................35 Warranty ............................35 PAC-5600IRQ...

  • Page 4: Unpacking

    DIGITAL PA COMBINATION SYSTEM Unpacking Unpacking Although your PAC-5600IRQ is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.

  • Page 5: Features

    Maximum of four remote MICs can be connected to one unit of the system, and with installation of key pad one of the four units can be used up to maximum of 120 channels. - BUILT IN MONITOR SPE KER One can monitor the broadcast content with a built-in monitor speaker. PAC-5600IRQ...
  • Page 6 - B TTERY CHECK FUNCTION Check the condition of the battery. - NETWORK UDIO STRE MING FUNCTION Through Network, all the audio sources of AUDIO SERVER(PAC-5600IRQ) can be transmitted to LOCAL ZONE(PSI-5240IRQ) - ST ND LONE FUNCTION Without a PC, reserved broadcast, audio streaming. Time and IP setting are available.

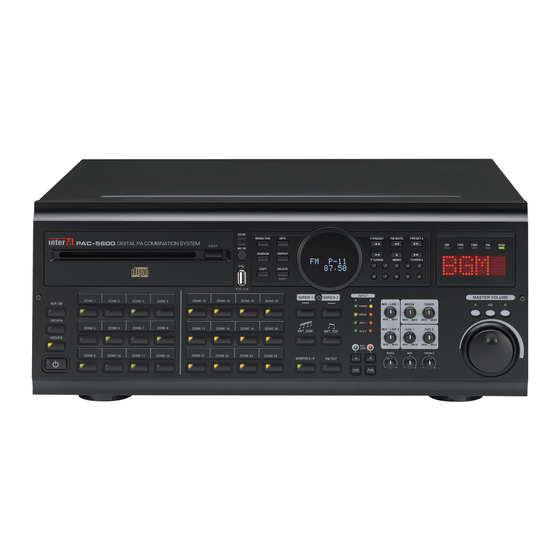

  • Page 7: Front Panel

    The Button is used to monitor Speaker Outputs of Group A or B. 2) Hold the button down to change the output level (Low/High). 7. CHIME SELECT BUTTON ※Note: MIC Function must be on to run a chime. 4 Scale or 2 Scale chime button, useful before and after the broadcast. PAC-5600IRQ...
  • Page 8 Terminal is to connect the USB. MP3/WMA files can be played and can also COPY the files from USB to DRP. 19. EMERGENCY MIC (EM MIC) ND OPER TION SWITCH (MIC SW) Built-in condenser microphone is used for EM (Emergency Broadcast) during FIRE. In EM mode, hold down the (MIC SW) to operate. PAC-5600IRQ...
  • Page 9 - In TUNER Mode, used to seek stations. Press once to move one step or press and hold to tune automatically. 30. ■ (STOP) / MEMO BUTTON - MEDIA (CD/DRP/USB) Stop Play. - MEMO: In TUNER Mode, used to store stations in Memory. PAC-5600IRQ...
  • Page 10 Number buttons are used to enter numbers to search for tracks and to enter radio frequencies. 32. SYSTEM OPER TION INDIC TOR Displays the system operations such as Emergency Broadcast (EM), Fire (FIRE), reserved broadcast (PC), remote microphone broadcast (RM) and general broadcast (BGM). PAC-5600IRQ...

  • Page 11: Rear Panel

    4. MP IN/OUT TERMIN L External amplifier input terminals are located in the back of the unit when separate/additional power ※ Note: When using built-in amplifier, input/output terminals must be connected to each other. amplifier is needed. PAC-5600IRQ...
  • Page 12 - PD (Power Distributor) It is used to control power distributor remotely. By connecting to the remote control terminal of the PD, contact output is made when there is a signal output in any speaker zone, regardless of broadcasting mode (EM/Normal) PAC-5600IRQ...
  • Page 13 The switch is used to turn On and Off the AC power. 12. POST OUTPUT Terminal (POST-OUT /B) Terminal is used to record sound from this unit and to connect to an external amplifier. 13. SERVICE TERMIN L Used for maintenance/service of the unit. PAC-5600IRQ...
  • Page 14 Contact input terminals working in conjunction with fire receiver to output a fire emergency broadcast. Each area has 3 input terminals to configure a group of upper, lower and or ground floor. (Emergency Broadcast sound source is stored in SD memory card.) PAC-5600IRQ...
  • Page 15 Balanced Audio Output - HOT Balanced Audio Output - COLD ※ Note: When system is in SLAVE MODE, remote MIC function cannot be used. - RM1 of RM1-RM4 terminal can be expanded up to 120 locations with optional KEYPAD (RM-6012KP). PAC-5600IRQ...
  • Page 16 Terminal to receive the sound source and control signals from previous system for system expansion. * PIN OUT Specification Pin No. Pin Name Functions GR-A-IN- Balanced Group-A-Cold GR-A-IN+ Balanced Group-A-Hot Ground GR-B-IN- Balanced Group-B-Cold GR-B-IN+ Balanced Group-B-Hot Ground CONTROL-A RS-485 Data-A CONTROL-B RS-485 Data-B PAC-5600IRQ...
  • Page 17 Multiple external source devices (CD, DECK, TUNER, etc.) can be connected and input volume adjustment is on the front panel. 26. REC OUT TERMIN L The terminal for recording the output of Group A,B to the external recording device. PAC-5600IRQ...
  • Page 18 The terminal to receive audio signals from PC for playback in reserved broadcast. 28. FM NTENN TERMIN L (FM NT) Use the FM antenna supplied with the product, 75Ω coaxial cable can also be connected if the signal is weak and produces noise. PAC-5600IRQ...

  • Page 19: Operating Method

    • MIC broadcasting can be separate for Group A and Group B. • Press the MIC/LINE button for a specific group to broadcast to. ☞ ➡ ※Note: For Chime operation, Group must be selected using the MIC/LINE button. • Before pressing the Chime button, adjust the input volume level properly. PAC-5600IRQ...

  • Page 20: Fm Tuner Operations

    • In EM (Emergency) mode press and hold EM TEST button to hear through the main and monitor speakers. 3) System Remote Control Method ※PC Program, Software MANUAL can be downloaded from (www.inter-m.com). Please refer to the SOFTWARE MANUAL. 3. FM TUNER Operation 1) How to Auto/Manual tune radio frequencies - Use either Group A or B input button to light the LED on TUNER.

  • Page 21: Media (Cd/Usb/Drp) Operation

    ※Note: IF the disc is in poor condition or is a non-playback format, disc will be ejected automatically. In this case it is not the system, please check the disc instead. Only the 12cm size disc can be used. 8cm size disc cannot be used. PAC-5600IRQ...
  • Page 22 - In stop mode press RANDOM and “RANDOM” is displayed. Press ▶II (Play/Pause) button to play in Songs are played in random order. random order. - Repeat playback is possible in REPEAT mode. - Press RANDOM button once more to cancel the mode. PAC-5600IRQ...
  • Page 23 USB source with playback order before using COPY function. - Press MEDIA FUN button to switch to DRP mode to verify the COPY content. - Pressing the ■ (Pause) button during COPY will stop the copy function and save only up to the last completed tracks. PAC-5600IRQ...
  • Page 24 TRACK. ➡ - FORMAT • In “FOLDER1” mode press ▶▶ (SEARCH UP) button to select the FORMAT as shown below. • After selecting FORMAT, press DELETE button, as shown below, and press DELETE to start the FORMAT ➡ PAC-5600IRQ...

  • Page 25: Add-On Operation Methods

    Set an IP address by pressing numbers on the pad and press I◀◀ / ▶▶I buttons to change IP address of other digits. - ▶ Press ⅠⅠ button and will be displayed for 3 seconds and set IP address will be saved. Once saved, user set IP address is displayed. PAC-5600IRQ...
  • Page 26 - Press or INFO button to go back to the initial screen. ※ To send audio while BGM is broadcasted, put PAC-5600IRQ on “SERVER ON“ mode. It is automatically switched to “SERVER ON“ when EM, FIRE, RM, TIMER is broadcasted.
  • Page 27 • Push INFO button and push I◀◀ / ▶▶I button to select “BATTERY CONFIRM”. • At “BATTERY CONFIRM” push ▶II button and “BATT” will flash and start the CONFIRM process. • When the operation is complete, it will display “CONFIRM OK” and if process failed, “CONFIRM ERROR” will be displayed. PAC-5600IRQ...
  • Page 28 - Use ▶II button to select “BAT AUTO ON/OFF”. (Default is BAT AUTO OFF) (Default is BAT AUTO OFF) ⬅➡ - BAT AUTO ON: It automatically checks the battery once in 10 minutes. • If battery is not connected or malfunctioning, contact signal is output form FAULT OUT A and B terminal. PAC-5600IRQ...
  • Page 29 ※ Default setting is TIMER OFF. 10) TIMER LIST Checking Function - This function is to check currently set TIMER LIST. - Press INFO button and press I◀◀ / ▶▶I button to check “TIMER LIST”. - Without any reserved TIMER, shows on the screen. PAC-5600IRQ...
  • Page 30 - Return to the previous screen by pressing button and not save the reserved date. - Return to the initial screen by pressing INFO button and not save the reserved date. PAC-5600IRQ...
  • Page 31 - Return to the previous screen by pressing button and not save the reserved date. - Return to the initial screen by pressing INFO button and not save the reserved date. On the left screen, With I◀◀ / ▶▶I button and PAC-5600IRQ...
  • Page 32 14) System Initialization Reset the IP address and web page settings. - IP default value: 192.168.1.99 - For web page settings, reservation broadcast, please refer to the SOFTWARE MANUAL for more details. - Although system is initialized, current time remains unchanged. PAC-5600IRQ...

  • Page 33: Connections

    DIGITAL PA COMBINATION SYSTEM Connections Connections PSI-5240IRQ CD-6208 CD-6208 PAC-5600IRQ (MASTER) PAC-5600IRQ (SLAVE) RM-6024 RS-232 (PAC-5000A) NETWORK (PAC-5600) SD CARD A SD CARD B MAIN POWER FAULT OUT REMOTE MIC (RM-6024) LINK NETWORK B COM ADDRESS ID FM ANT RM 1...

  • Page 34: Block Diagram

    DIGITAL PA COMBINATION SYSTEM Block Diagram Block Diagram PAC-5600IRQ...

  • Page 35: Specifications

    Frequency Characteristics (20kHz LPF) -3±3dB 12kHz OUTPUT LEVEL ( UX IN, INPUT -10dB/1kHz) REC OUT -10 ± 3dB POST OUT 0 ± 3dB PC CONTROL INTERF CE Data Transmission Method 10/100 Base- Tx Transmission Distance 500M Cable Type Category 5 UTP Cable PAC-5600IRQ...
  • Page 36 AC 100–240V, 50/60Hz, DC 24V Power Consumption (1/8W) 135W Weight (SET) 11.2kg/24.7lb Dimension (SET) 440(W)×177(H)×380(D)mm/17.3(W)x 7(H) x 14.96(D) in * Design and specification are subject to be changed for the improvement of product quality without pre notice. ※ DIMENSIONS PAC-5600IRQ...

  • Page 37: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 38 NOTE PAC-5600IRQ...
  • Page 39 PAC-5600IRQ...
  • Page 40 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
