Chapter 2

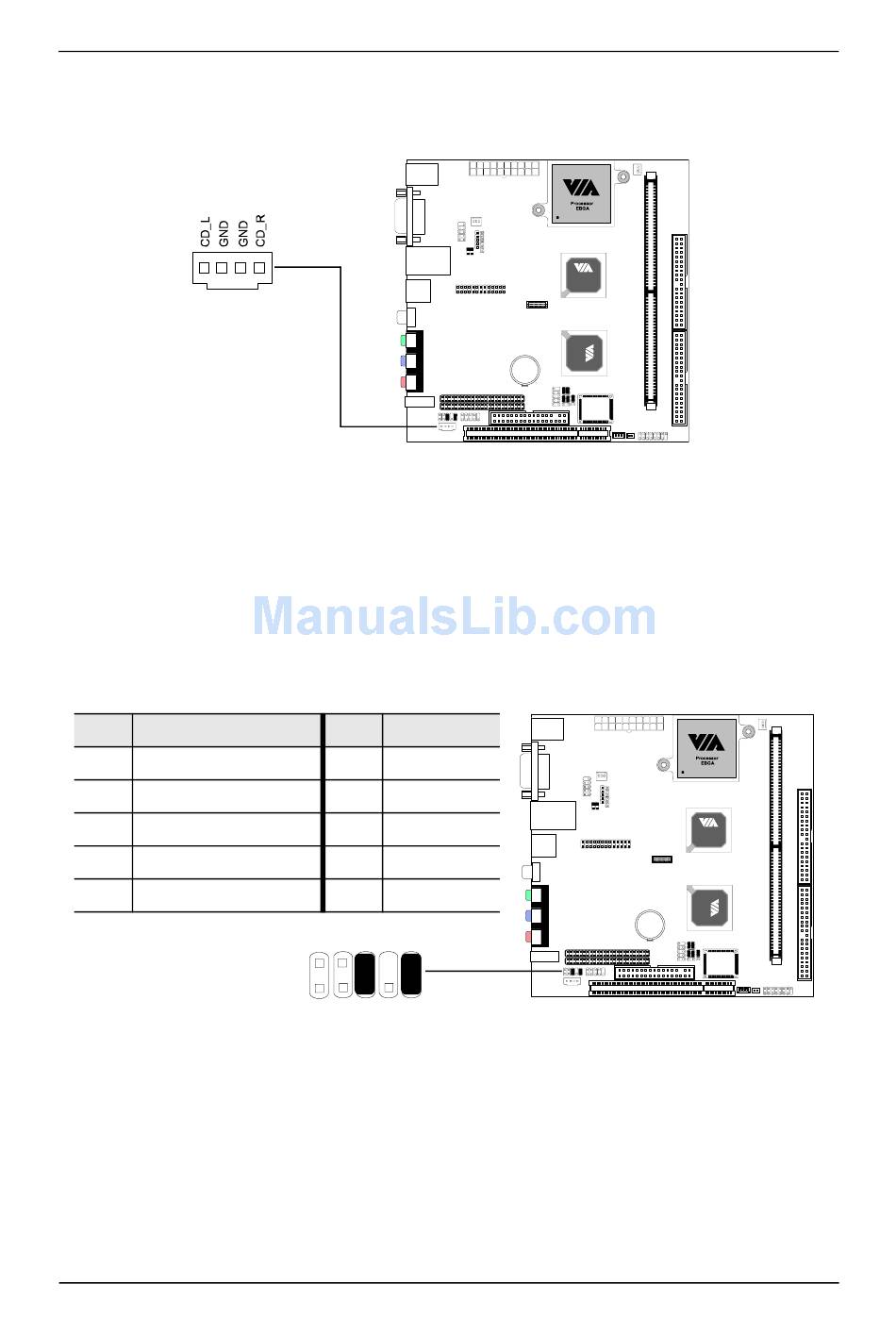

CD Audio Connector: CD_IN
This connector is for the CD-ROM audio connector.
CD_IN
Front Audio Panel: F_AUDIO
This connector allows you to connect a front audio panel to the mainboard.
Only the line-out and microphone functions are available for use on the front
panel. To connect the front audio cable, first remove the two red plastic
jumpers.
Pin
Signal
1
FRN_MIC
3
AUD_MIC_BIAS 4
5
LINE_OUT_R
7
NC
9
LINE_OUT_L
Pin
Signal
2
AGND
+5V
6
NEXT_R
8
Blank
10
NEXT_L
2
10
1
9
F_AUDIO
2-16
CLE266
CLE266
