Chapter 2

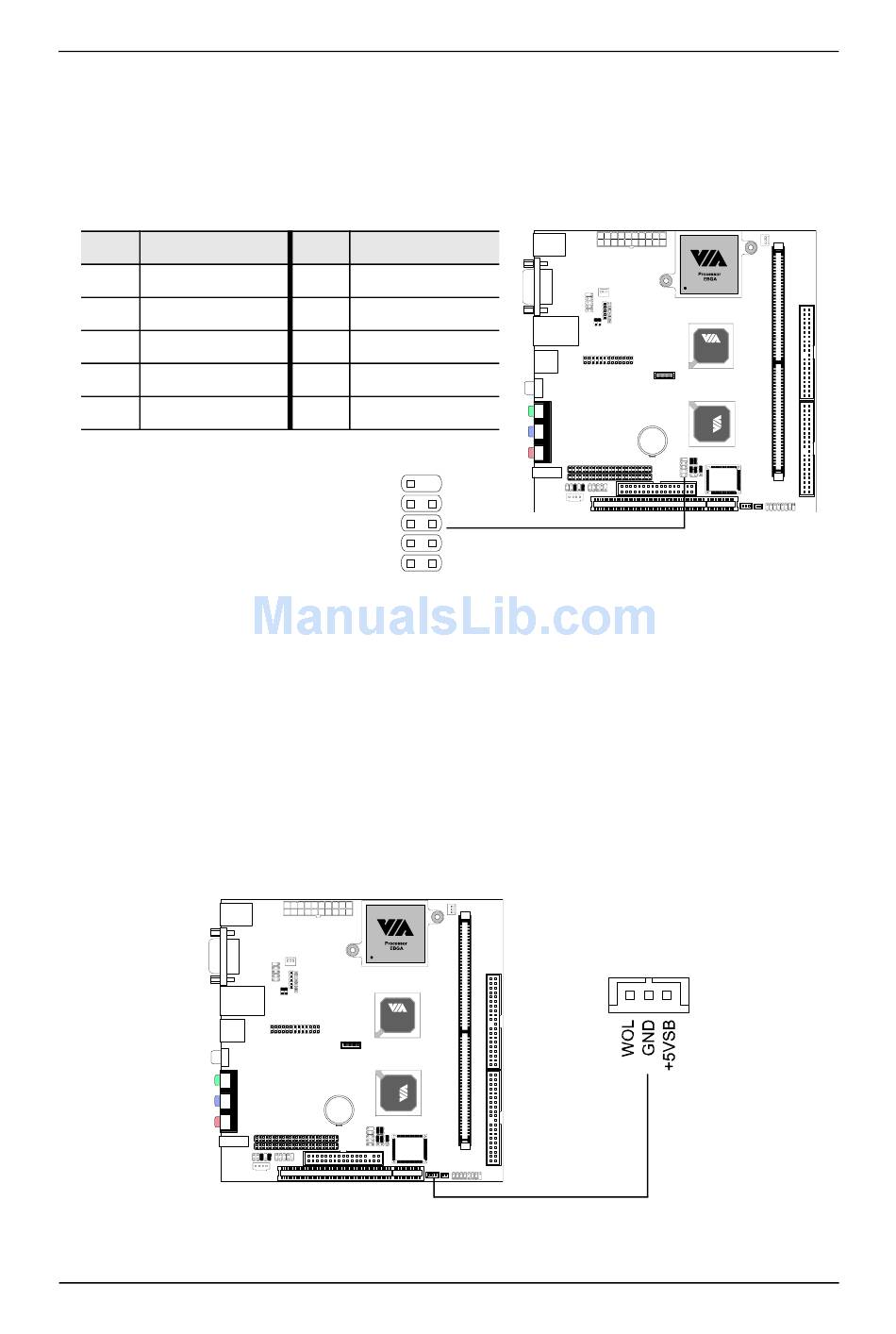

USB pin-header: USB3/4
The mainboard provides 1 USB pin-header connector, allowing up to 2
additional USB ports. Please plug the USB 2-port module onto this pin-
header.
Pin
Signal
1
VCC
3
USB2 -
5
USB2 +
7
GND
9
NC
Wake-on LAN: WOL
This connector allows you to connect a network card with the Wake-On
LAN function. The connector will power up the system when a signal is
received through the network card. Please note that the function of ACPI
WOL may be disabled when users unplug the power cord or turn off the
power button manually.
Pin
Signal
2
VCC
4
USB 3 -
6
USB 3 +
8
GND
10
GND
10
9
2
1
USB 3/4
CLE266
2-14
CLE266
WOL
