Chapter 2

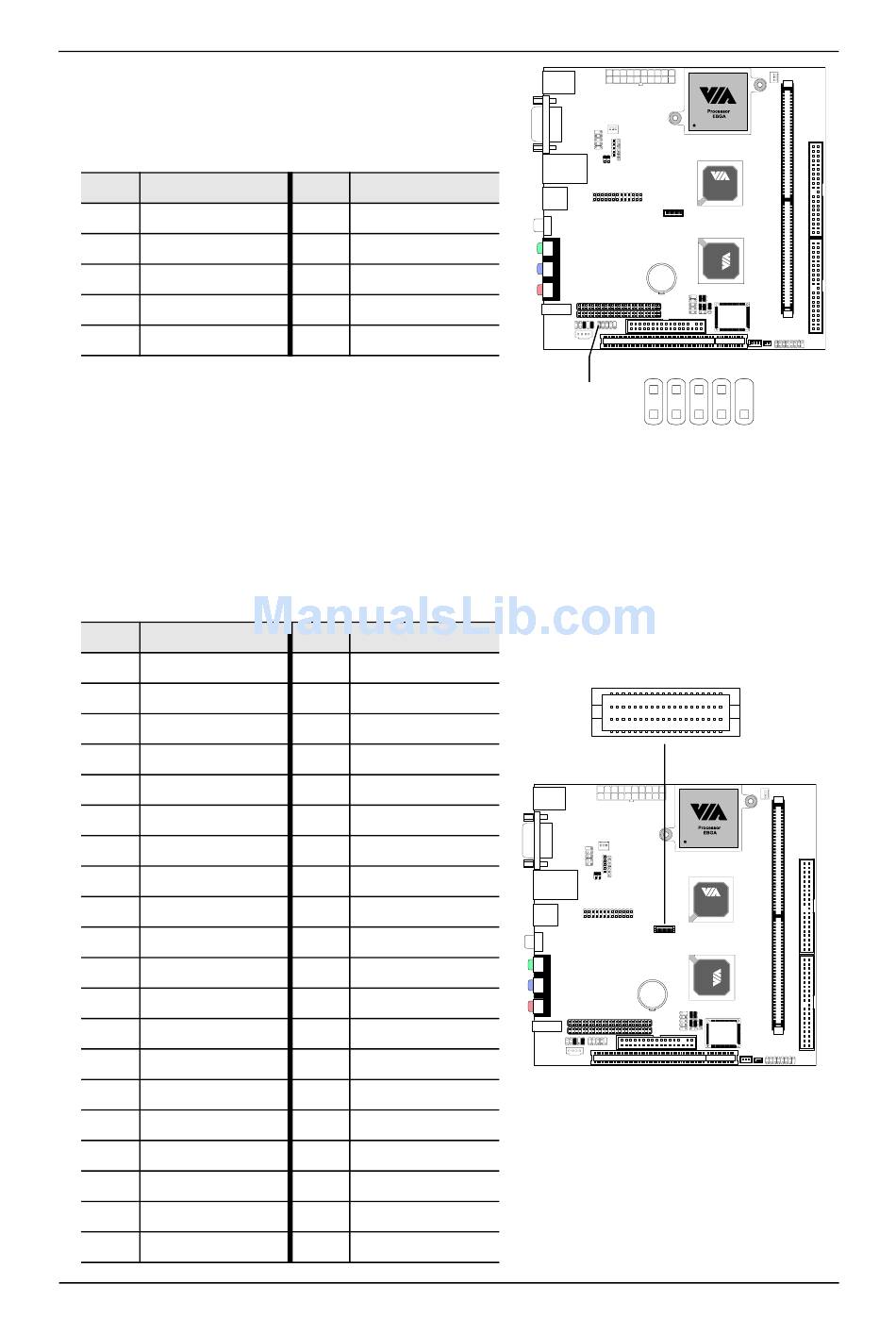

1394 Port Connector: 1394_2
The mainboard provides a connector to
attach an additional 1394 port.
Pin Signal
1 TPA0+
3 GND
5 TPB0+
7 1394_VDD
9 GND

LVDS Connector (Optional)

This connector allows you to connect to a LVDS module.
The LVDS connector may not be available on your mainboard. This is an
option that is added during the manufacturing process. If you would like a
mainboard with the LVDS connector, please contact your vendor or sales
contact for more information.
Pin Signal
1 GFPDE
3 GFPD0
5 GFPD1
7 GFPD2
9 GFPHS
11 GFPVS
13 GFPD11
15 GFPD12
17 ENPVDD
19 ENPVEE
21 FPBKLP
23 PWRGD_SB
25 SPCLK2
27 SPD2
29 GND
31 GND
33 3.3V
35 GND
37 5V
39 5V
Pin Signal
2 TPA0-
4 GND
6 TPB0-
8 1394_VDD
10
Pin Signal
2 GFPD3
4 GFPD4
6 GFPD5
8 GFPCLK
10 GFPD6
12 GFPD7
14 GFPD8
16 GFPD9
18 GFPD10
20 GFPD13
22 GFPD14
24 GFPD15
26 GFPD16
28 GFPD17
30 GFPD18
32 GFPD19
34 GFPD20
36 GFPD21
38 GFPD22
40 GFPD23
2-18
CLE266
2
1394_2
1
LVDS
CLE266
9
