ASSEMBLY AND INSTRUCTION MANUAL (EN)
Series: Oil
Please read the instructions carefully before use. Take good care of this manual for later use.
This assembly and instruction manual applies to the following products:
AB-H700MINI, AB-H1000DN, AB-H1500DN, AB-H2000DN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB-H700MINI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MILL AB-H700MINI

Summary of Contents for MILL AB-H700MINI

  • Page 1 ASSEMBLY AND INSTRUCTION MANUAL (EN) Series: Oil Please read the instructions carefully before use. Take good care of this manual for later use. This assembly and instruction manual applies to the following products: AB-H700MINI, AB-H1000DN, AB-H1500DN, AB-H2000DN...

  • Page 2: Important Safety Information

    Important safety information You must obey common safety guidelines when using electrical products, especially in the presence of children. WARNING! To avoid electric shock or damage due to the heat, always make sure the plug is pulled out before the heater is moved or cleaned.
  • Page 3 The device cannot be used by children under 8 years of age and persons with reduced physical or mental abilities or lack of experience and knowledge unless they have been given supervision or instruction in the safe use of the device and understand the hazards involved.

  • Page 4: Specifications

    STORE THIS INSTRUCTION MANUAL FOR FUTURE USE! NEVER TOUCH YOUR PANEL HEATER OR ITS CASING WITH WET HANDS! Specifications Model Thermostat Color Amperage Power (W) Mill Heat Boost AB-H700MINI Mechanical White ~230 V / 50 Hz AB-H1000DN Day/night White ~230 V / 50 Hz...

  • Page 5: Description Of The Heater

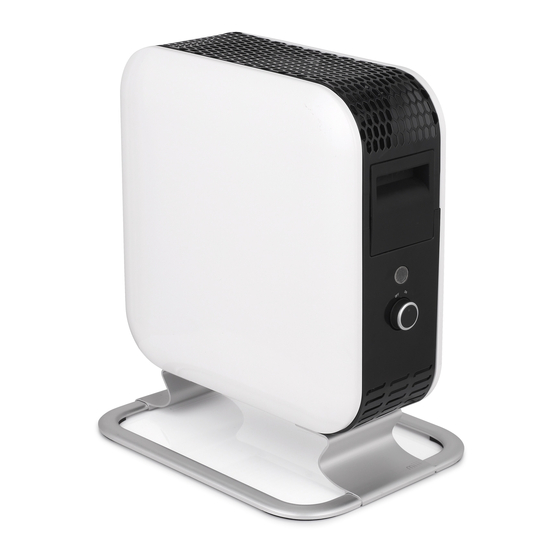

    Description of the heater Heat emission Heat emission LED display Indicator light Thermostat OFF/ON Output selector Legs (aluminum) OFF/ON Legs (aluminum) Parts  8 screws (4 of which are pre-mounted)  2 foot brackets  2 rails for the feet millheat.com...
  • Page 6 Assembly Insert both legs into the brackets so you get a stable foot (as shown in Picture 1 below). Attach the legs to the brackets by tightening 2 screws into each bracket (see the picture below). Remove the pre-mounted screws from the bottom of the heater and place the heater gently on its head to mount the feet.
  • Page 7 AB-H700MINI — Instructions Control panel for AB-H700MINI 1. Indicator light 2. OFF/ON WARNING: Be sure the foot is fitted correctly and according to the instructions before using the heater! Set the heater to OFF. Plug the heater into a grounded outlet.
  • Page 8 AB-H1000DN/1500DN/2000DN — Instructions Control panel for AB-H1000DB/1500DN/2000DN 1. Standby 2. Daytime setback 3. Nighttime setback 4. Power indicator — Shows whether the heater is using power or not 5. Desired room temperature 6., 7., 8. Indicates the output level 9. Timer function 10.
  • Page 9 Using AB-H1000DN/1500DN/2000DN 1. Plug the heater into a grounded outlet. 2. Press OFF/ON button. 3. Choose the desired power |, || or |||, by pressing the output selector. Turn the thermostat to the desired temperature while looking at the display. As soon as the room temperature drops below this level, the heater will automatically start again.

  • Page 10: Advanced Settings

    ADVANCED SETTINGS 1) Daytime setback When you want the heater to reduce the temperature during the day (set for weekdays from now on) press . . The display shows "d". Enter the correct weekday. (Monday = 1, Tuesday = 2, Wednesday = 3, Thursday = 4, Friday = 5, Saturday = 6, Sunday = 7).
  • Page 11 3) Change setback temperature — Daytime Press and hold and press 3 times. Enter the desired temperature for daytime setback. Save by pressing wait for 15 seconds for automatic confirmation. 4) Change setback temperature — Nighttime Press and hold and press 3 times.

  • Page 12: Temperature Calibration

    7) Cancel (skip) setback period Press and hold and press once (depending on which setback period you want to cancel). *The heater will skip an active setback period or the next setback period. *During the next setback period, the heater will automatically resume the programmed temperature reduction.

  • Page 13: Maintenance

    Local businesses (or the environmental station in your neighborhood) are required by law to accept and recycle such products, as a means of environmentally sound disposal. Mill International AS Grini Næringspark 12 1361 Østeras Tel.: +47 22 13 32 00...
