Back View
Figure 5
1
2

Touchscreen Placement

Place the touchscreen in a convenient location at eye level, typically near the entrance of the room,
approximately 57 to 61 inches (145 cm to 155 cm) from the floor (see
Consider the camera on the panel and the height of the people in the residence who will use the camera
Note
for video intercom.
OL-27263-01

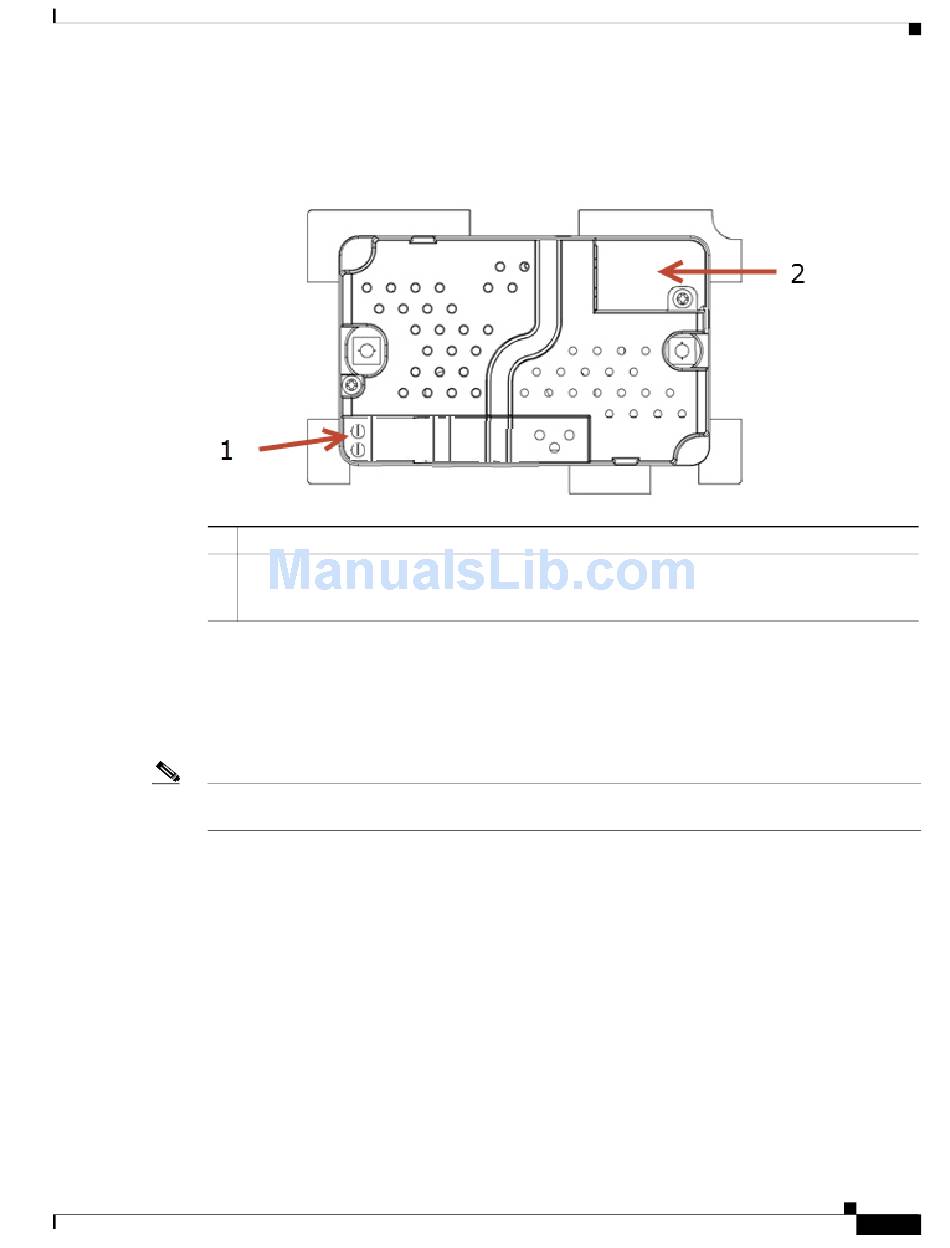

Back View with Camera and Power Box
Wire Connection. Hot (H) uses Black wire; Return (R) uses White wire.
RJ-45 port for Ethernet Connection. Ethernet port available for either a standard Ethernet source
that provides network communication only OR a PoE source that provides power to the device and
network communication.
Cisco Smart+Connected 7" In-wall Display Reference Guide
Touchscreen Placement
Figure 6).
7
